Features
WI-FI CONNECTIVITY
Monitor and control your cooktop or hood from anywhere.
FLEXIBLE COOKTOP
Whether you're boiling water, melting chocolate or simmering sauce, there's an element for your needs.

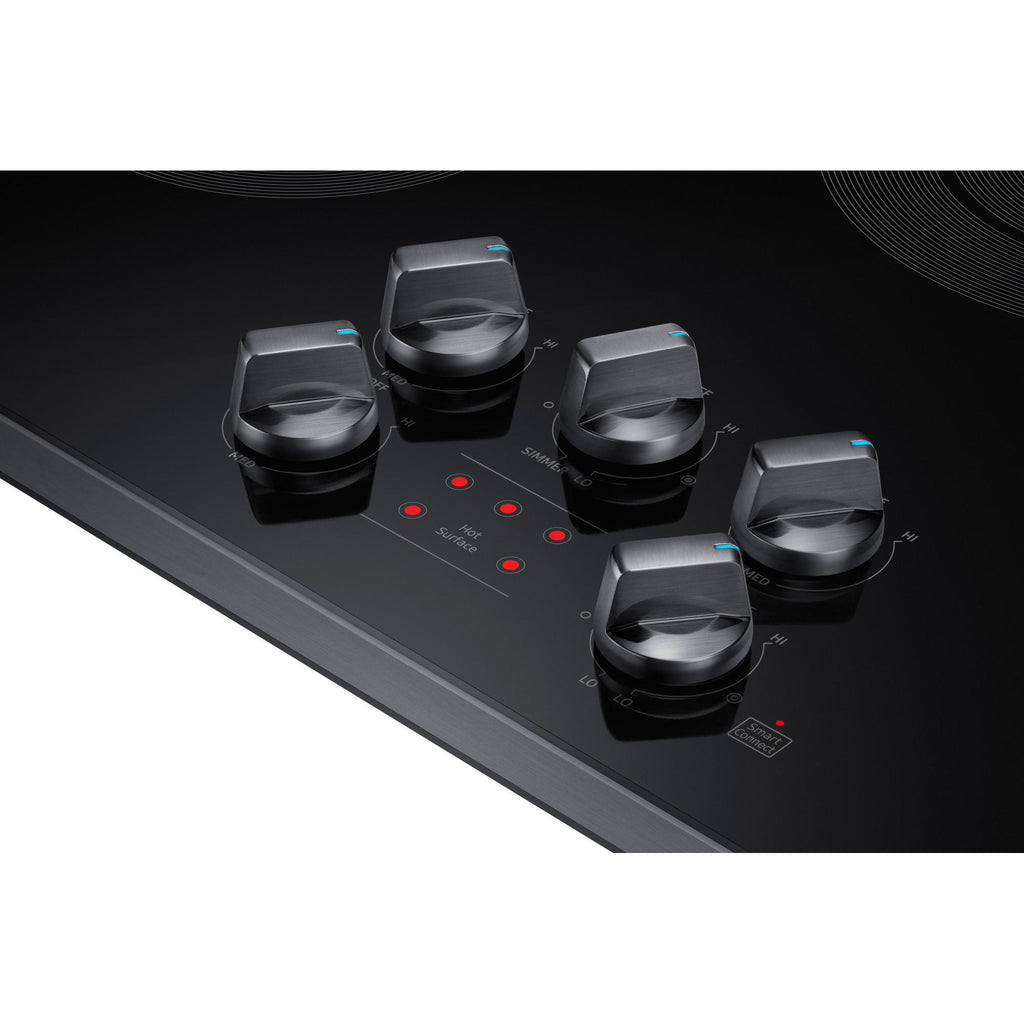

BLUE LED ILLUMINATED KNOBS
Visually lets you know when your cooktop is on, even from a distance.
RAPID BOIL
Up to 3.3 kW power element offers intense heat and precise control to quickly boil water or maintain a low even simmer.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front: 1,500 W
• Left Rear: 1,500 W
• Right Front: 2,000 W
• Right Rear: 1,200 W (Melt)
• Center: 3,300 W (Simmer to Rapid Boil™)
• Left Rear: 1,500 W
• Right Front: 2,000 W
• Right Rear: 1,200 W (Melt)
• Center: 3,300 W (Simmer to Rapid Boil™)
Burner/Element Size
7", 7", 8"/5", 6", 9"/6"
Elements
Smoothtop
Surface Features
Glass, Ceramic
Features
Wi-Fi
Yes
Clock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• WiFi Connectivity
• Flexible Cooktop: Rapid Boil™ Burner (3.3 kW), Two Dual Burners (9"/6" and 8"/5"), - Two Single Burners (7"), 9.5 kW Total Power
• Hot Surface Indicator Light
• Easy-To-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
• Rapid Boil™
• LED Illuminated Backlit Knobs
• Flexible Cooktop: Rapid Boil™ Burner (3.3 kW), Two Dual Burners (9"/6" and 8"/5"), - Two Single Burners (7"), 9.5 kW Total Power
• Hot Surface Indicator Light
• Easy-To-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
• Rapid Boil™
• LED Illuminated Backlit Knobs
Electrical Information
Information
240v
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
2.75 inch(es) / 6.99 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
35.69 lb(s) / 16.19 kg
Additional Dimensions
• Product Dimensions & Weight (WxHxD) Outside (Max) Cooktop Dimensions: 30" x 5 1/16" x 2 11/4"
• Cooktop Cut-Out Dimensions: 28 1/2" x 5 1/16" x 19 5/8"
• Shipping Dimensions & Weight (WxHxD) Dimensions: 34 3/16" x 8 1/2" x 25 1/16"
• Cooktop Cut-Out Dimensions: 28 1/2" x 5 1/16" x 19 5/8"
• Shipping Dimensions & Weight (WxHxD) Dimensions: 34 3/16" x 8 1/2" x 25 1/16"
Shipping Dimensions
Weight
48.5 lb(s) / 22 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
887276183312
