Features
LOW SIMMER BURNER
Perfect for delicate foods and sauces.
EVEN BAKING TECHNOLOGY
This latest technology ensures even baking every time.
STORE-MORE™ STORAGE DRAWER
The convenient drawer gives you extra storage space in your kitchen.
Additional Features

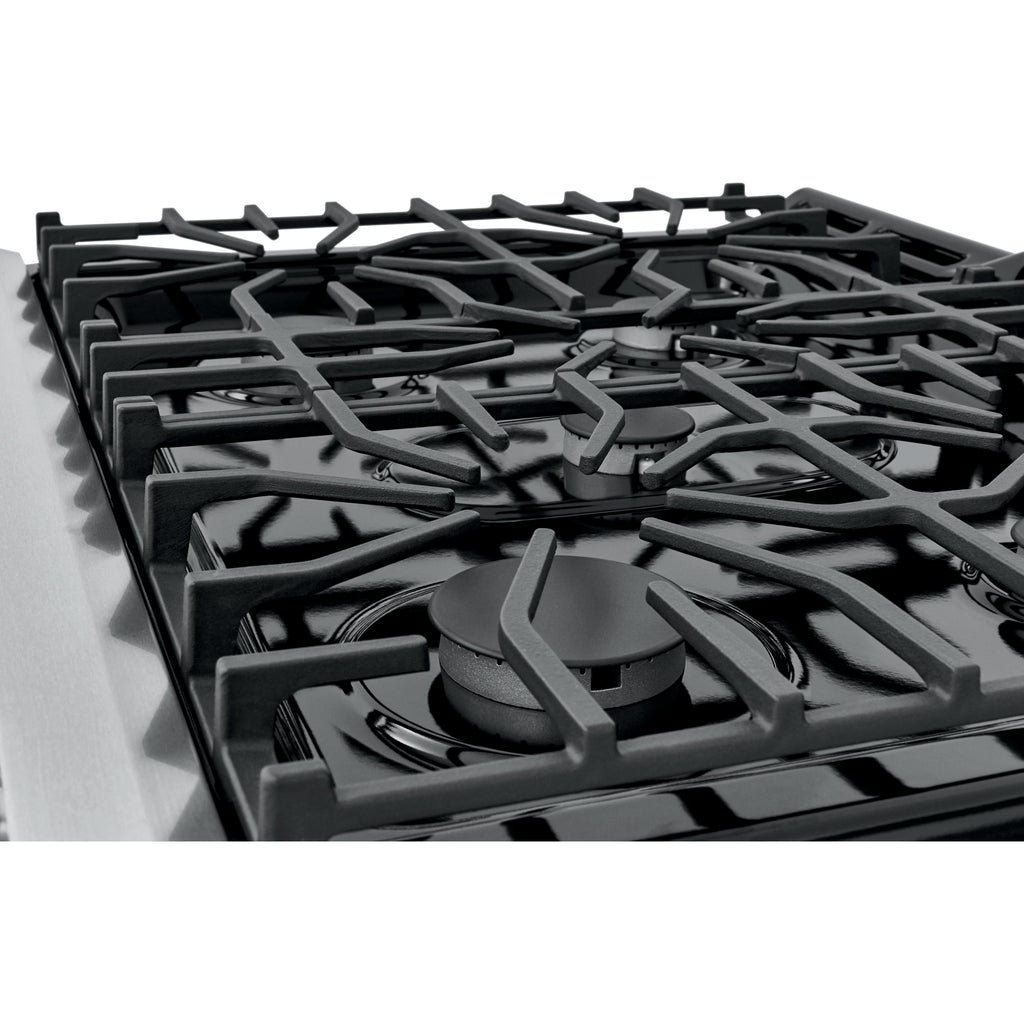

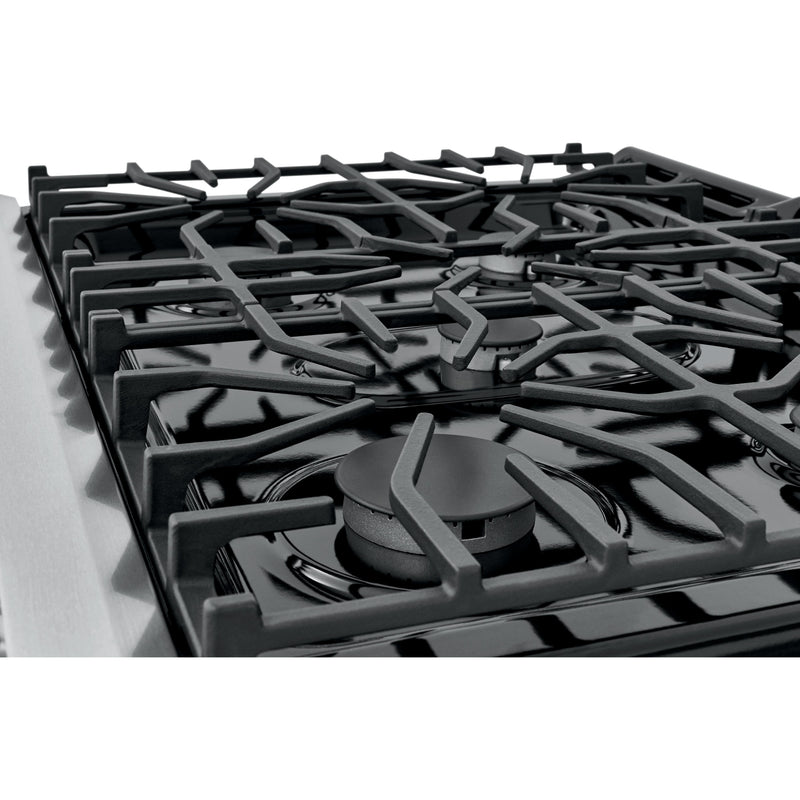

MATTE BLACK FINISH WITH CAST IRON GRATES
A premium finish to complement the durable burner grates.

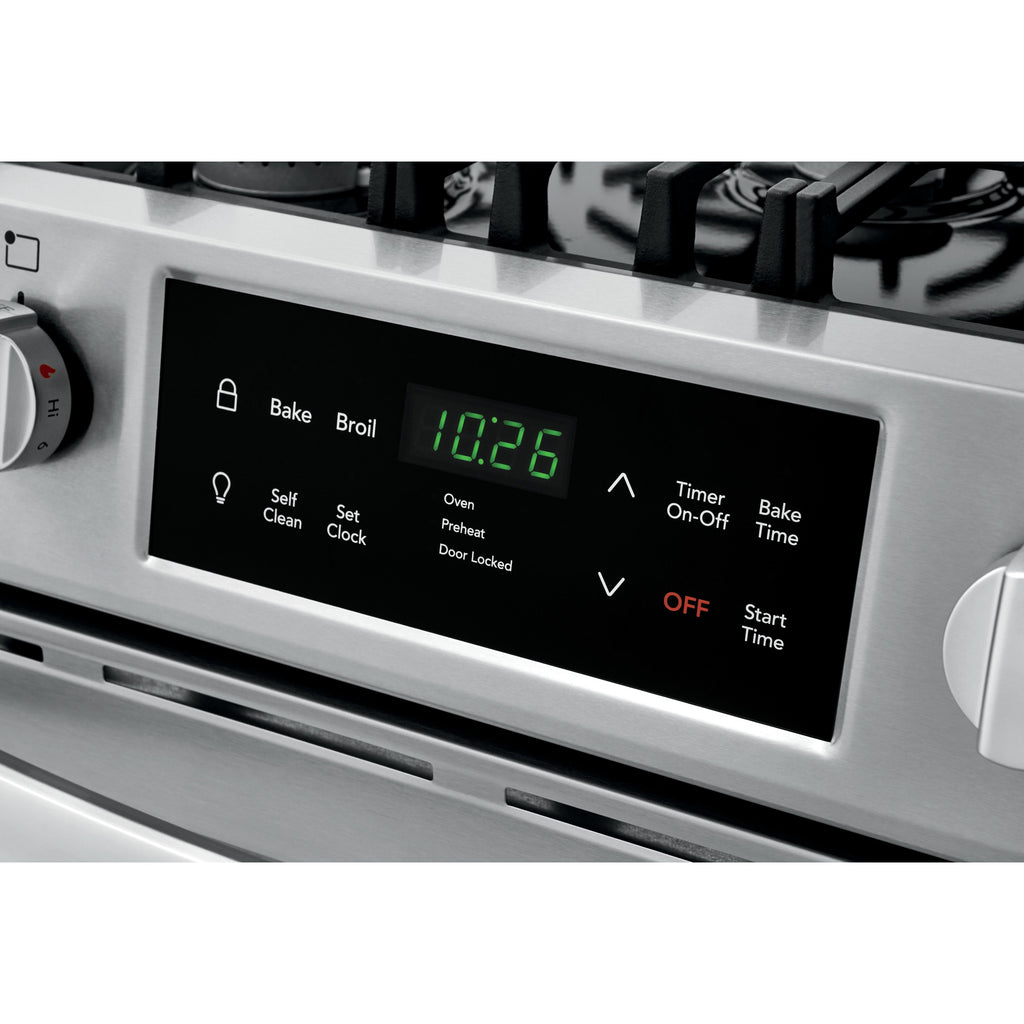

READY-SELECT CONTROLS
Easily select options with the touch of a button.
VARI-BROIL™
Vari-Broil™ temperature control allows you to choose between two heat levels(400F- 550F Degrees).
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel

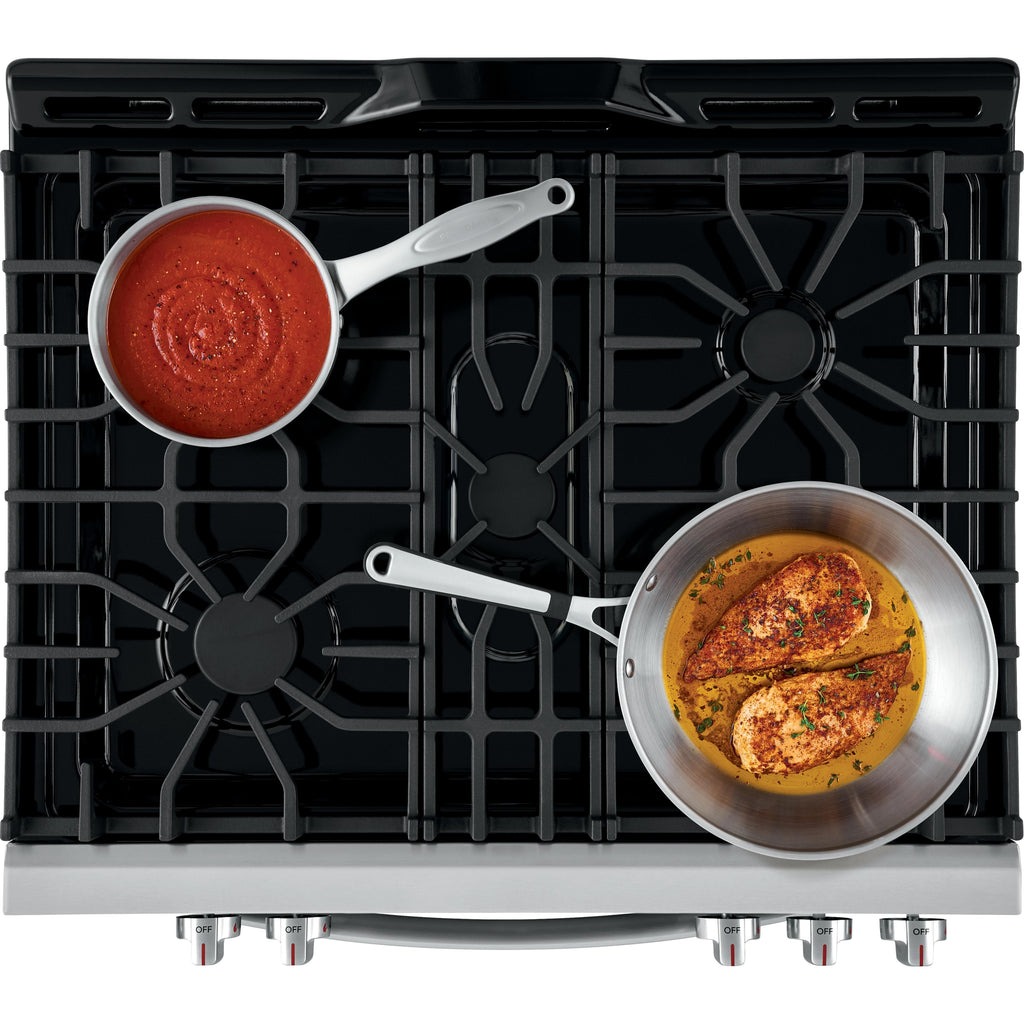

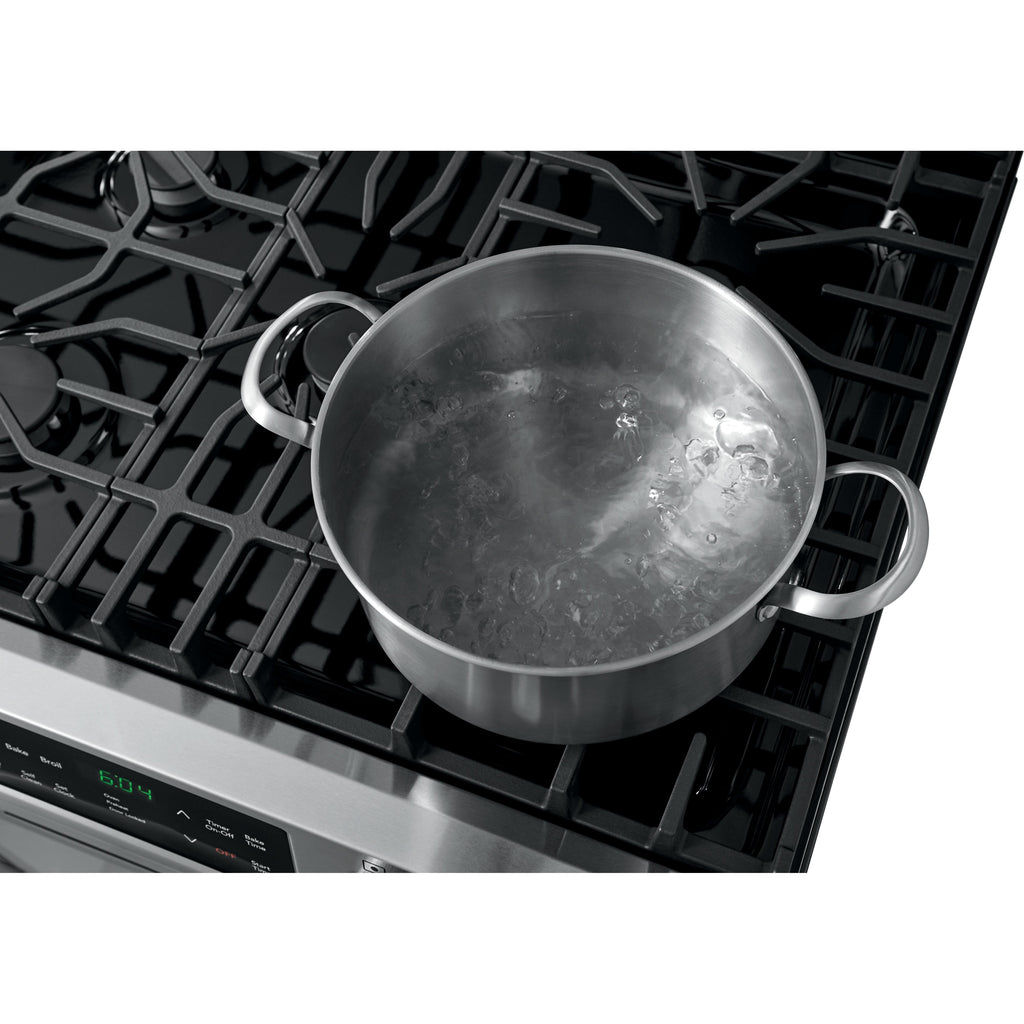

Cooktop

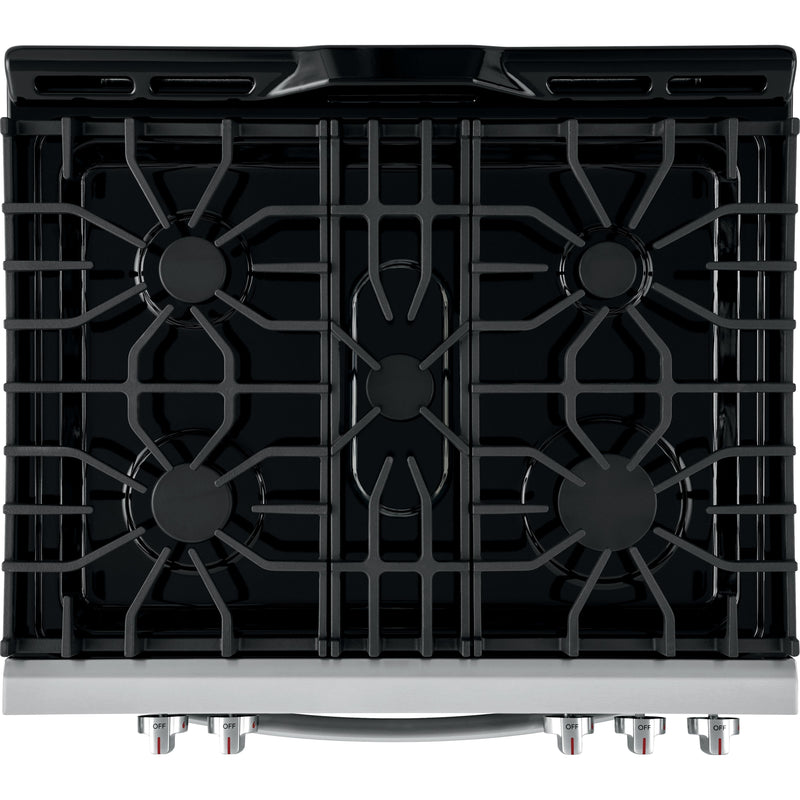

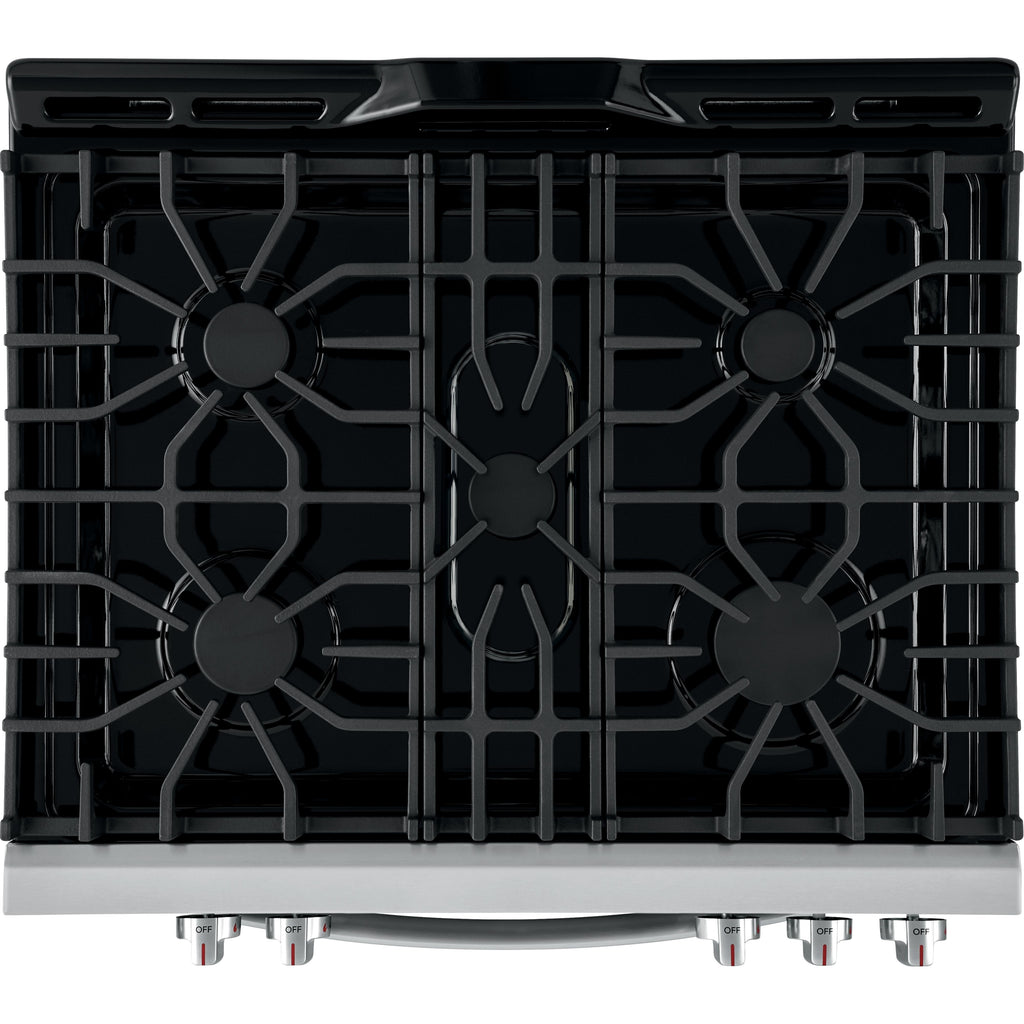

Burners/Elements
5
Burners/Elements Output
• Right Front Burner: 17,000 BTU
• Right Rear Burner: 5,000 BTU
• Left Front Burner: 12,000 BTU
• Left Rear Burner: 9,500 BTU
• Center Extra Zone Burner: 9,500 BTU
• Right Rear Burner: 5,000 BTU
• Left Front Burner: 12,000 BTU
• Left Rear Burner: 9,500 BTU
• Center Extra Zone Burner: 9,500 BTU
Burners
Sealed

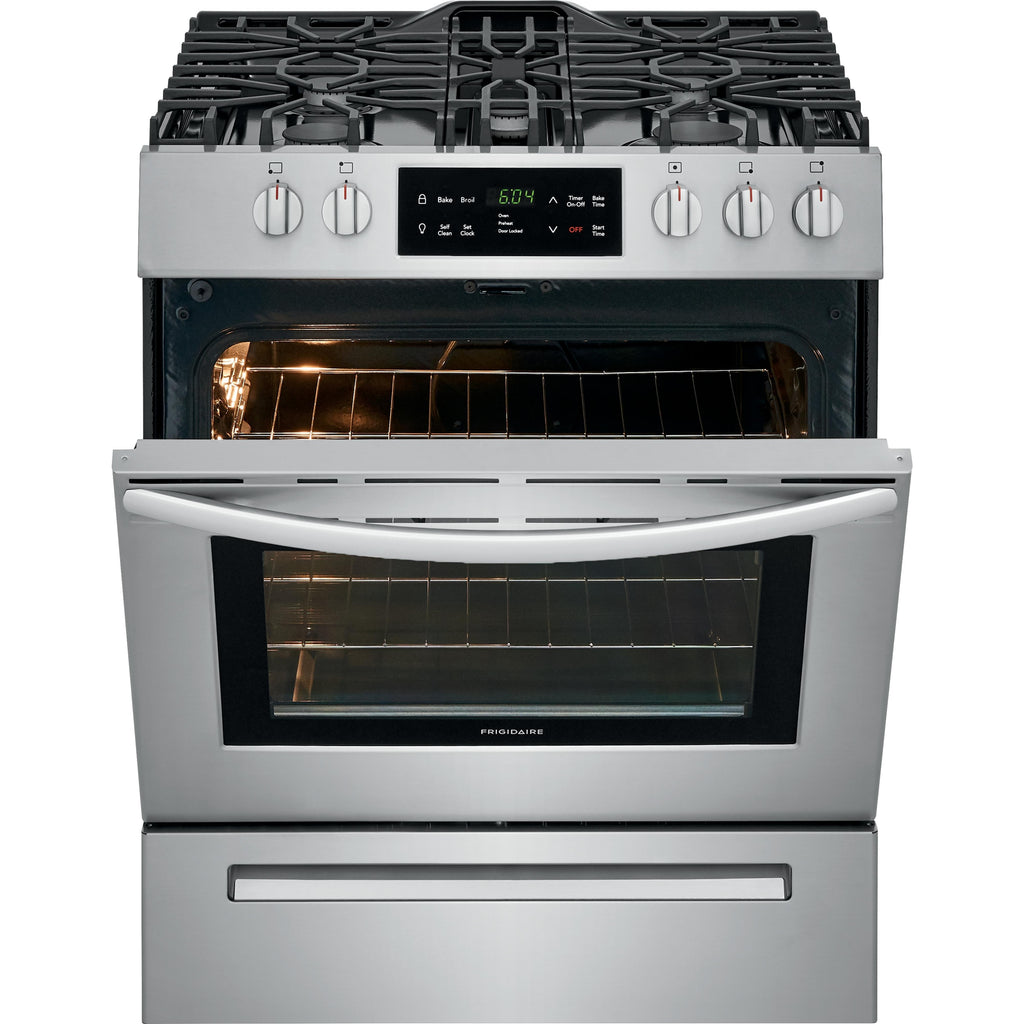

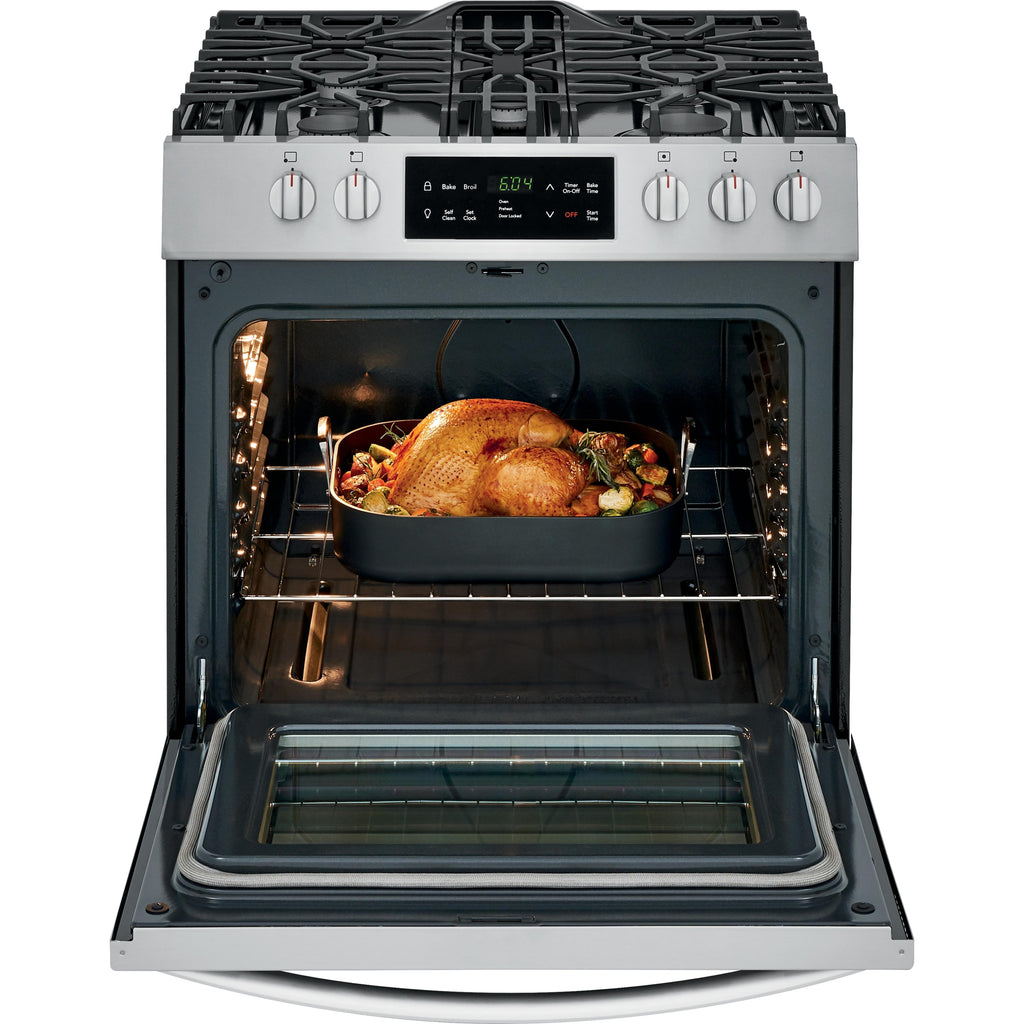

Oven
Capacity (cu. ft.)
5.0 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Delay Start
• Delay Bake
• Self-Clean 2, 3 Hour
• Delay Clean
• Kitchen Timer
• Timed Cook Option
• Auto Oven Shut-Off 12 Hours
• Oven Lock-Out
• Broil
• Delay Start
• Delay Bake
• Self-Clean 2, 3 Hour
• Delay Clean
• Kitchen Timer
• Timed Cook Option
• Auto Oven Shut-Off 12 Hours
• Oven Lock-Out
Features
Technologies
• Ready-Select® Controls
• Even Baking Technology
• Vari-Broil™ (Hi / Lo)
• Even Baking Technology
• Vari-Broil™ (Hi / Lo)
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information

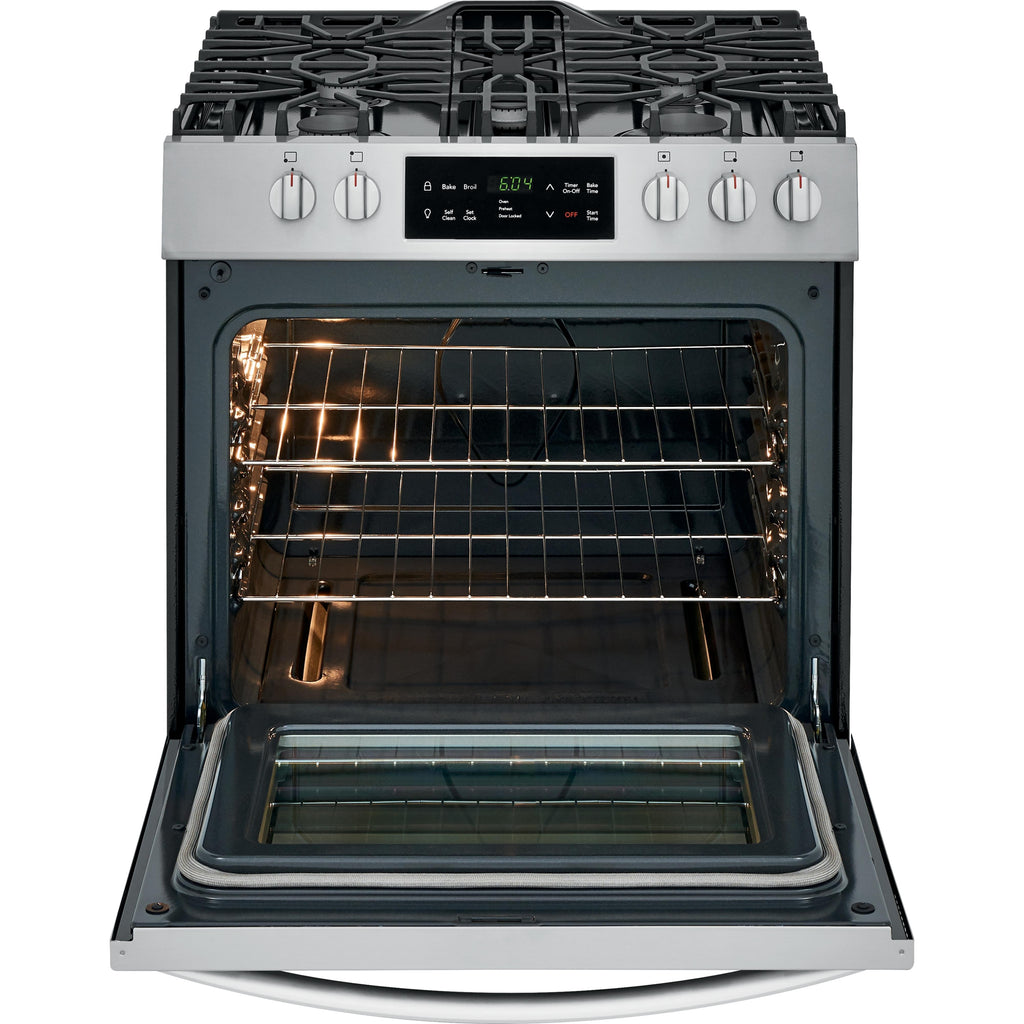

• 2 Standard Rack Configurations
• Bake Burner/Broil Burner (BTU): 18,000 / 13,500
• Bake Burner/Broil Burner (BTU): 18,000 / 13,500
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 5 A
• 60 Hz
• 5 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Optional
LP Gas Conversion Kit: GRLP4
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.62 inch(es) / 93.02 cm
Depth (Including Handles)
29.18 inch(es) / 74.13 cm
Weight
189.99 lb(s) / 86.18 kg
Additional Dimensions
• Cutout Dimensions
• Height (Standard): 36"
• Width (Min.): 30"
• Depth (Min.): 24"
• Depth with Door Open 90 Degrees: 47"
• Height (Standard): 36"
• Width (Min.): 30"
• Depth (Min.): 24"
• Depth with Door Open 90 Degrees: 47"
Shipping Dimensions
Weight
189.99 lb(s) / 86.18 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
012505512469
