Features

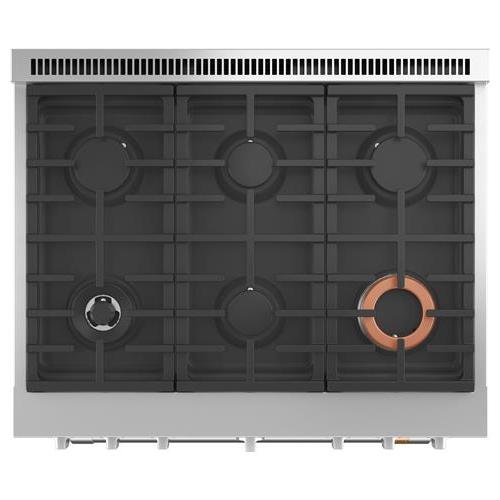

VERSATILE COOKTOP
The versatile cooktop on this commercial-style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.

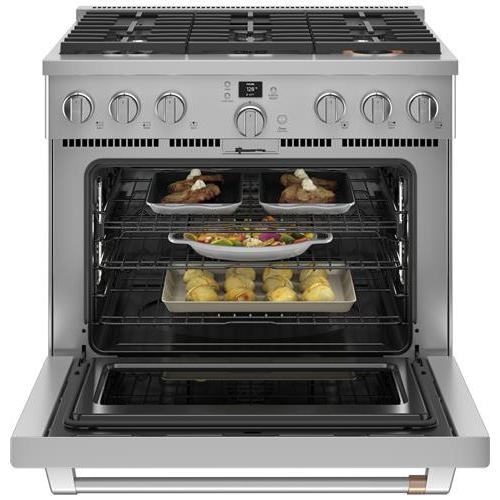

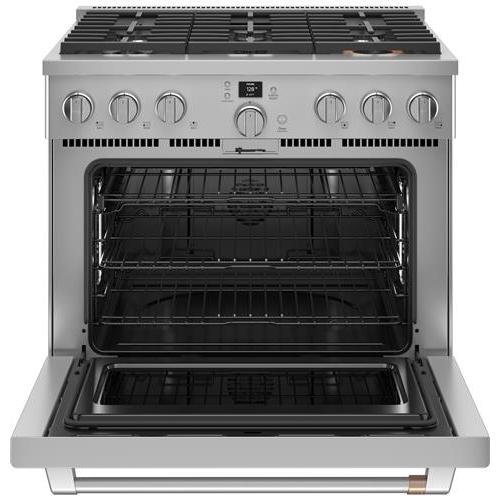

CATERER OVEN
A large capacity oven fits a full-size catering pan and has three racks, large 8-pass bake and broil elements for even heat coverage and Precision Oven modes to help guarantee results for meals of any size.

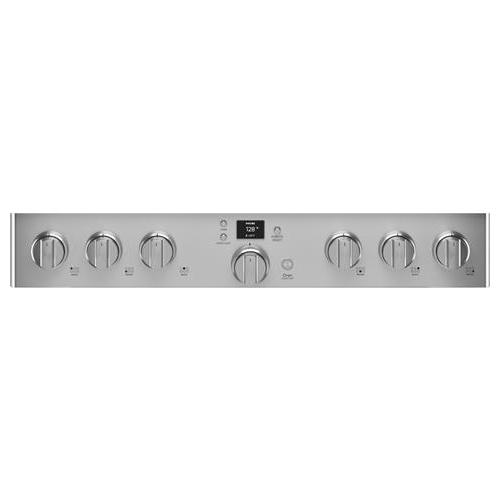

COLOR-MATCHED MANIFOLD WITH LCD CONTROL
Get a coordinated look with a manifold that matches the range's finish and an LCD control panel that provides information like oven and probe temperatures and cooking time for perfect cooking results.
INDUSTRY-LEADING HEAT DISTRIBUTION
An industry-exclusive Inspiral burner swirls the cooktop flame under cookware to eliminate uneven heating.
MULTI-RING BURNER
A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one.
Specifications
General
Series Name
Commercial-Style
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Auto Self Clean
• Self-Clean with Steam Clean Option
• Self-Clean Cool Down Time Display
• Delay Clean Option
• Self-Clean Oven Door Lock
• Self-Clean with Steam Clean Option
• Self-Clean Cool Down Time Display
• Delay Clean Option
• Self-Clean Oven Door Lock
Cooktop
Burners/Elements
6
Burners/Elements Output
• Burner - Left Front: 21,000 BTU Multi-ring Burner
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center: 12,000 BTU Front / 12,000 BTU Rear
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center: 12,000 BTU Front / 12,000 BTU Rear
Burners
Sealed
Oven
Capacity (cu. ft.)
5.75
Number of Ovens
Single
Programs
• Bake
• Broil
• Convection Bake Multi/Single Rack
• Convection Broil Hi/Lo
• Convection Roast
• Proof
• Warming
• Broil
• Convection Bake Multi/Single Rack
• Convection Broil Hi/Lo
• Convection Roast
• Proof
• Warming
Features
Technologies
• True Convection with Reverse Air
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-CookVoice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-CookVoice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Audible Preheat Signal
• Auto Oven Shut-Off
• Chef Connect
• Electronic Timer
• Front Controls
• In-Oven Broiling
• Oven "ON" Light
• Temperature Probe
• Dishwasher Safe Knobs
• Digital Temperature Display with Timer Display
• 8-Pass Broil Element
• Heavy Cast Continuous Grates
• 1 Self-Clean Roller Rack
• 2 Self-Clean Flat Oven Racks
• 5 Rack Positions
• Ignition System: Electronic with Auto Reignition
• 4 Leveling Legs
• Dual element broil
• Hidden bake
• Big Clear View Oven Window
• Auto Oven Shut-Off
• Chef Connect
• Electronic Timer
• Front Controls
• In-Oven Broiling
• Oven "ON" Light
• Temperature Probe
• Dishwasher Safe Knobs
• Digital Temperature Display with Timer Display
• 8-Pass Broil Element
• Heavy Cast Continuous Grates
• 1 Self-Clean Roller Rack
• 2 Self-Clean Flat Oven Racks
• 5 Rack Positions
• Ignition System: Electronic with Auto Reignition
• 4 Leveling Legs
• Dual element broil
• Hidden bake
• Big Clear View Oven Window
Electrical Information
Information
• Volts/Hertz/Amps: 240V; 60Hz: 30A
• Bake/Broil Wattage - Main Oven: 2650/3000W
• Convection Wattage: 2500W
• Bake/Broil Wattage - Main Oven: 2650/3000W
• Convection Wattage: 2500W
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• CXPR6HKPTSS: Brushed Stainless Steel Kit - 1 handle, 8 knobs
• LP Conversion Kit
• Power Cord
• LP Conversion Kit
• Power Cord
Optional
• CXPR6HKPTBZ: Brushed Bronze Kit - 1 handle, 8 knobs
• CXPR6HKPTBT: Brushed Black Kit - 1 handle, 8 knobs
• CXPR6HKPTCU: Brushed Copper Kit - 1 handle, 8 knobs
• CXPR6HKPTFB: Flat Black Kit - 1 handle, 8 knobs
• CXPR6HKPTCG: Brushed Brass Kit - 1 handle, 8 knobs
• CXPR6HKPTBT: Brushed Black Kit - 1 handle, 8 knobs
• CXPR6HKPTCU: Brushed Copper Kit - 1 handle, 8 knobs
• CXPR6HKPTFB: Flat Black Kit - 1 handle, 8 knobs
• CXPR6HKPTCG: Brushed Brass Kit - 1 handle, 8 knobs
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
29.37 inch(es) / 74.61 cm
Depth (Including Handles)
31.13 inch(es) / 79.06 cm
Weight
417 lb(s) / 189.15 kg
Additional Dimensions
• Depth with Door Open: 43 7/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Oven Interior Dimensions (W x H x D): 28-1/4" x 16-3/8" x 21-3/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Oven Interior Dimensions (W x H x D): 28-1/4" x 16-3/8" x 21-3/8"
Shipping Dimensions
Width
38.5 inch(es) / 97.79 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
462 lb(s) / 209.56 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
084691851332
