Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Liquid Propane
Type
Rangetop
Cooktop
Burners/Elements
6
Power Output
• [1] Front Left Burner 18,000 BTU
• [2] Front Middle Burner 15,000 BTU (650 BTU Simmer)
• [3] Front Right Burner 18,000 BTU
• [4] Rear Left Burner 12,000 BTU
• [5] Rear Middle Burner 12,000 BTU
• [6] Rear Right Burner 12,000 BTU
• [2] Front Middle Burner 15,000 BTU (650 BTU Simmer)
• [3] Front Right Burner 18,000 BTU
• [4] Rear Left Burner 12,000 BTU
• [5] Rear Middle Burner 12,000 BTU
• [6] Rear Right Burner 12,000 BTU
Burners
Sealed
Surface Features

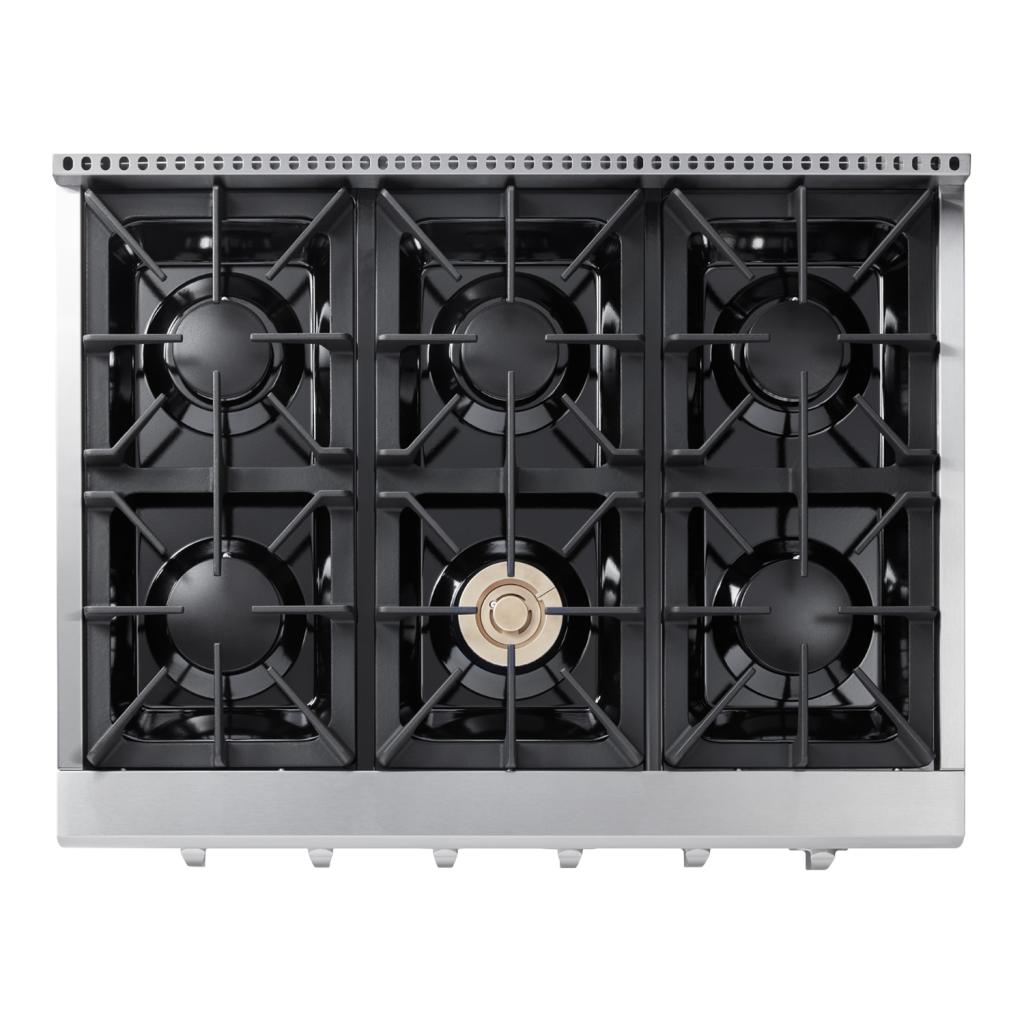

Heavy duty flat continuous cast-iron cooking grates
Features
Additional Information
• Six Burners: From a high-powered 18,000 BTU burner to a steady 650 BTU simmer function, this rangetop provides the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate.
• LED Lights: Brilliant blue LED control panel lights add a bold, stylish touch to your professional rangetop and indicate when the burners are on for safer cooking
• Pro-style Knobs: Die cast metal burner controls provide easy access to precise flame settings.
• Continuous Grates: Heavy-duty continuous cast iron grates allow for easy movement of pans between burners.
• Porcelain Spill Tray: Black porcelain spill tray on cook top provides a professional look and makes cleaning quick and easy.
• Automatic Electric Ignition: Eliminates the need to manually light the burners and saves money by using less gas than a standing pilot range.
• LED Lights: Brilliant blue LED control panel lights add a bold, stylish touch to your professional rangetop and indicate when the burners are on for safer cooking
• Pro-style Knobs: Die cast metal burner controls provide easy access to precise flame settings.
• Continuous Grates: Heavy-duty continuous cast iron grates allow for easy movement of pans between burners.
• Porcelain Spill Tray: Black porcelain spill tray on cook top provides a professional look and makes cleaning quick and easy.
• Automatic Electric Ignition: Eliminates the need to manually light the burners and saves money by using less gas than a standing pilot range.
Electrical Information
Information
• 120 V
• 15 or 20 A
• 60 Hz
• 15 or 20 A
• 60 Hz
Accessories
Optional
• Cast Iron Reversible Griddle RG1022
• Bamboo Cutting Board CB0001
• Wok Ring WK01
• Cast Iron Range Griddle RG103
• Bamboo Cutting Board CB0001
• Wok Ring WK01
• Cast Iron Range Griddle RG103
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
8.75 inch(es) / 22.23 cm
Depth
28.5 inch(es) / 72.39 cm
Weight
89.99 lb(s) / 40.82 kg
Additional Dimensions
• Cut-Out Left to Right Width: 36 1/4"
• Cut-Out Front to Back Depth: 25 5/8"
• Cut-Out Height: 7 5/16"
• Adjustable Range Legs: 1/2
• Cut-Out Front to Back Depth: 25 5/8"
• Cut-Out Height: 7 5/16"
• Adjustable Range Legs: 1/2
Warranty
Warranty
2-Year parts and labor warranty
