Features
TILT PANEL TOUCH CONTROL
A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use

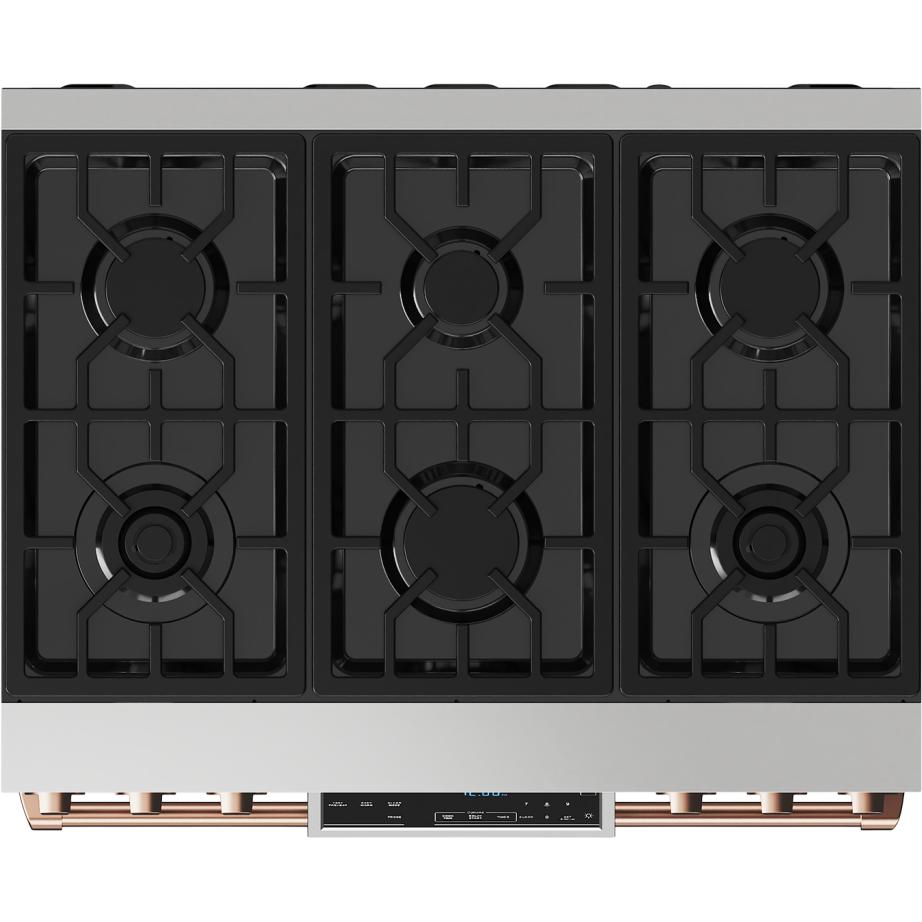

CONTINUOUS COOKING GRATE
The continuous grate design allows easy movement of pots and pans across the cooktop.
PANORAMIC VIEWING WINDOW
Take a look inside the oven through the panoramic viewing window for a full, clear view of your dishes as they cook, allowing you to monitor progress without opening the door.
Additional Features
TELESCOPIC RACKS
Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven and adjusts to fit different rack support levels.
WHITE PROJECTOR LIGHT ON PANEL.
The panel is illuminated by a white projector light, ensuring easy visibility and a modern look.
TRUE CONVECTION FAN.
For even heat distribution within the oven.
POWERFUL BROIL BURNER (13,500 BTU)
The oven broiler features a 13,500 BTU tube for quick and efficient broiling.
POWERFUL BAKE BURNER (22,000 BTU)
The powerful bake burner provides 22,000 BTUs of consistent heat for even baking.
Specifications
General
Series Name
Gordon Ramsay
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel with Rose Gold Accent
Cooktop
Burners/Elements
6
Burners/Elements Output
• (1) Front Left Burner 15,000 BTU
• (2) Front Center Burner 6,000 BTU
• (3) Front Right Burner 15,000 BTU
• (4) Rear Left Burner 12,000 BTU
• (5) Rear Center Burner 18,000 BTU
• (6) Rear Right Burner 12,000 BTU
• (2) Front Center Burner 6,000 BTU
• (3) Front Right Burner 15,000 BTU
• (4) Rear Left Burner 12,000 BTU
• (5) Rear Center Burner 18,000 BTU
• (6) Rear Right Burner 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
6.0 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Conv Bake
• Roast
• Conv Roast
• Air Fry, Pizza
• Proof
• Keep Warm
• Fast Preheat
• Dehydrate
• Conv Bake
• Roast
• Conv Roast
• Air Fry, Pizza
• Proof
• Keep Warm
• Fast Preheat
• Dehydrate
Features
Technologies
• True Convection Technology
• Air Fry Technology
• Air Fry Technology
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Oven Control Features: Light On/ Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self-clean, Control Lock Capability, Sabbath Mode, Temperature Probe C° or F° Programmable
• Bake Burner 22,000 BTU
• Broil Burner 13,500 BTU
• Convection True Convection with 800W Heating Element
• Baking Sheet Size Fits: 29" x 16" Baking Sheet
• Bake Burner 22,000 BTU
• Broil Burner 13,500 BTU
• Convection True Convection with 800W Heating Element
• Baking Sheet Size Fits: 29" x 16" Baking Sheet
Electrical Information
Information
• 15 A
• 120 V
• 60 Hz
• Plug Type: US 3-prong
• 120 V
• 60 Hz
• Plug Type: US 3-prong
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 1 Standard Oven Rack
• 1 Telescopic Rack
• 1 Broiler Pan Set
• 1 Telescopic Rack
• 1 Broiler Pan Set
Optional
• Island Trim
• Reversible Cast Iron Griddle and Grill Plate RG1022
• Wok Ring WK01
• Reversible Cast Iron Griddle and Grill Plate RG1022
• Wok Ring WK01
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
40.37 inch(es) / 102.54 cm
Depth (Without Handles)
28.24 inch(es) / 71.73 cm
Depth (Including Handles)
29.72 inch(es) / 75.49 cm
Weight
258.01 lb(s) / 117.03 kg
Additional Dimensions
• Oven Internal Width: 29 3/4"
• Oven Internal Depth: 19 1/2"
• Oven Internal Height: 18"
• Rubber Spacer Depth (Install On Back Panel): 3/4"
• Product Height (From Bottom To Top Of Back Splash): 40 7/16"
• Product Height (From Bottom To Top Of Side Panel): 36"
• Product Depth (From Back Panel To Handle): 29"
• Product Depth (From Back Panel To Bullnose): 27 1/2"
• Product Depth (From Back Panel To Control Panel): 26 3/8"
• Product Depth (From Back Panel To Side Panel Front): 24"
• Cutout Dimensions (WxDxH): 36" x 24 3/4" x 36"- 39"
• Adjustable Height: 3"
• Oven Internal Depth: 19 1/2"
• Oven Internal Height: 18"
• Rubber Spacer Depth (Install On Back Panel): 3/4"
• Product Height (From Bottom To Top Of Back Splash): 40 7/16"
• Product Height (From Bottom To Top Of Side Panel): 36"
• Product Depth (From Back Panel To Handle): 29"
• Product Depth (From Back Panel To Bullnose): 27 1/2"
• Product Depth (From Back Panel To Control Panel): 26 3/8"
• Product Depth (From Back Panel To Side Panel Front): 24"
• Cutout Dimensions (WxDxH): 36" x 24 3/4" x 36"- 39"
• Adjustable Height: 3"
Shipping Dimensions
Width
39 inch(es) / 99.06 cm
Height
47.5 inch(es) / 120.65 cm
Depth
32 inch(es) / 81.28 cm
Weight
309 lb(s) / 140.16 kg
Warranty
Warranty
2 Years Parts and Labor
Documents
