Features

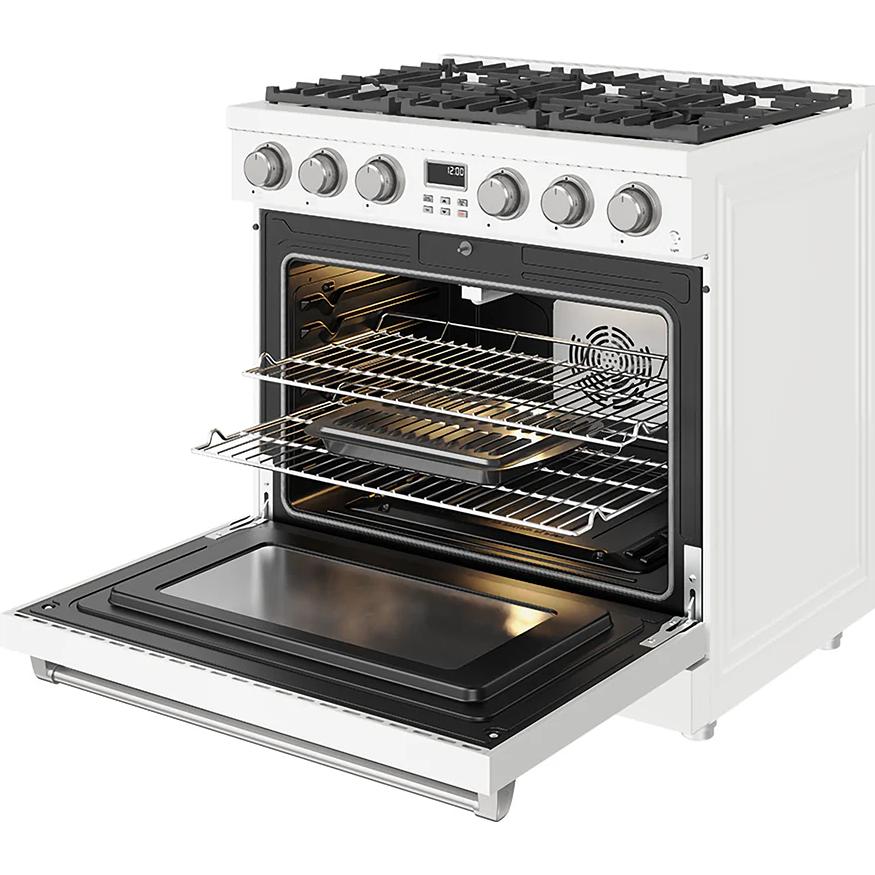

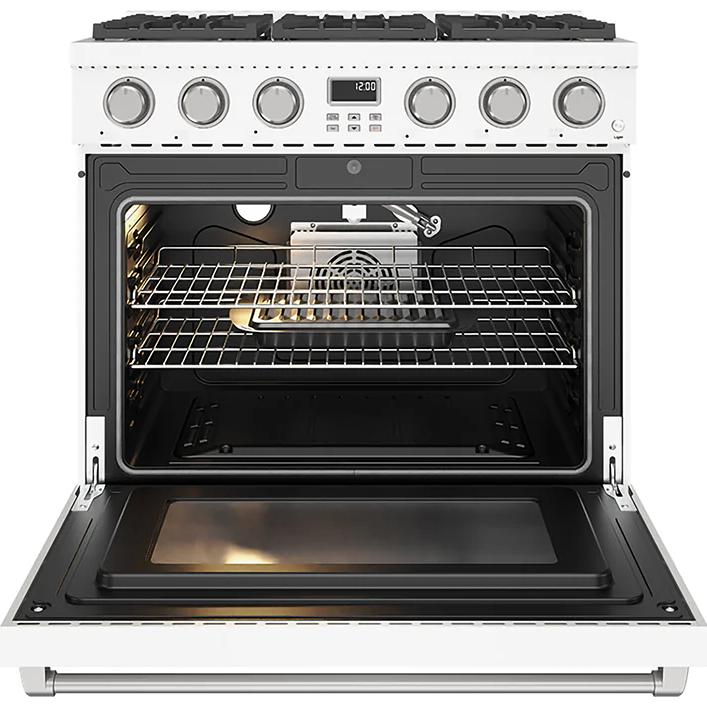

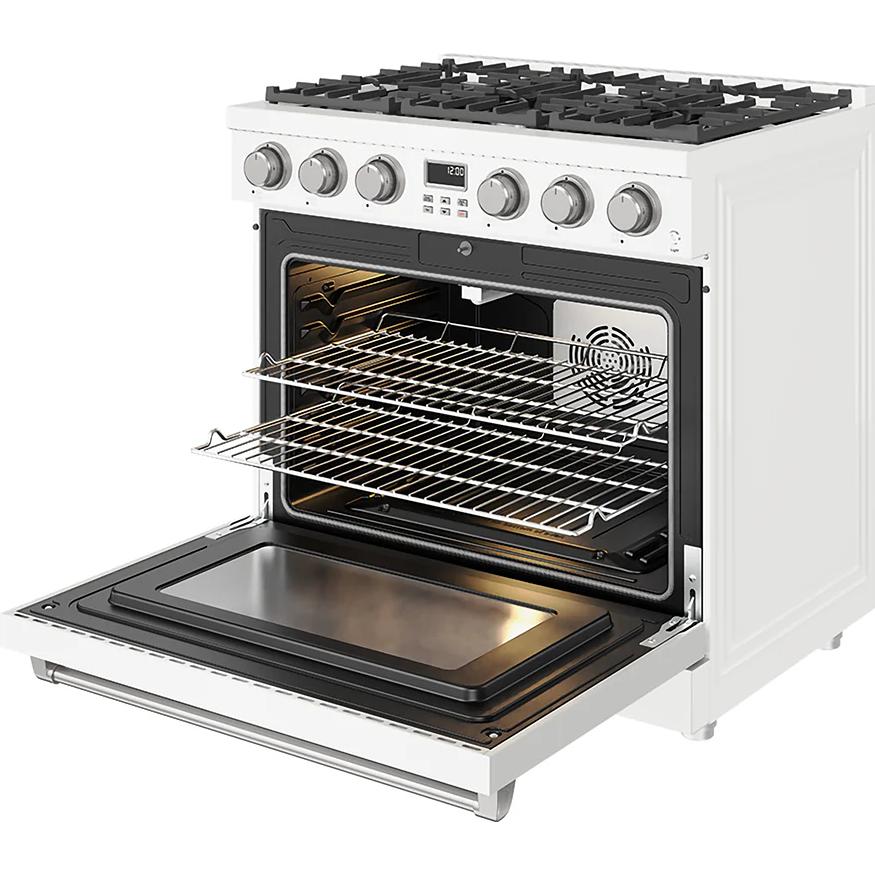

CONVECTION FAN
High-speed convection fan provides controlled heat distribution for fast and efficient cooking.
LARGE OVEN CAPACITY (6.0 CU. FT.)
6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking

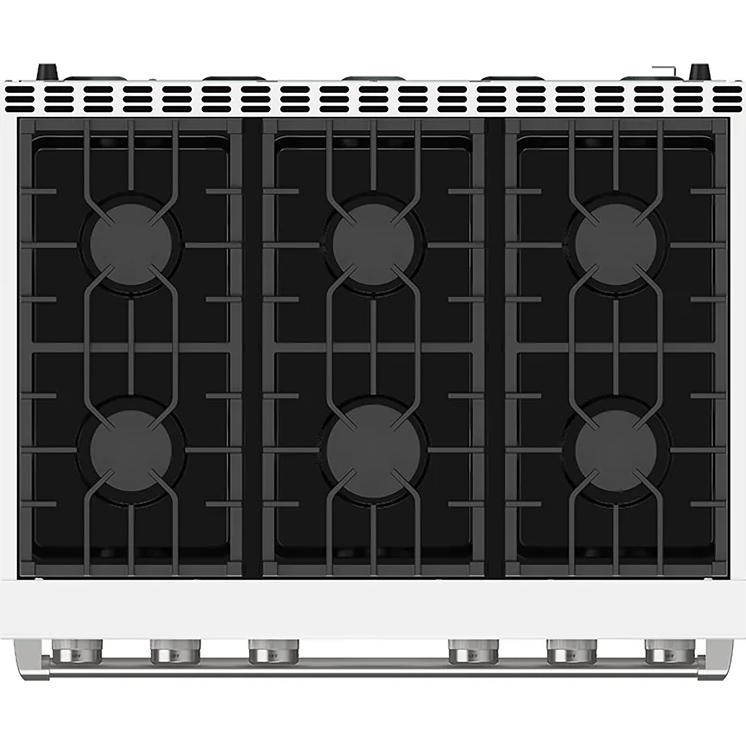

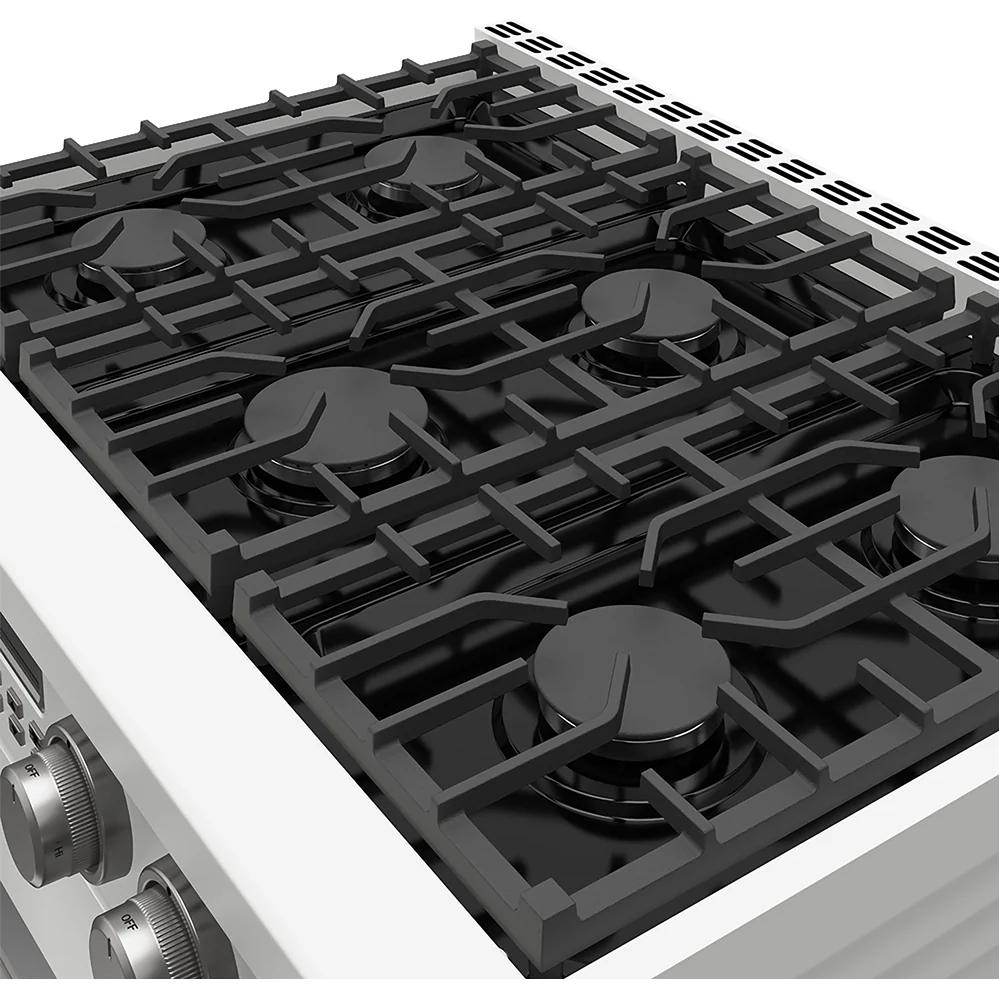

SIX SEALED BURNERS
From a high-powered 18,000 BTU burner to a steady 9,000 BTU burner, this range gives you the power you need for large family meals.
ONE-PIECE PORCELAIN SPILL TRAY
One-piece porcelain spill tray on cooktop catches the mess and makes cleanup easy.

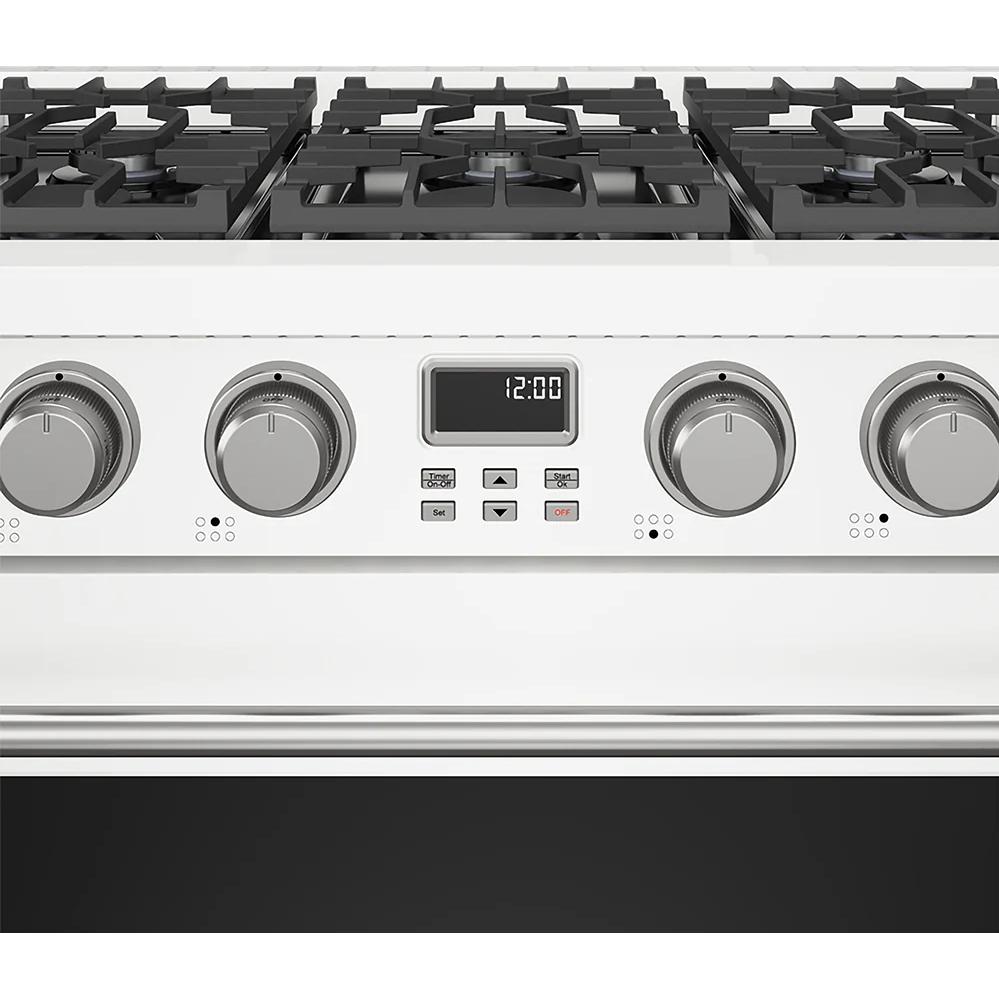

LED DISPLAY SCREEN
LED display screen, oven function button operation.
Specifications
General
Series Name
Contemporary Professional
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
6
Burners/Elements Output
• [1] Front Left Burner: 12,000 BTU
• [2] Front Center Burner: 18,000 BTU
• [3] Front Right Burner: 12,000 BTU
• [4] Rear Left Burner: 9,000 BTU
• [5] Rear Center Burner: 12,000 BTU
• [6] Rear Right Burner: 9,000 BTU
• [2] Front Center Burner: 18,000 BTU
• [3] Front Right Burner: 12,000 BTU
• [4] Rear Left Burner: 9,000 BTU
• [5] Rear Center Burner: 12,000 BTU
• [6] Rear Right Burner: 9,000 BTU
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.0 cu. ft.
Number of Ovens
Single
Programs
Bake, Broil, Conv Bake/Roast, Pizza, Keep Warm
Features
Technologies
Convection Technology
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information

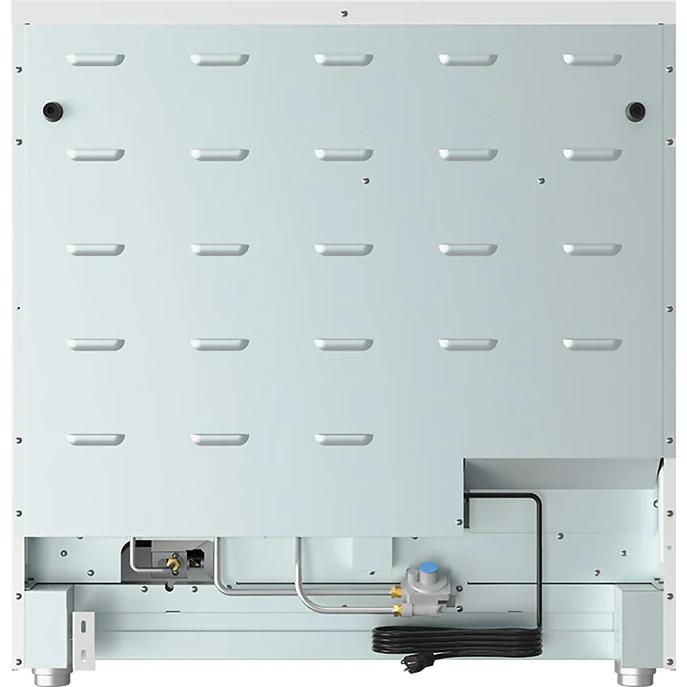

• Gas Line Regulator: 1/2"
• Control Type: Oven Function Button, LED Panel Display
• Bake Burner Power: 18,500 BTU
• Broil Burner Power: 13,500 BTU
• Convection: Convection Fan
• Oven Light: 1*40W, Rear
• Oven Rack Material: Chrome Plated
• Control Type: Oven Function Button, LED Panel Display
• Bake Burner Power: 18,500 BTU
• Broil Burner Power: 13,500 BTU
• Convection: Convection Fan
• Oven Light: 1*40W, Rear
• Oven Rack Material: Chrome Plated
Electrical Information
Information
• Amperage: 15A
• Volts: 120V
• Frequency: 60Hz
• Plug Type: 3 Prongs Included
• Cord Length: 60"
• Volts: 120V
• Frequency: 60Hz
• Plug Type: 3 Prongs Included
• Cord Length: 60"
Accessories
Included
• 2 Oven Racks
• 1 Broiler Pan
• 1 Bake Pan
• 1 Broiler Pan
• 1 Bake Pan
Optional
LP Kit Includes Orifices and Gas Regulator Caps
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Weight
195 lb(s) / 88.45 kg
Additional Dimensions
• Product Height (from bottom to top of back splash): 37-1/4" - 40-1/4"
• Product Height (from bottom to top of side panel): 36" - 39"
• Product Depth (from back panel to bullnose): 26-7/8"
• Product Depth (from back panel to control board): 26-1/4"
• Product Depth (from back panel to side panel front): 24"
• Adjustable Leg Sizes: 3" Max
• Baking Sheet Size: Fits up to 28" x 14" Sheet
• Oven Internal Height: 18"
• Oven Internal Width: 29.7"
• Oven Internal Depth: 19.4"
• Product Height (from bottom to top of side panel): 36" - 39"
• Product Depth (from back panel to bullnose): 26-7/8"
• Product Depth (from back panel to control board): 26-1/4"
• Product Depth (from back panel to side panel front): 24"
• Adjustable Leg Sizes: 3" Max
• Baking Sheet Size: Fits up to 28" x 14" Sheet
• Oven Internal Height: 18"
• Oven Internal Width: 29.7"
• Oven Internal Depth: 19.4"
Shipping Dimensions
Width
36 inch(es) / 91.44 cm
Height
36 inch(es) / 91.44 cm
Depth
24 inch(es) / 60.96 cm
Weight
250 lb(s) / 113.4 kg
Warranty
Warranty
2 Years Parts and Labor
