Features

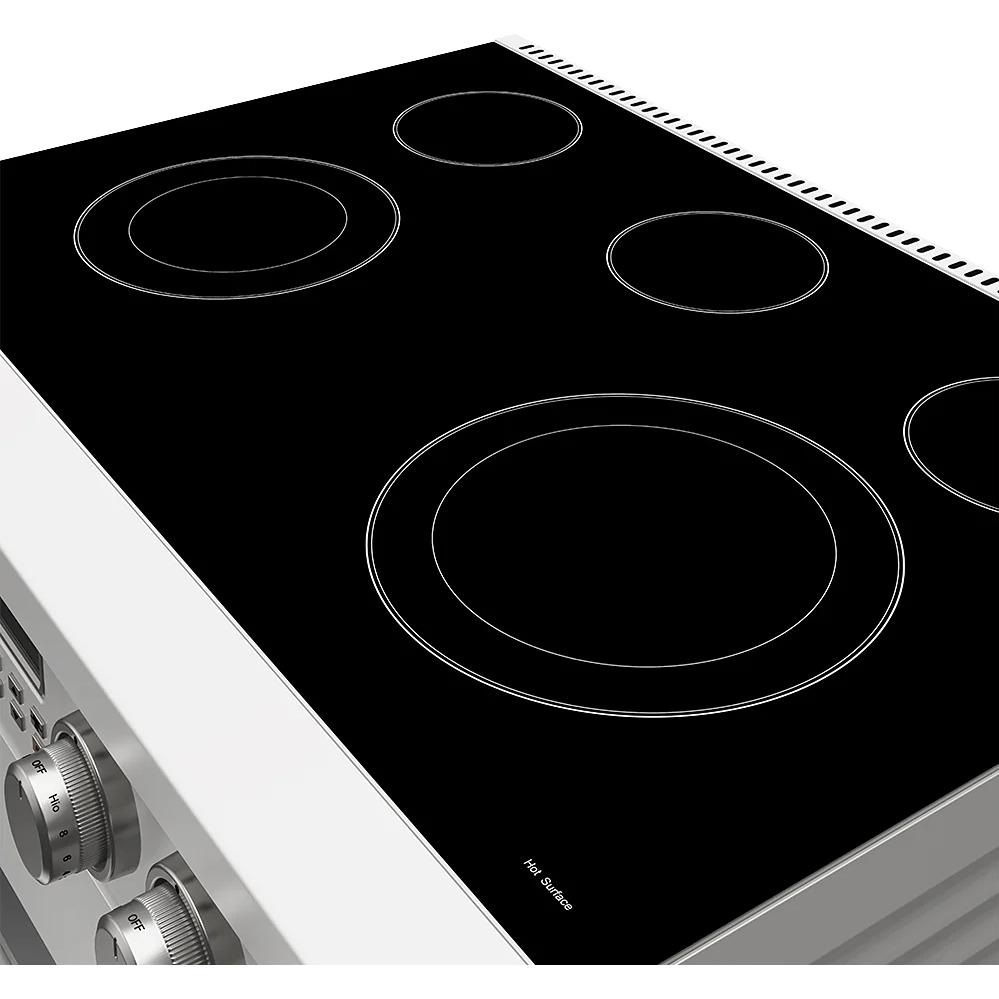

BLACK GLASS TOP
Black glass top catches the mess and makes cleanup easy.

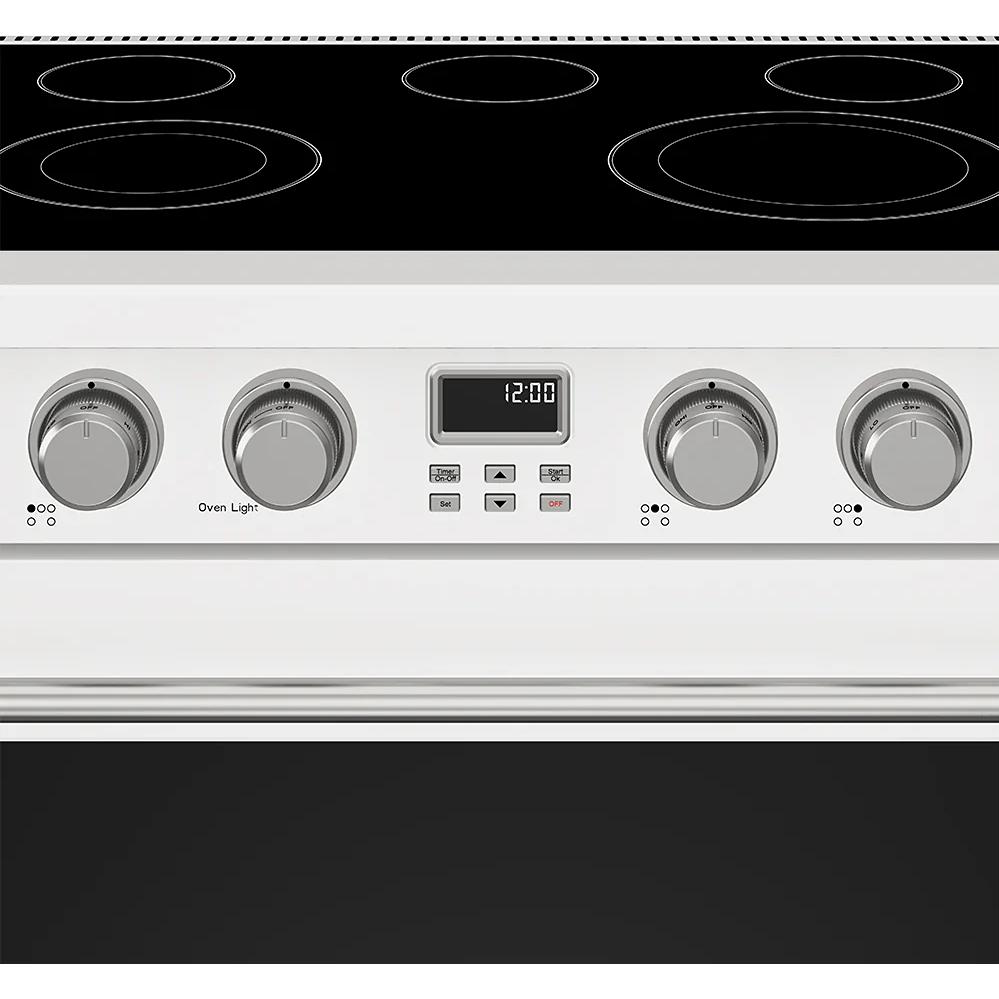

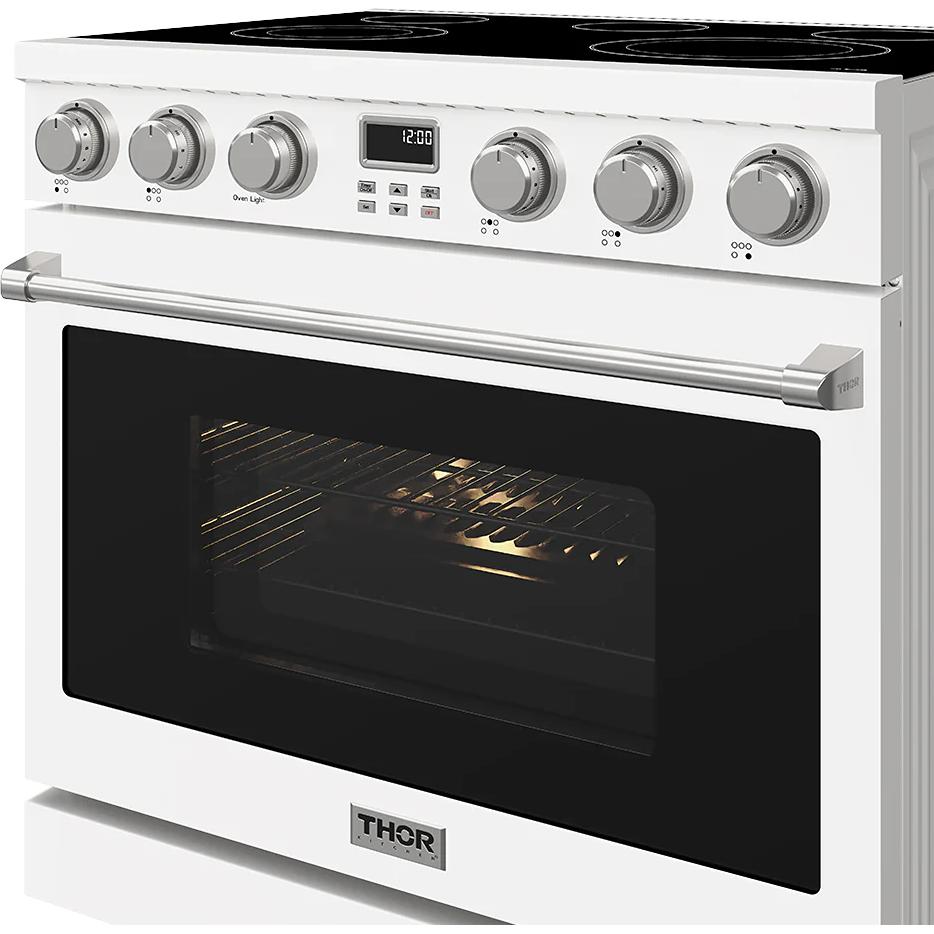

LED DISPLAY SCREEN
LED display screen, oven function button operation.

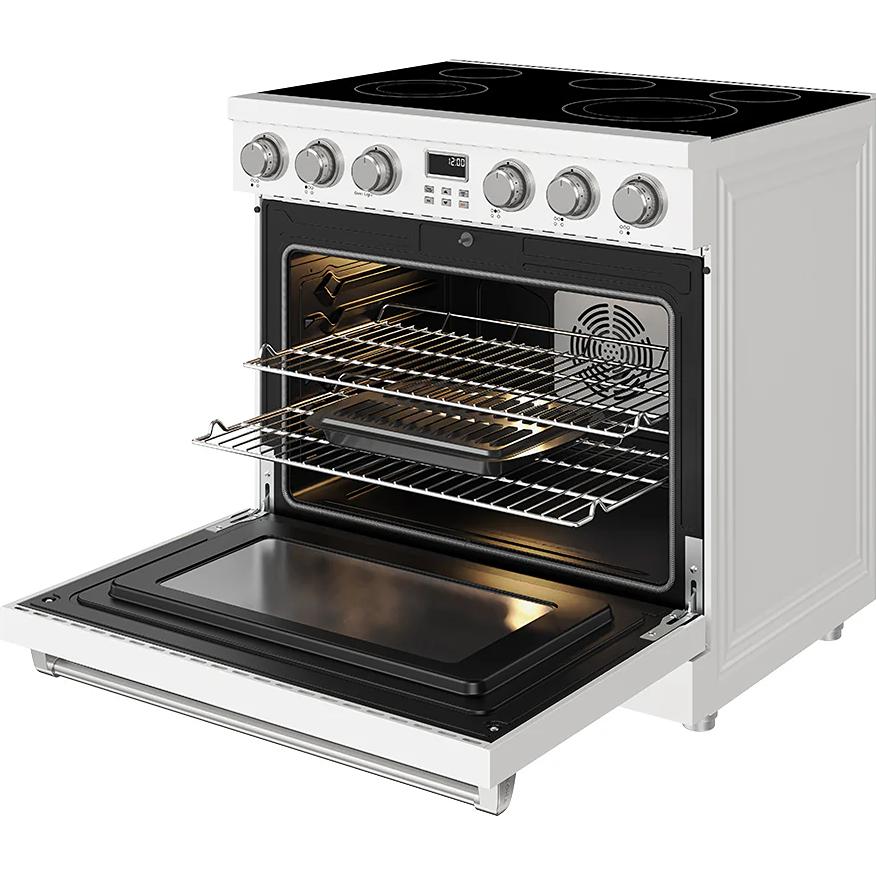

CONVECTION FAN
High-speed convection fan provides controlled heat distribution for fast and efficient cooking.
LARGE OVEN CAPACITY (6.0 CU. FT.)
6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking

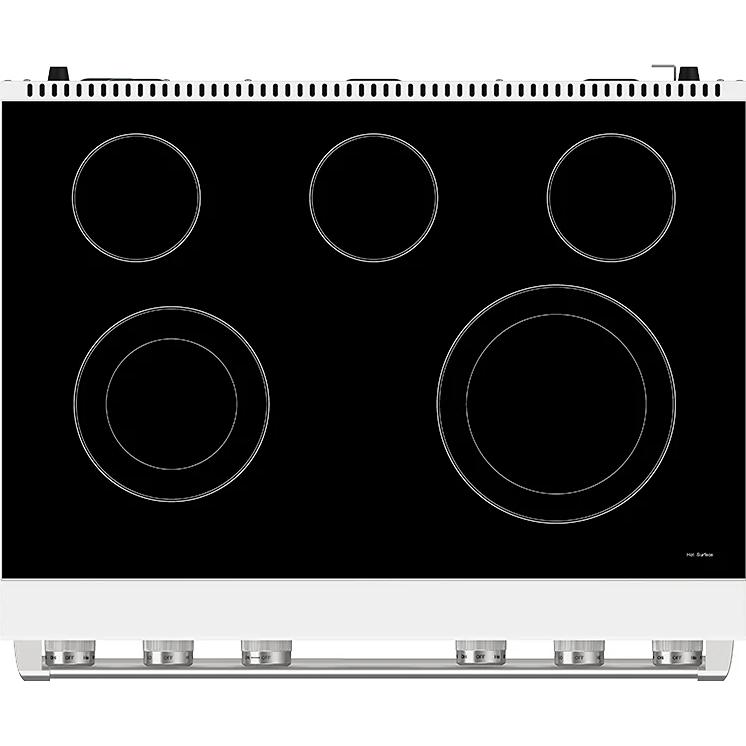

FIVE HEATING ELEMENTS - ARE36B
Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meal.
Specifications
General
Series Name
Contemporary Professional
Fuel Type
Electric
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
5
Burners/Elements Output
Front Left Element (Dual):
• Outer Ring: 1,200W
• Inner Ring: 1,800W
• Total: 3,000W
Front Right Element (Dual):
• Outer Ring: 1,500W
• Inner Ring: 1,500W
• Total: 3,000W
• Rear Left Element (Single): 1,200W
• Rear Middle Element (Single): 1,200W
• Rear Right Element (Single): 1,200W
• Outer Ring: 1,200W
• Inner Ring: 1,800W
• Total: 3,000W
Front Right Element (Dual):
• Outer Ring: 1,500W
• Inner Ring: 1,500W
• Total: 3,000W
• Rear Left Element (Single): 1,200W
• Rear Middle Element (Single): 1,200W
• Rear Right Element (Single): 1,200W
Elements
Smoothtop

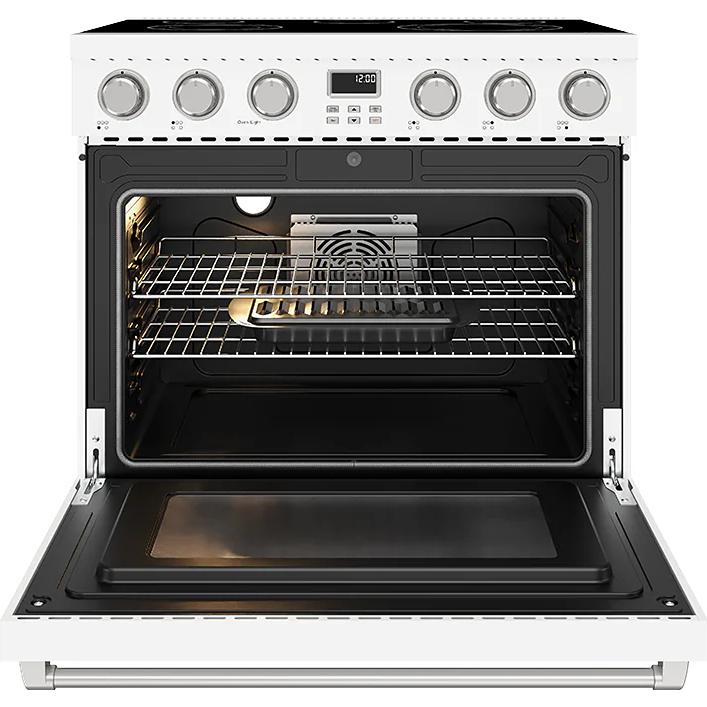

Oven
Capacity (cu. ft.)
6.0 cu. ft.
Number of Ovens
Single
Programs
Bake, Broil, Conv Bake/Roast, Pizza, Keep Warm
Features
Technologies
Convection Technology
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Control Type: Oven Function Button, LED Panel Display
• Hot Surface Indicator Light: Front Right Corner of Cooktop w/Temp at 150°F
• Cooktop: Black Polished Plate Ceramic
• Oven Control Buttons: Start/Ok, Timer On/Off
• Lower Heater Power: 3,500W
• Top Heater Power: 3,500W
• Convection: Convection Fan
• Oven Light: 1*40W, Rear

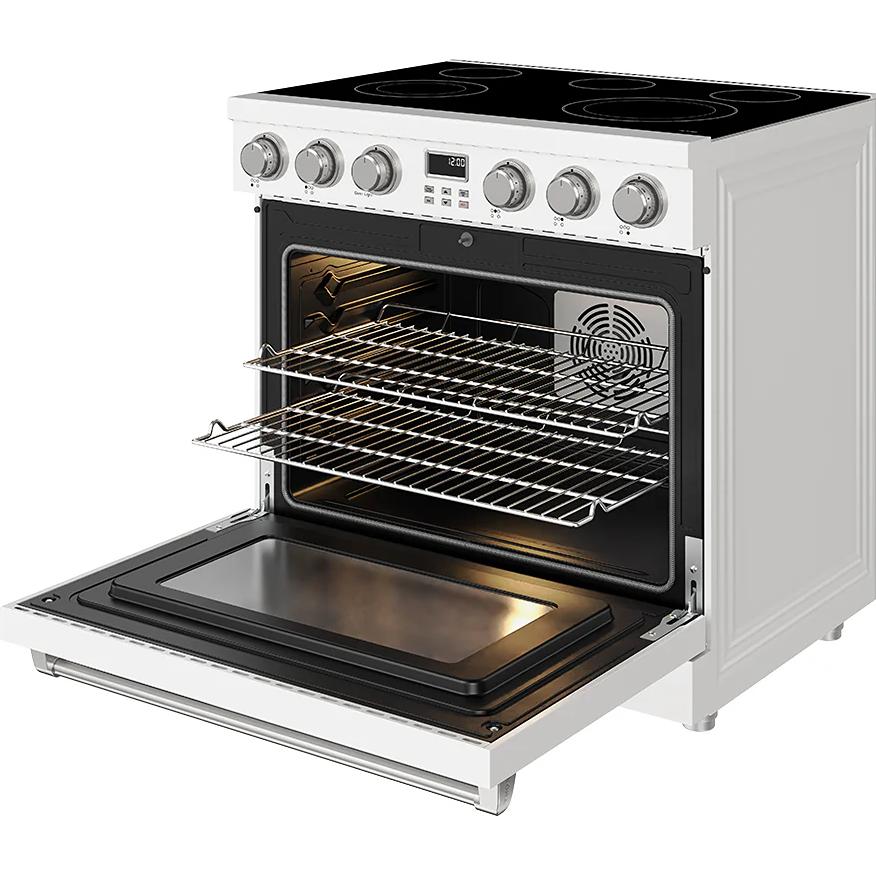

• Rack Positions: 6
• Oven Rack Material: Chrome Plated
• Hot Surface Indicator Light: Front Right Corner of Cooktop w/Temp at 150°F
• Cooktop: Black Polished Plate Ceramic
• Oven Control Buttons: Start/Ok, Timer On/Off
• Lower Heater Power: 3,500W
• Top Heater Power: 3,500W
• Convection: Convection Fan
• Oven Light: 1*40W, Rear
• Rack Positions: 6
• Oven Rack Material: Chrome Plated
Electrical Information
Information
• 240 V
• 50 A
• 60 Hz
• Plug Type: NEMA 14-50P (not included)
• 50 A
• 60 Hz
• Plug Type: NEMA 14-50P (not included)
Accessories
Included
• 2 Oven Racks
• 1 Broiler Pan
• 1 Bake Pan
• 1 Broiler Pan
• 1 Bake Pan
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Weight
198.99 lb(s) / 90.26 kg
Additional Dimensions
• Product Height (from bottom to top of back splash): 36-1/12" - 40-1/12"
• Product Height (from bottom to top of side panel): 36" - 39"
• Product Depth (from back panel to bullnose): 26-7/8"
• Product Depth (from back panel to control board): 26-1/4"
• Product Depth (from back panel to side panel front): 24"
• Adjustable Leg Sizes: 3" Max.
• Cutout Height: 36"
• Cutout Width: 36"
• Cutout Depth: 24"
• Baking Sheet Size: Fits up to 28" x 14" Sheet
• Oven Height: 18"
• Oven Width: 29.7"
• Oven Depth: 19.4"
• Product Height (from bottom to top of side panel): 36" - 39"
• Product Depth (from back panel to bullnose): 26-7/8"
• Product Depth (from back panel to control board): 26-1/4"
• Product Depth (from back panel to side panel front): 24"
• Adjustable Leg Sizes: 3" Max.
• Cutout Height: 36"
• Cutout Width: 36"
• Cutout Depth: 24"
• Baking Sheet Size: Fits up to 28" x 14" Sheet
• Oven Height: 18"
• Oven Width: 29.7"
• Oven Depth: 19.4"
Shipping Dimensions
Weight
253.99 lb(s) / 115.21 kg
Warranty
Warranty
2 Years Parts and Labor
