Features
1-99 MINUTE TIMER
Allows precise control over cooking time for consistent results.
CHILD LOCK
Ensures safety by preventing accidental operation, especially around children.
BOOSTER FUNCTION
Speeds up cooking when you need extra heat quickly.
KEEP WARM FUNCTION
Keeps food at an ideal serving temperature without overcooking.

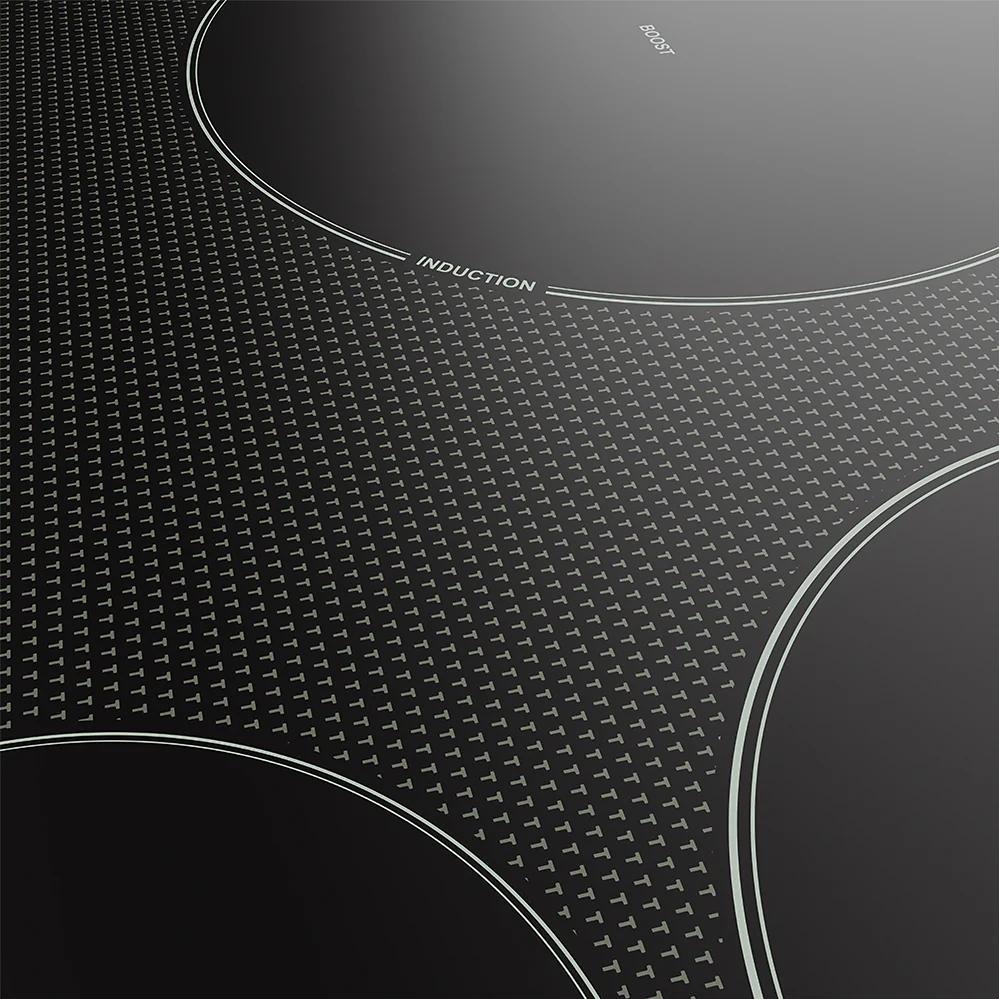

GLASTOP SURFACE
Makes cleaning quick and easy, keeping your cooktop looking spotless.
9 LEVELS POWER SETTING
Provides flexibility for cooking different dishes, from gentle simmering to high-power frying.
INDIVIDUAL RESIDUAL HEAT INDICATOR
Shows which cooking zones are still hot, preventing accidental burns.
120-MINUTE AUTOMATIC SAFETY SWITCH-OFF
Prevents overheating and unattended cooking accidents for peace of mind.

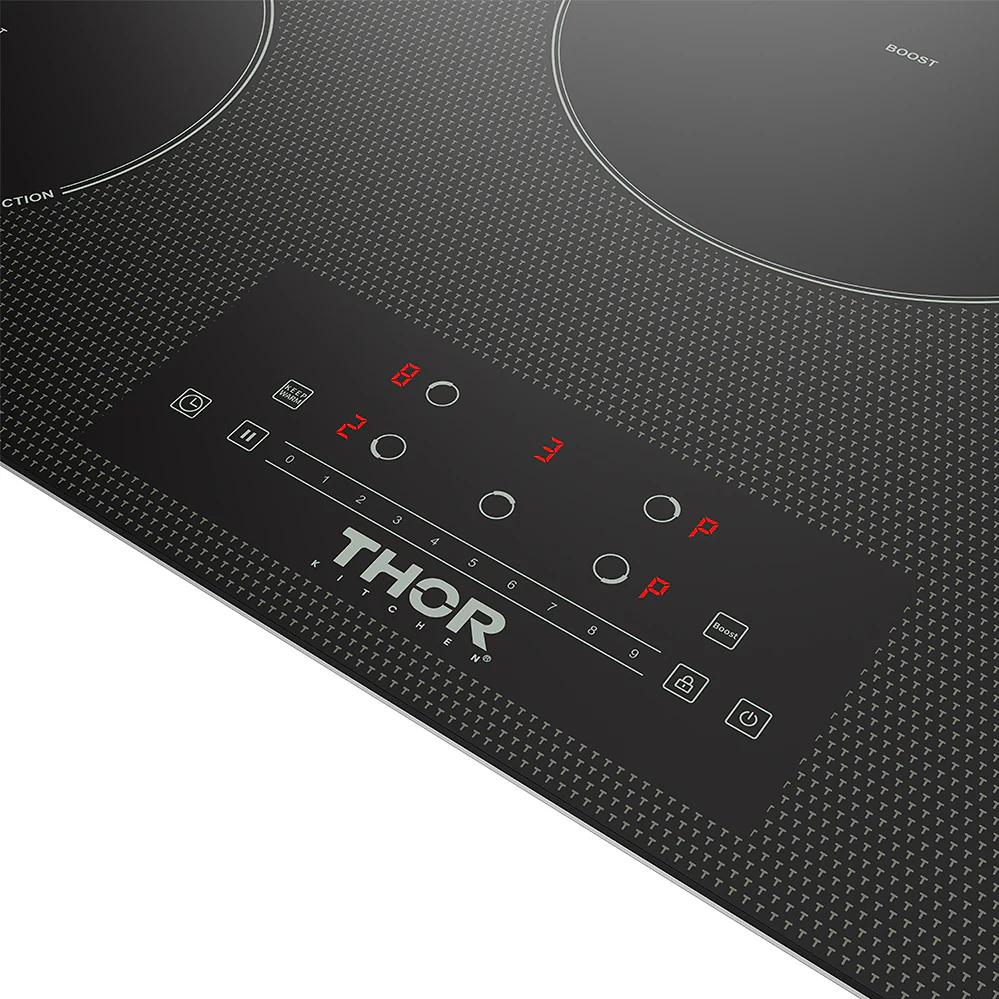

SLIDE TOUCH CONTROL
Allows intuitive and precise control over cooking settings.
Specifications
General
Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• [1] Left Front Element-Burner Power / In Boost: 1,800W/2,100W
• [2] Left Rear Element-Burner Power / In Boost: 1,200W/1,600W
• [3] Right Front Element-Burner Power / In Boost: 1,200W/1,600W
• [4] Right Rear Element-Burner Power / In Boost: 1,800W/2,100W
• (5) Center Element-Burner Power / In Boost: 2,300W/3,700W
• Power of Full Surface Heating Element: 9,600W
• Power of Full Surface Heating Element (In Boost): 11,100W
• [2] Left Rear Element-Burner Power / In Boost: 1,200W/1,600W
• [3] Right Front Element-Burner Power / In Boost: 1,200W/1,600W
• [4] Right Rear Element-Burner Power / In Boost: 1,800W/2,100W
• (5) Center Element-Burner Power / In Boost: 2,300W/3,700W
• Power of Full Surface Heating Element: 9,600W
• Power of Full Surface Heating Element (In Boost): 11,100W
Burner/Element Size
• (1) Left Front Element: 9-1/16"
• (2) Left Rear Element: 6-7/8"
• (3) Right Front Element: 6-7/8"
• (4) Right Rear Element: 9-1/16"
• (5) Center Element: 11-1/8"
• (2) Left Rear Element: 6-7/8"
• (3) Right Front Element: 6-7/8"
• (4) Right Rear Element: 9-1/16"
• (5) Center Element: 11-1/8"
Elements
Smoothtop
Features
Control Lock
Yes
Digital Display
Yes
Additional Information
• Automatic Pan Detection
• Cooktop Surface Material: Glass
• Touch Control
• Child Lock
• Auto Shut-Off
• Hot Surface Indicator Lights
• Heating Element On Indicator Light
• Power Boost
• Cooktop Surface Material: Glass
• Touch Control
• Child Lock
• Auto Shut-Off
• Hot Surface Indicator Lights
• Heating Element On Indicator Light
• Power Boost
Electrical Information
Information
• Amperage or Circuit Breaker: 50A
• Electrical Rating at 208V: 9,600W at 208V/ 60Hz
• Electrical Rating at 240V: 11,100W at 240V/ 60Hz
• Plug Type: Without Plug
• Power Cord Length: 39-7/8" Flexible 3-Wire
• Electrical Rating at 208V: 9,600W at 208V/ 60Hz
• Electrical Rating at 240V: 11,100W at 240V/ 60Hz
• Plug Type: Without Plug
• Power Cord Length: 39-7/8" Flexible 3-Wire
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
2.13 inch(es) / 5.41 cm
Depth
21 inch(es) / 53.34 cm
Weight
32.61 lb(s) / 14.79 kg
Additional Dimensions
• Minimum Distance From Counter Front: 4"
• Minimum Distance From Rear Wall: 13/16"
• Cutout Dimensions (WxDxH): 35-3/16" x 20-3/16" x 1-3/8"
• Minimum Distance From Rear Wall: 13/16"
• Cutout Dimensions (WxDxH): 35-3/16" x 20-3/16" x 1-3/8"
Shipping Dimensions
Width
39.75 inch(es) / 100.97 cm
Height
5.5 inch(es) / 13.97 cm
Depth
24.81 inch(es) / 63.02 cm
Weight
39.4 lb(s) / 17.87 kg
