Features
TILT PANEL TOUCH CONTROL
A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use

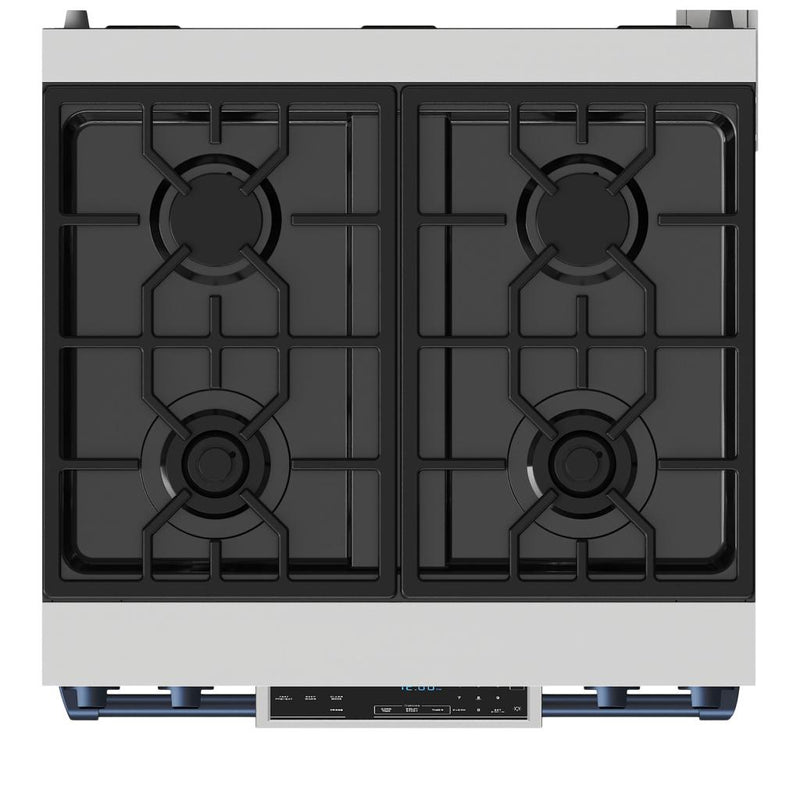

CONTINUOUS COOKING GRATE
The continuous grate design allows easy movement of pots and pans across the cooktop.
PANORAMIC VIEWING WINDOW
Take a look inside the oven through the panoramic viewing window for a full, clear view of your dishes as they cook, allowing you to monitor progress without opening the door.
Additional Features
WHITE PROJECTOR LIGHT ON PANEL.
The panel is illuminated by a white projector light, ensuring easy visibility and a modern look.
COMMERCIAL CONVECTION FAN
Provides controlled heat distribution for fast and efficient cooking
COMMERCIAL CONVECTION FAN.
The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
ADJUSTABLE 1-INCH FEET WITH DECORATIVE LEG COVER
The range includes 1-inch adjustable feet with a square decorative cover for the front legs.
Specifications
General
Series Name
Gordon Ramsay
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel with Blue Accent
Cooktop
Burners/Elements
4
Burners/Elements Output
• (1) Front Left Burner 15,000 BTU
• (2) Front Right Burner 15,000 BTU
• (3) Rear Left Burner 12,000 BTU
• (4) Rear Right Burner 12,000 BTU
• (2) Front Right Burner 15,000 BTU
• (3) Rear Left Burner 12,000 BTU
• (4) Rear Right Burner 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.55 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Conv Bake
• Conv Roast
• Broil
• Keep Warm
• Fast Preheat
• Conv Bake
• Conv Roast
• Broil
• Keep Warm
• Fast Preheat
Features
Technologies
Commercial Convection Technology
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Oven Control Features: Light On/ Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self-clean, Control Lock Capability, Sabbath Mode C° or F° Programmable
• Bake Burner: 18,500 BTU
• Broil Burner: 10,000 BTU
• Baking Sheet Size Fits: 23" x 16" Baking Sheet
• Bake Burner: 18,500 BTU
• Broil Burner: 10,000 BTU
• Baking Sheet Size Fits: 23" x 16" Baking Sheet
Electrical Information
Information
• 15 A
• 120 V
• 60 Hz
• Plug Type: US 3-prong
• 120 V
• 60 Hz
• Plug Type: US 3-prong
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 1 Standard Oven Rack
• 1 Telescopic rack
• 1 Broiler Pan Set
• 1 Telescopic rack
• 1 Broiler Pan Set
Optional
• Island Trim
• Reversible Cast Iron Griddle and Grill Plate RG1022
• Wok Ring WK01
• Reversible Cast Iron Griddle and Grill Plate RG1022
• Wok Ring WK01
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
40.42 inch(es) / 102.66 cm
Depth (Without Handles)
27.55 inch(es) / 69.97 cm
Depth (Including Handles)
28.99 inch(es) / 73.63 cm
Weight
212 lb(s) / 96.16 kg
Additional Dimensions
• Oven Internal Width: 23 3/4"
• Oven Internal Depth: 19 1/2"
• Oven Internal Height: 18"
• Rubber Spacer Depth (Install On Back Panel): 3/4"
• Product Height (From Bottom To Top Of Back Splash): 40 7/16"
• Product Height (From Bottom To Top Of Side Panel): 36"
• Product Depth (From Back Panel To Handle): 29"
• Product Depth (From Back Panel To Bullnose): 27 1/2"
• Product Depth (From Back Panel To Control Panel): 26 3/8"
• Product Depth (From Back Panel To Side Panel Front): 24"
• Cutout Dimensions (WxDxH): 30" x 24 3/4" x 36"- 37"
• Adjustable Height: 1"
• Oven Internal Depth: 19 1/2"
• Oven Internal Height: 18"
• Rubber Spacer Depth (Install On Back Panel): 3/4"
• Product Height (From Bottom To Top Of Back Splash): 40 7/16"
• Product Height (From Bottom To Top Of Side Panel): 36"
• Product Depth (From Back Panel To Handle): 29"
• Product Depth (From Back Panel To Bullnose): 27 1/2"
• Product Depth (From Back Panel To Control Panel): 26 3/8"
• Product Depth (From Back Panel To Side Panel Front): 24"
• Cutout Dimensions (WxDxH): 30" x 24 3/4" x 36"- 37"
• Adjustable Height: 1"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
47.5 inch(es) / 120.65 cm
Depth
32 inch(es) / 81.28 cm
Weight
256 lb(s) / 116.12 kg
Warranty
Warranty
2 Years Parts and Labor
