Features
HIGH-POWERED BTU BURNERS
The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes

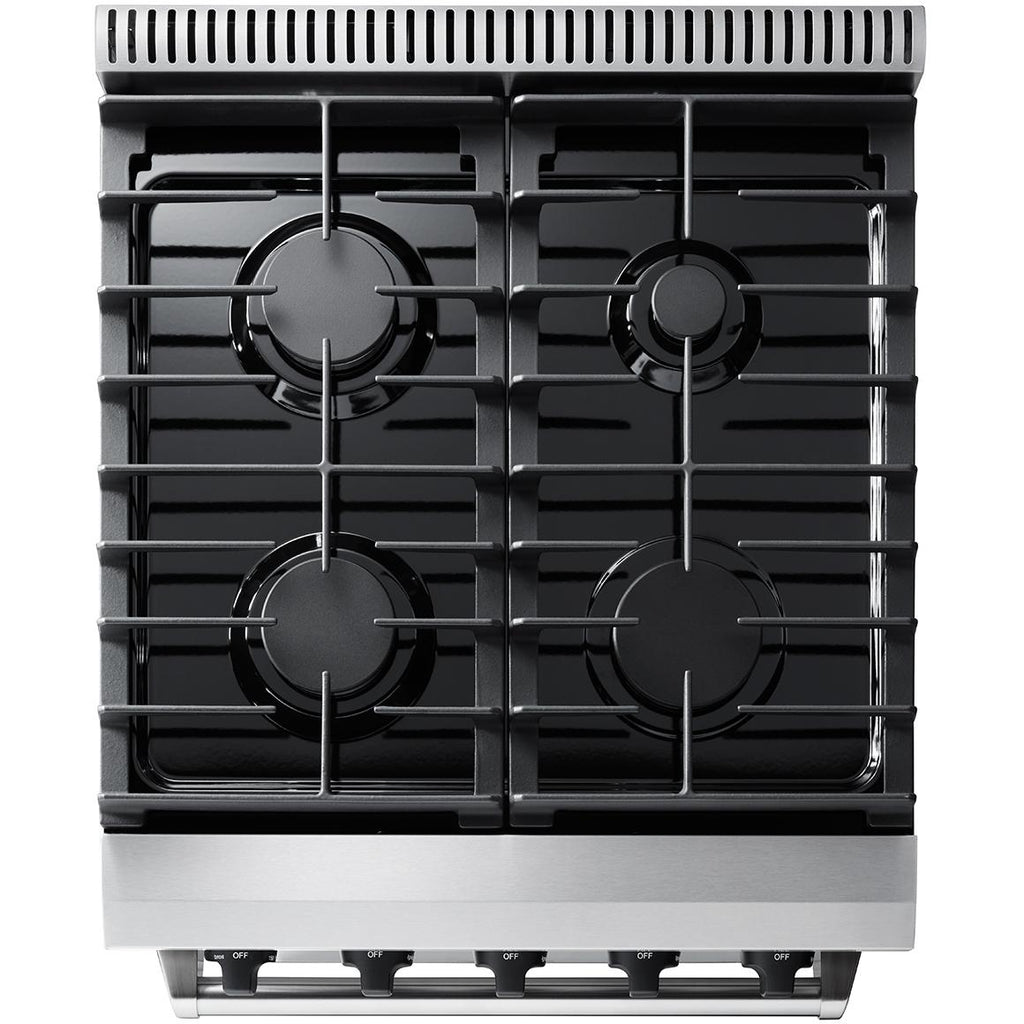

CONTINUOUS CAST-IRON GRATES
Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
EVEN HEAT BROILER
Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
PORCELAIN SPILL TRAY
Single-piece black porcelain spill tray catches the mess and makes cleanup easy

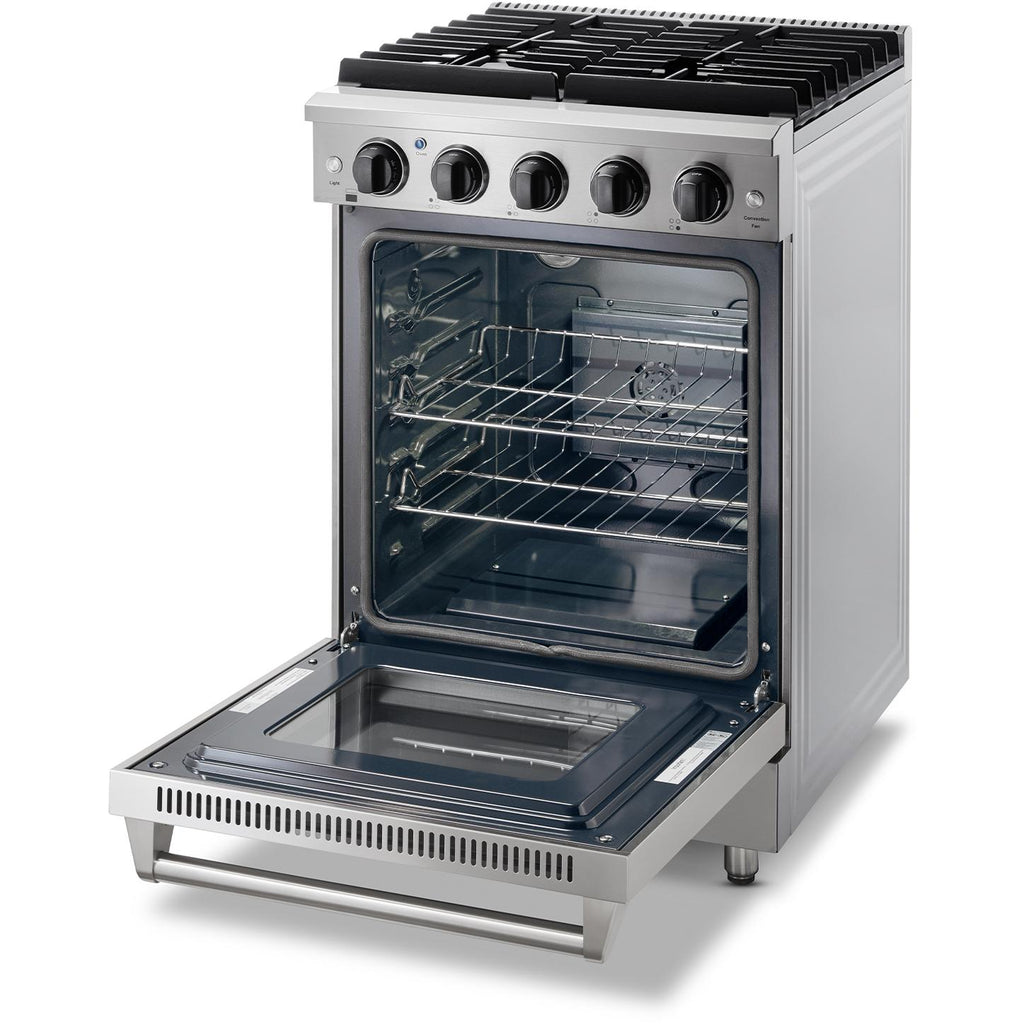

PORCELAIN INTERIOR
The gray porcelain oven interior adds a stylish touch and is easy to clean
Specifications
General
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Front Left Burner: 18,000 BTU
• Front Right Burner: 12,000 BTU
• Rear Left Burner: 9,000 BTU
• Rear Right Burner: 3,500 BTU
• Front Right Burner: 12,000 BTU
• Rear Left Burner: 9,000 BTU
• Rear Right Burner: 3,500 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
3.7 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Broil
Features
Convection
Yes
Oven Light
Yes
Additional Information
• Controls Type: Knob
• Oven Color: Grey
• Broil Burner: 10,000 BTU
• Bake Burner: 12,000 BTU
• Oven Light: 1, Rear
• Oven Racks: 2
• Rack Positions: 5
• Oven Rack Material: Chrome Plated
• Fits Half Sheet Pan (18" x 13")
• High-Powered BTU Burners
• Continuous Cast-Iron Grates
• Even Heat Broiler
• Porcelain Spill Tray
• Porcelain Interior
• Oven Color: Grey
• Broil Burner: 10,000 BTU
• Bake Burner: 12,000 BTU
• Oven Light: 1, Rear
• Oven Racks: 2
• Rack Positions: 5
• Oven Rack Material: Chrome Plated
• Fits Half Sheet Pan (18" x 13")
• High-Powered BTU Burners
• Continuous Cast-Iron Grates
• Even Heat Broiler
• Porcelain Spill Tray
• Porcelain Interior
Electrical Information
Information
• Electrical Requirements: 120V
• Circuit Breaker: 15 A
• Frequency: 60 Hz
• Circuit Breaker: 15 A
• Frequency: 60 Hz
Certifications and Approvals
Information
CSA
Accessories
Optional
• Wok Ring: WK01
• Attachable Griddle: RG1022
• Attachable Griddle: RG1022
Dimensions
Class Width
24"
Width
23.87 inch(es) / 60.64 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
25.87 inch(es) / 65.72 cm
Depth (Including Handles)
29.75 inch(es) / 75.57 cm
Additional Dimensions
• Product Depth (no door): 23 3/4"
• Cutout Width: 24"
• Cutout Depth: 24"
• Cutout Height: 36"
• Adjustable Legs: 1" Max
• Cutout Width: 24"
• Cutout Depth: 24"
• Cutout Height: 36"
• Adjustable Legs: 1" Max
Warranty
Warranty
2-Years Parts and Labor
