Specifications
General
Wash Action System

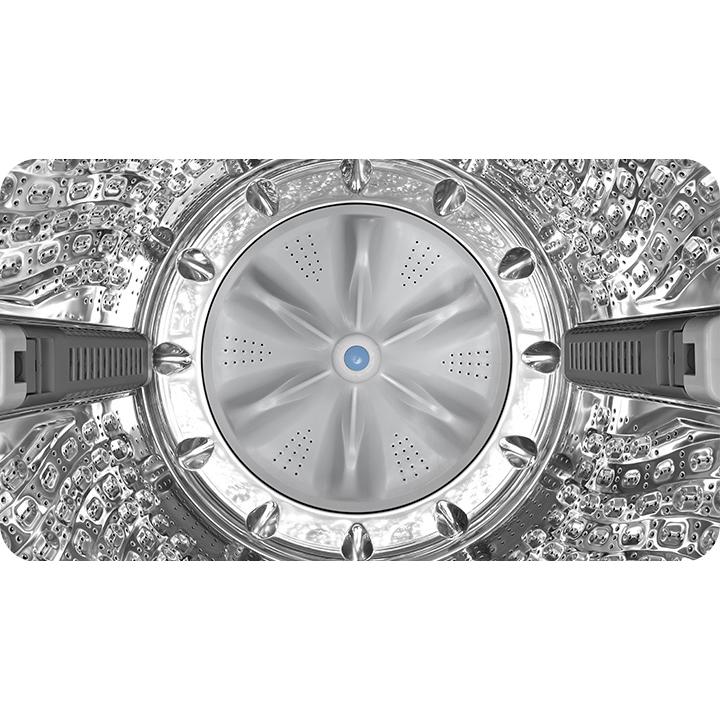

Impeller
Color
White
Manufacturer Color
White
Maximum Speed
750 rpm
Capacity
Total Capacity DOE
5.4 cu. ft.
DOE (By Class)
4.3 cu.ft. and above
Cycle Information
Number of Cycles
17

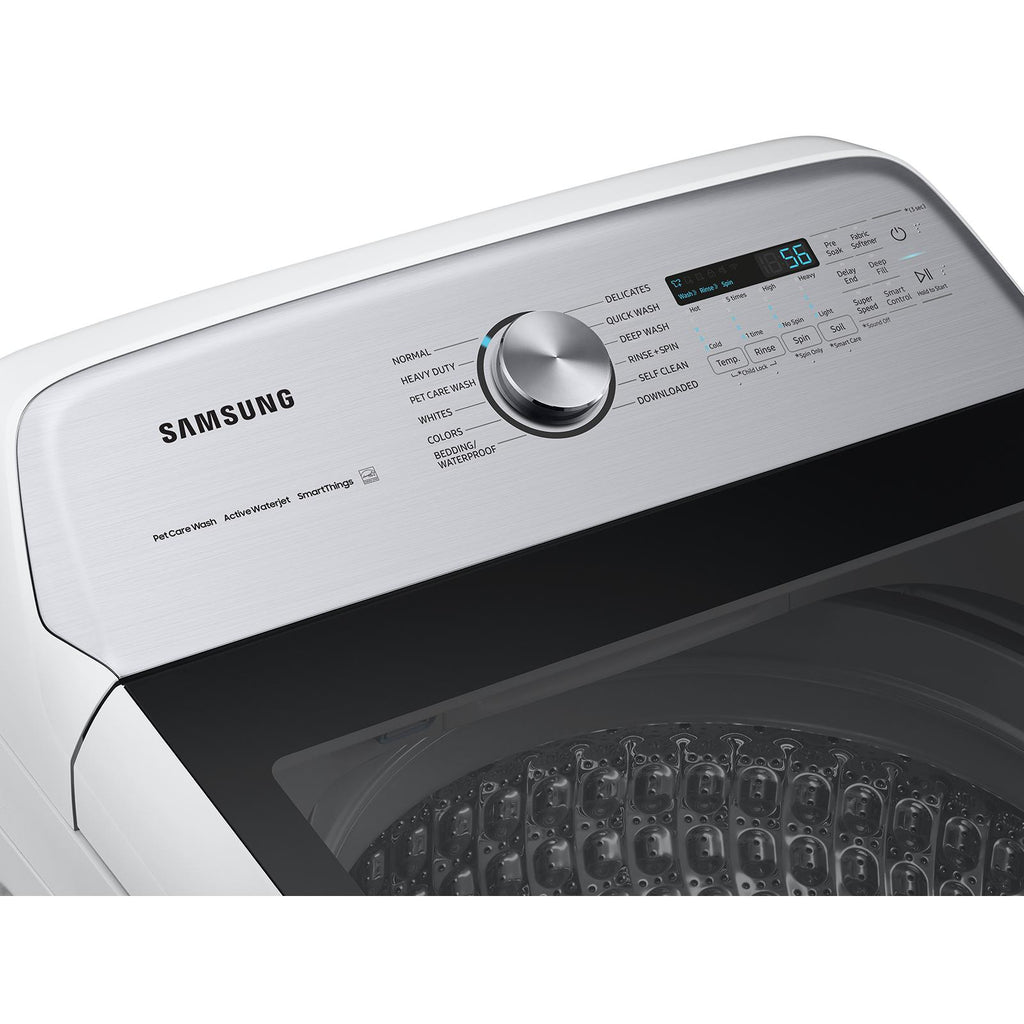

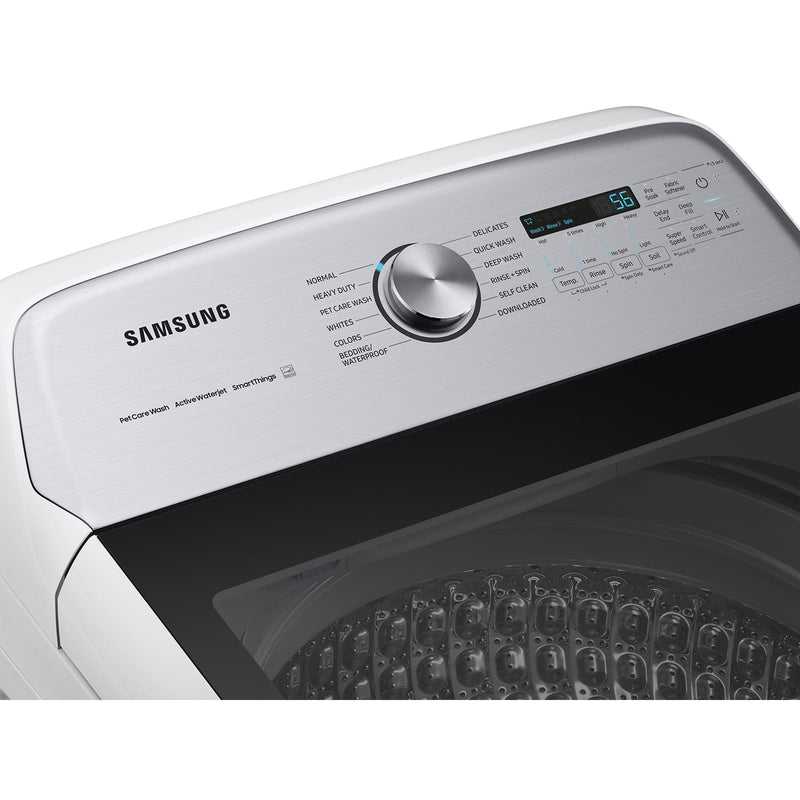

Wash Cycles
• 12 Preset Washing Cycles: Normal, Bedding/Waterproof, Heavy Duty, Colors, Whites, Delicates, Quick Wash, Self Clean, Rinse + Spin, Deep Wash, Pet Care Wash, Downloaded
• 5 Downloadable Washing Cycles: Permanent Press, Wool, Eco Cold, Denim, Power Rinse
• 5 Downloadable Washing Cycles: Permanent Press, Wool, Eco Cold, Denim, Power Rinse
Options
10 Additional Washing Options: Delay End, Presoak, Sound Off, Child Lock, Fabric Softener, Deep Fill, Super Speed, Smart Care, Smart Control, Spin Only
Features
Technologies
• Wi-Fi Connectivity with SmartThings
• Vibration Reduction Technology+
• Swirl+ Tub Interior
• Vibration Reduction Technology+
• Swirl+ Tub Interior
Pet Care
Yes
Wi-Fi
Yes

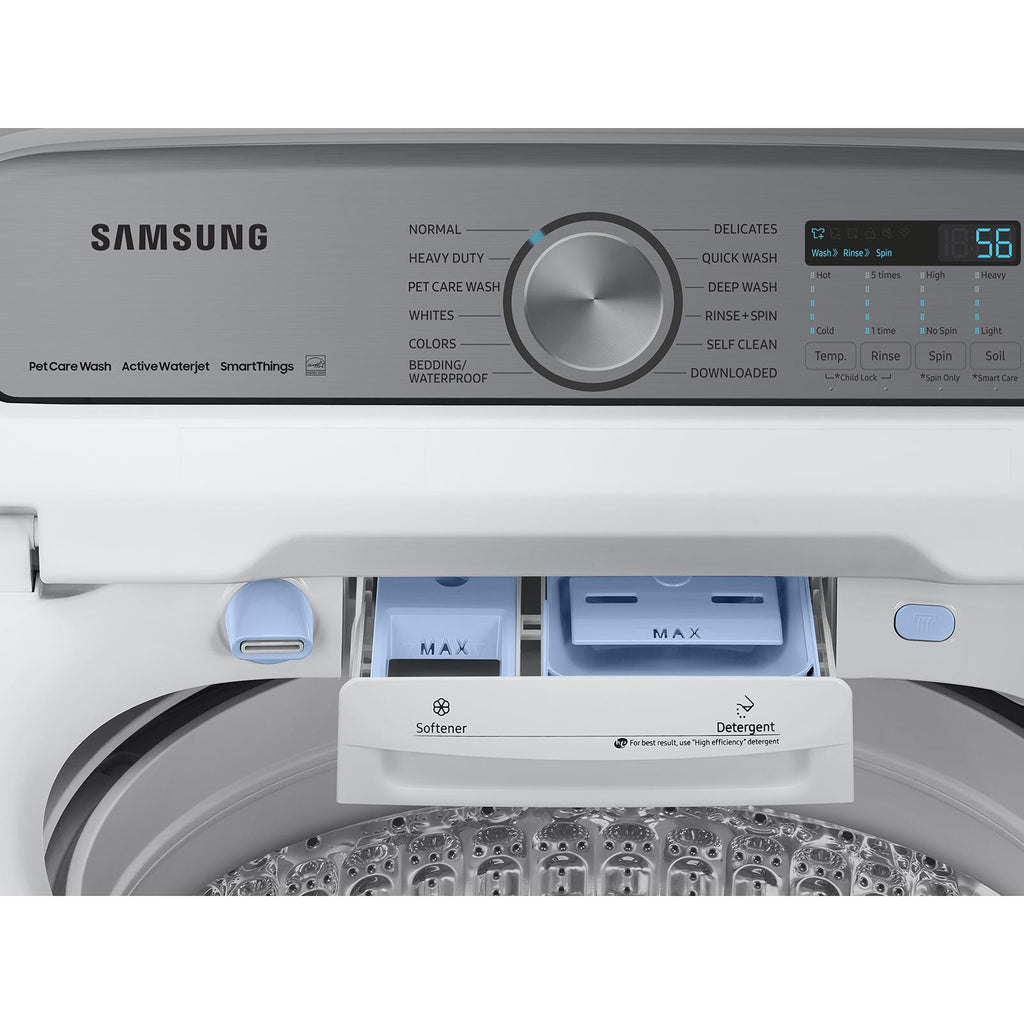

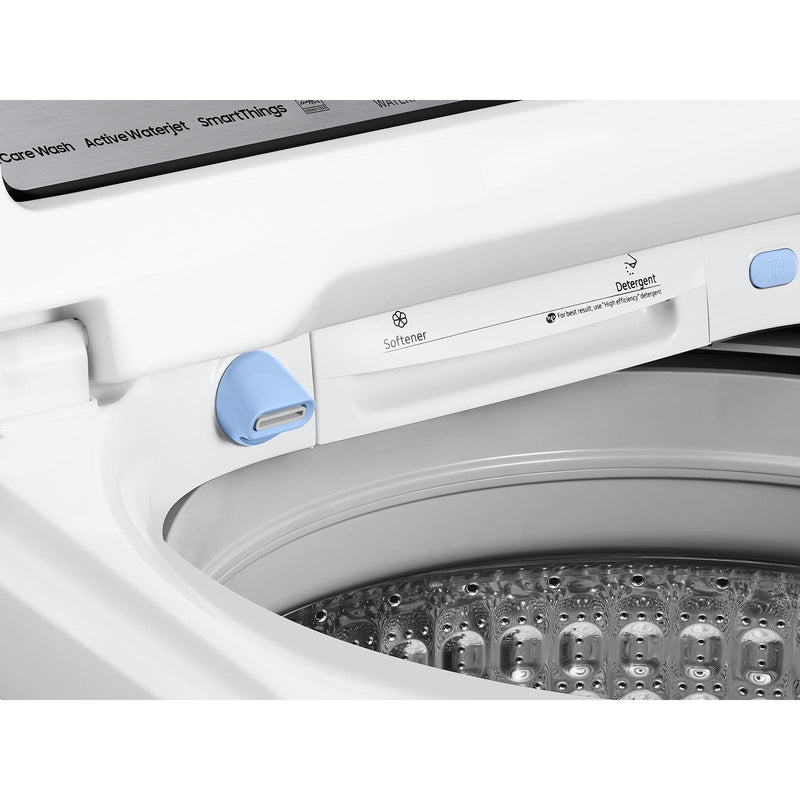

Dispensers
Dispenser Trays: Main Wash, Softener, Bleach
Additional Information
• Pet Care Solution
• Super Speed Wash
• Active WaterJet
• Deep Fill
• Self Clean
• Soft-Close Lid
• Smart Care
• Accessibility (AUI, Braille)
• Digital Inverter Motor
• Child Lock
• 5 Temperature Settings: Hot, Warmer, Warm, Cool, Cold
• 5 Spin Settings: High, Medium High, Medium, Low, No Spin
• 5 Soil Settings: Heavy, Heavy Medium, Normal, Low Medium, Light
• Super Speed Wash
• Active WaterJet
• Deep Fill
• Self Clean
• Soft-Close Lid
• Smart Care
• Accessibility (AUI, Braille)
• Digital Inverter Motor
• Child Lock
• 5 Temperature Settings: Hot, Warmer, Warm, Cool, Cold
• 5 Spin Settings: High, Medium High, Medium, Low, No Spin
• 5 Soil Settings: Heavy, Heavy Medium, Normal, Low Medium, Light
Electrical Information
Information
• Rating: IMEF = 2.3; IWF = 3.8; 120 kWh/yr
• 120 V / 60 Hz
• 15 Amps
• 120 V / 60 Hz
• 15 Amps
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Class Width
28" - 30"
Width
27.56 inch(es) / 70.01 cm
Height
45.81 inch(es) / 116.36 cm
Depth
29.44 inch(es) / 74.77 cm
Weight
134.5 lb(s) / 61.01 kg
Shipping Dimensions
Width
30.13 inch(es) / 76.52 cm
Height
47.69 inch(es) / 121.13 cm
Depth
31.25 inch(es) / 79.38 cm
Weight
143.3 lb(s) / 65 kg
Warranty
Warranty
• One (1) Year Parts and Labor
• Three (3) Years Stainless Steel Tub (Part Only)
• Twenty (20) Years; Washing DIT (Digital
• Inverter Motor) Motor Part (Part Only)
• Five (5) Years Washing Motor Part (Part Only)
• Three (3) Years Stainless Steel Tub (Part Only)
• Twenty (20) Years; Washing DIT (Digital
• Inverter Motor) Motor Part (Part Only)
• Five (5) Years Washing Motor Part (Part Only)
UPC
UPC#
887276760377
