Features
RAPID BOIL
Up to 3.3 kW power element offers intense heat and precise control to quickly boil water or maintain a low even simmer.

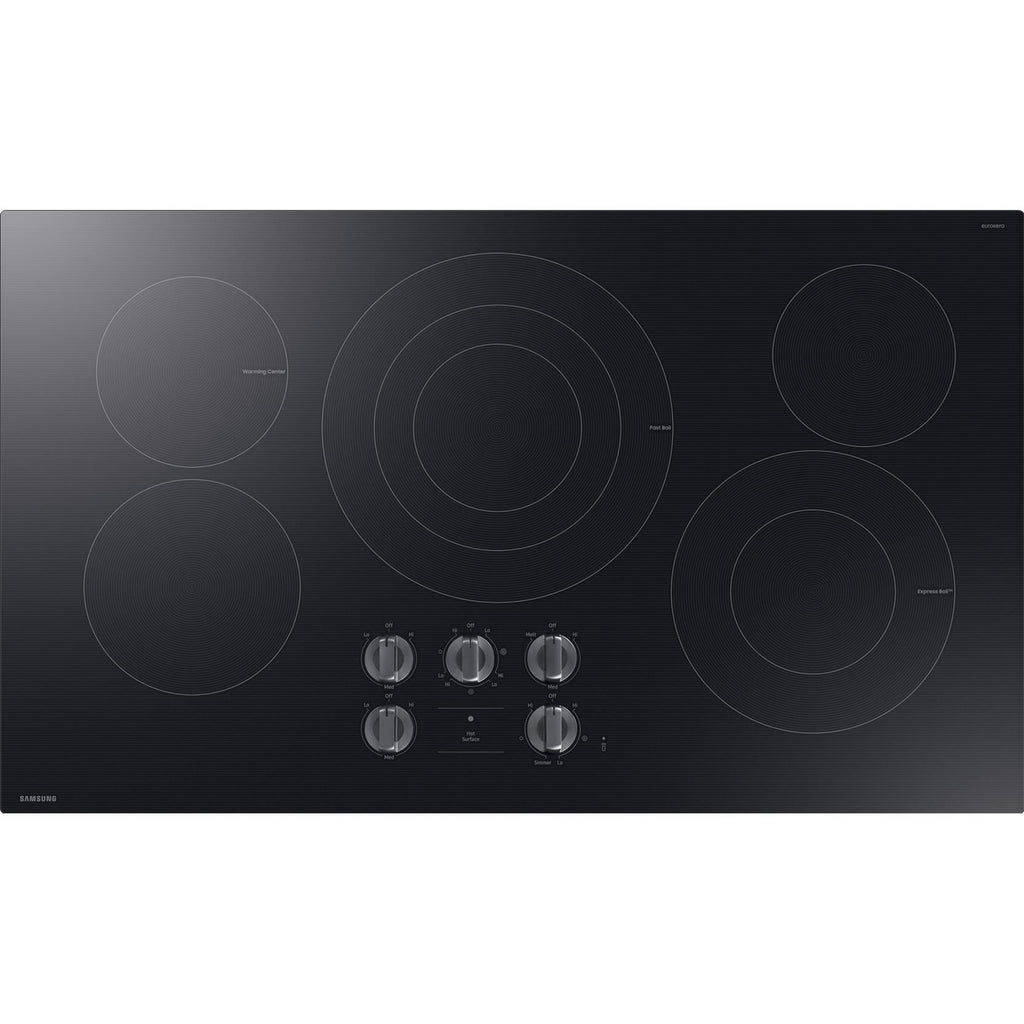

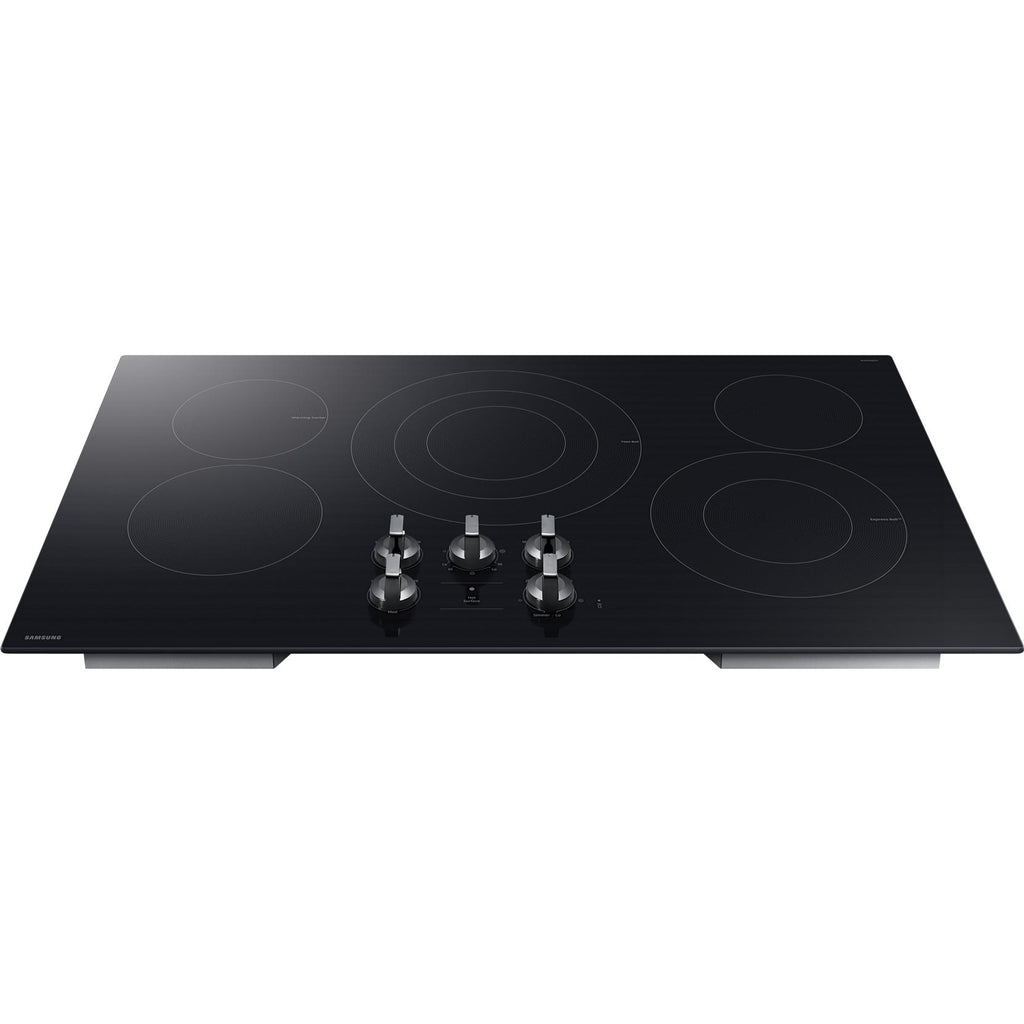

5 ELEMENT FLEXIBLE COOKTOP

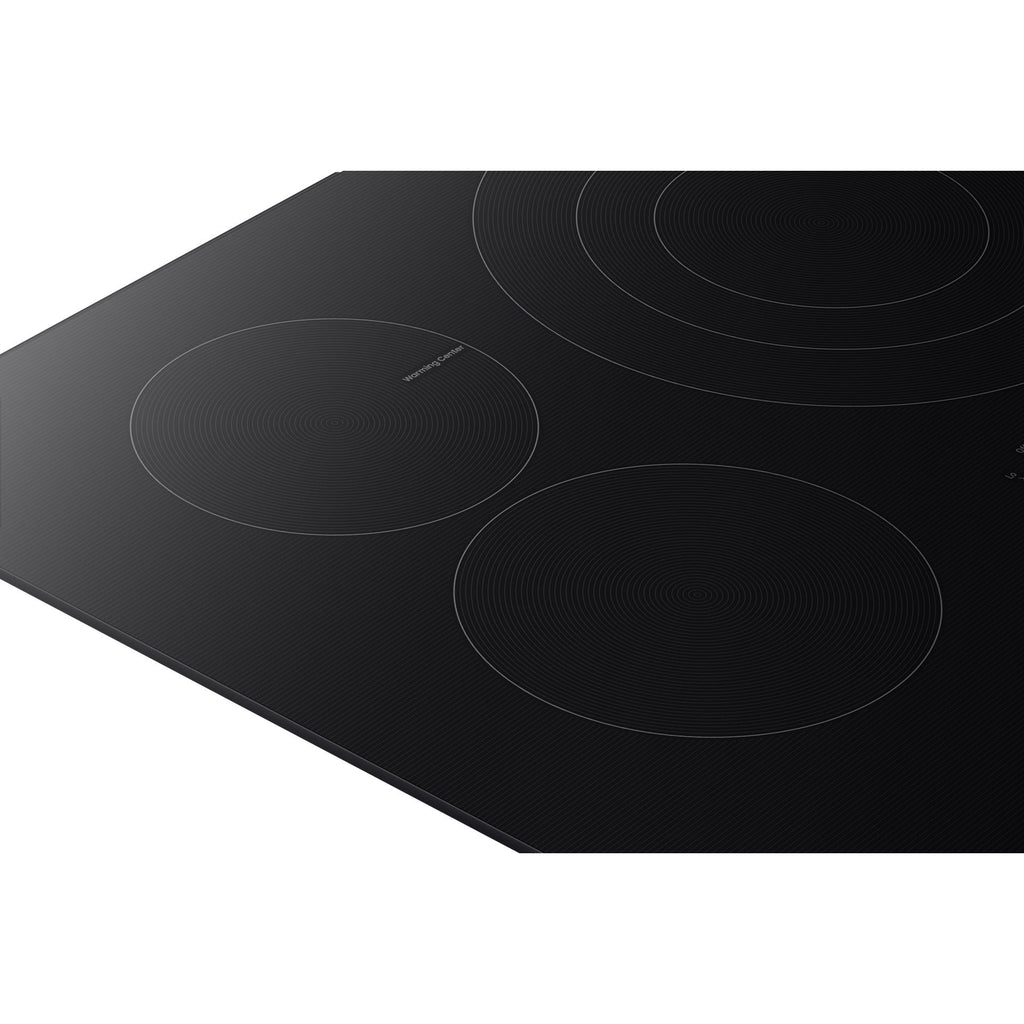

Whether you're boiling water, melting chocolate, or simmering sauce, the 5 burner cooktop has an element for your needs. Plus, the Warming Center keeps your food ready-to-serve.

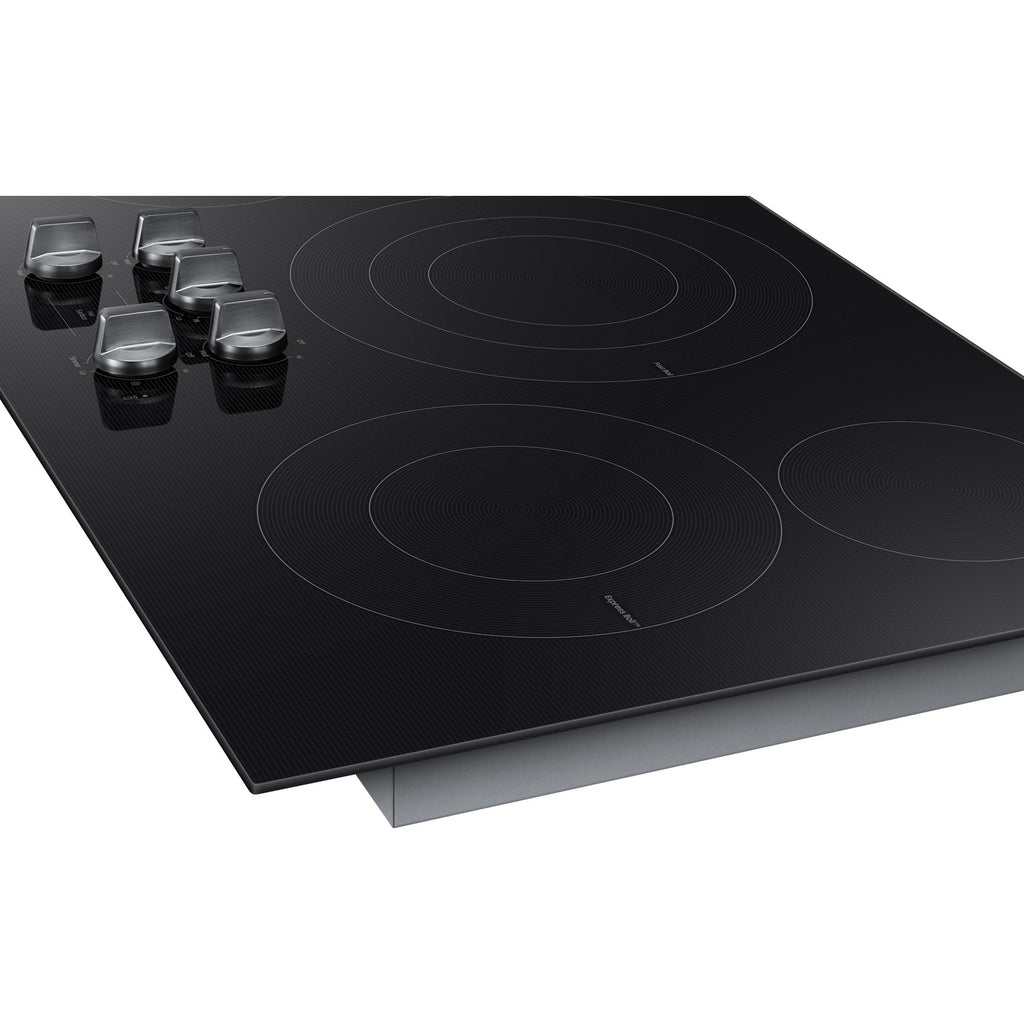

EASY-TO-CLEAN GLASS, CERAMIC COOKTOP
The smooth glass, ceramic electric cooktop not only enhances the sleek, modern look but also makes cleaning effortless.
HOT SURFACE INDICATOR LIGHT
Hot Surface Indicator Light on the electric cooktop lets you know when the surface is hot.

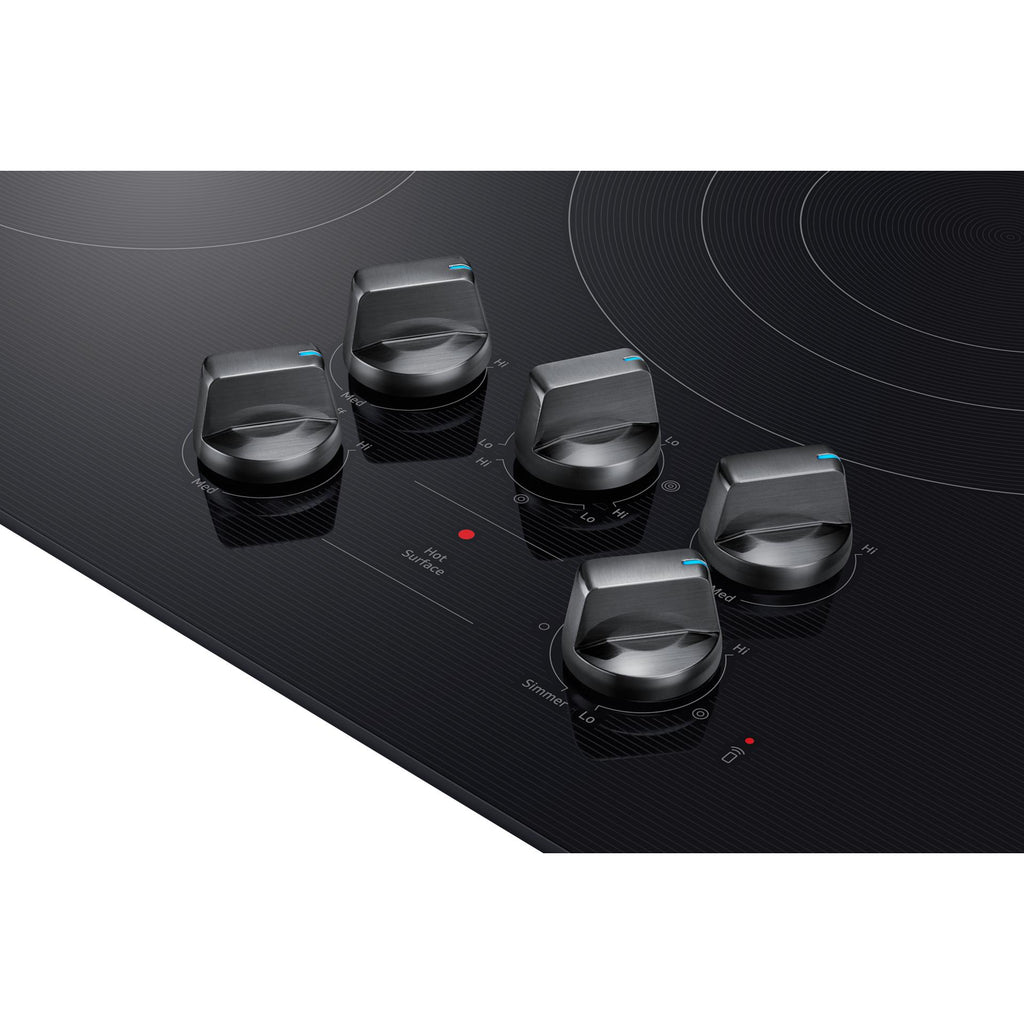

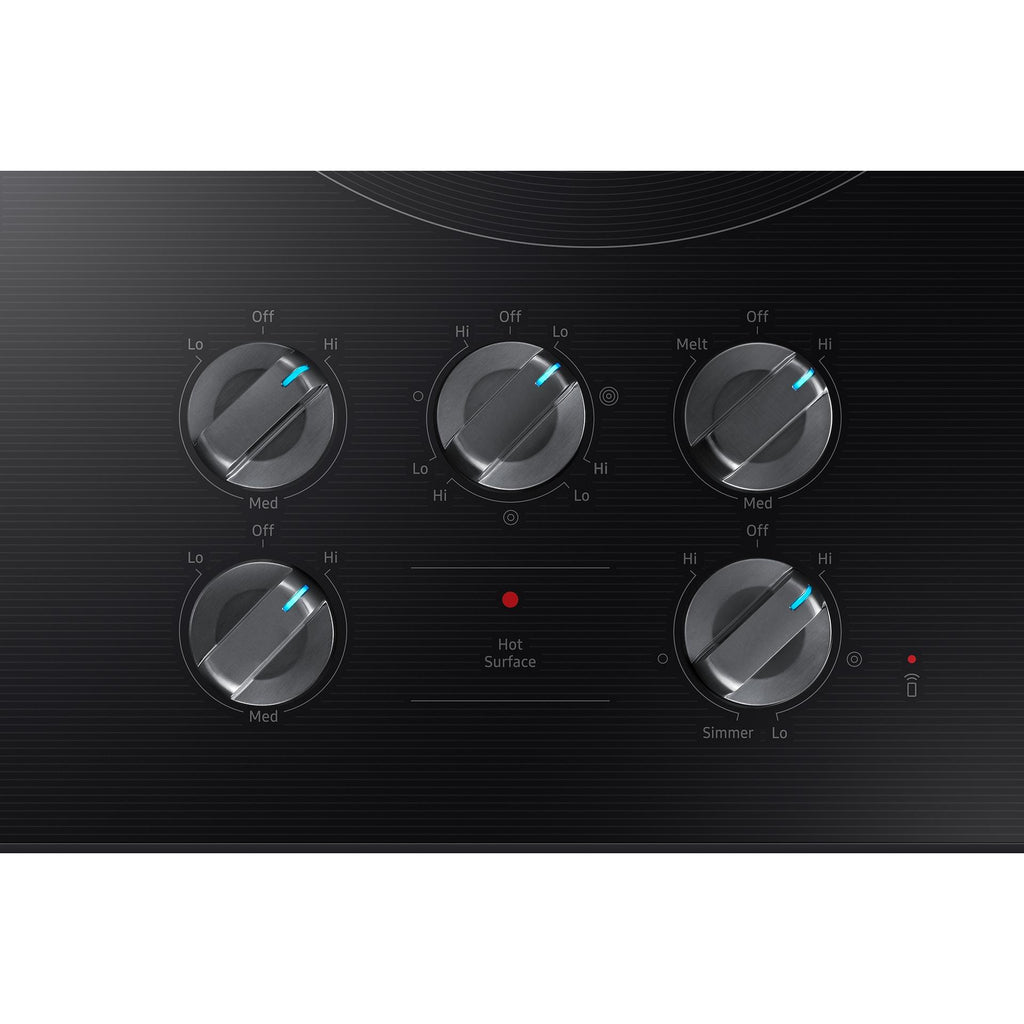

EASY-ACCESS COOKING CONTROLS - FRONT CONTROLS
The front controls are conveniently located for easy access, allowing you to effortlessly adjust heat levels for cooking.
WI-FI CONNECTIVITY
Monitor and control your cooktop or hood from anywhere.
ENERGY STAR® CERTIFIED
The cooktop has been independently evaluated against strict power consumption specifications and ENERGY STAR® certified for energy efficiency.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front: 1,500 W
• Left Rear: 100 W
• Right Front: 3,300 W (Simmer/Rapid Boil)
• Right Rear: 1,200 W (Melt)
• Center: 3,000 W
• Left Rear: 100 W
• Right Front: 3,300 W (Simmer/Rapid Boil)
• Right Rear: 1,200 W (Melt)
• Center: 3,000 W
Burner/Element Size
• Left Front: 7"
• Right Front: 6" / 9"
• Right Rear: 6"
• Center: 6" / 9"/ 12"
• Right Front: 6" / 9"
• Right Rear: 6"
• Center: 6" / 9"/ 12"
Elements
Smoothtop
Features
Wi-Fi
Yes
Additional Information
• Blue LED Illuminated Knobs
• Front Controls
• Rapid Boil Burner
• Wi-Fi Connectivity
• Hot Surface Indicator Light
• Easy-to-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
• Front Controls
• Rapid Boil Burner
• Wi-Fi Connectivity
• Hot Surface Indicator Light
• Easy-to-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
Electrical Information
Information
• Total Power: 9.1 kW
• Power Source: 240V/60 Hz/40A
• Power Source: 240V/60 Hz/40A
Certifications and Approvals
ADA Compliant
Yes
Information
ENERGY STAR® Rated: 195 kWh/yr
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
5.13 inch(es) / 13.02 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
43.41 lb(s) / 19.69 kg
Shipping Dimensions
Width
40.37 inch(es) / 102.55 cm
Height
7.25 inch(es) / 18.42 cm
Depth
25.06 inch(es) / 63.66 cm
Weight
48.5 lb(s) / 22 kg
Warranty
Warranty
• One (1) Year All Parts and Labor
• Five (5) Years Parts Warranty for Glass Cooktop and Radiant Heater
• Five (5) Years Parts Warranty for Glass Cooktop and Radiant Heater
UPC
UPC#
198957115400
