Features

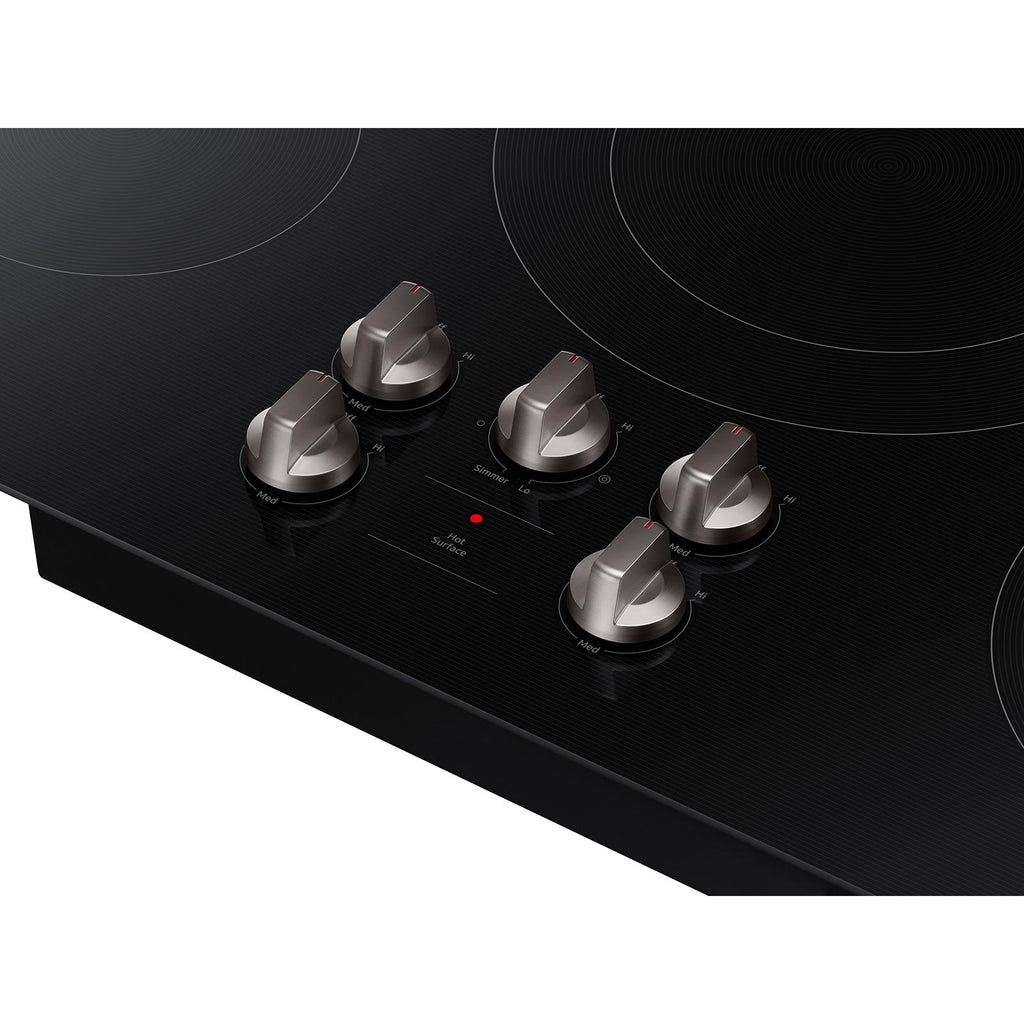

EASY TO REACH CONTROLS - FRONT CONTROLS
Front Controls are easy to reach.
INDICATES HOT SURFACE - INDICATOR LIGHT
Hot Surface Indicator light lets you know the surface is hot.
EASY CLEANUP
Smooth glass ceramic surface and dishwasher safe knobs make cleaning easy.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front: 1.5 kW
• Left Rear: 1 kW (Warming Heater)
• Right Front: 2.5 kW
• Right Rear: 1.2 kW (Melt)
• Center: 3 kW (Fast Boil & Simmer)
• Left Rear: 1 kW (Warming Heater)
• Right Front: 2.5 kW
• Right Rear: 1.2 kW (Melt)
• Center: 3 kW (Fast Boil & Simmer)
Burner/Element Size
• Left Front: 7"
• Left Rear: 6"
• Right Front: 9"
• Right Rear: 6"
• Center: 9" / 12"
• Left Rear: 6"
• Right Front: 9"
• Right Rear: 6"
• Center: 9" / 12"
Elements
Smoothtop
Surface Features
Glass Ceramic Surface
Features
Technologies
SmartThings
Digital Display
Yes
Additional Information
• Flexible Cooktop
• Front Controls
• Hot Surface Indicator Light
• Easy-to-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
• Front Controls
• Hot Surface Indicator Light
• Easy-to-Clean Glass, Ceramic Cooktop
• Dishwasher-Safe Knobs
Electrical Information
Information
• Total Power: 8.3 kW
• Power Source: 240V / 60 Hz / 40A
• 195 kWh/yr
• Power Source: 240V / 60 Hz / 40A
• 195 kWh/yr
Certifications and Approvals
ADA Compliant
Yes
Information
Energy Star Certification
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
5.13 inch(es) / 13.02 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
41.91 lb(s) / 19.01 kg
Additional Dimensions
Cooktop Cutout Dimensions: 33 3/4" x 5 1/8" x 19"
Shipping Dimensions
Width
40.37 inch(es) / 102.55 cm
Height
8.44 inch(es) / 21.43 cm
Depth
25.06 inch(es) / 63.66 cm
Weight
47 lb(s) / 21.32 kg
Warranty
Warranty
• One (1) Year All Parts and Labor
• Five (5) Years Parts Warranty for
• Glass Cooktop and Radiant Heater
• Five (5) Years Parts Warranty for
• Glass Cooktop and Radiant Heater
UPC
UPC#
887276937212
