Features
3-SPEED VENTILATION
The vent can handle any cooking style with 3 ventilating speeds.

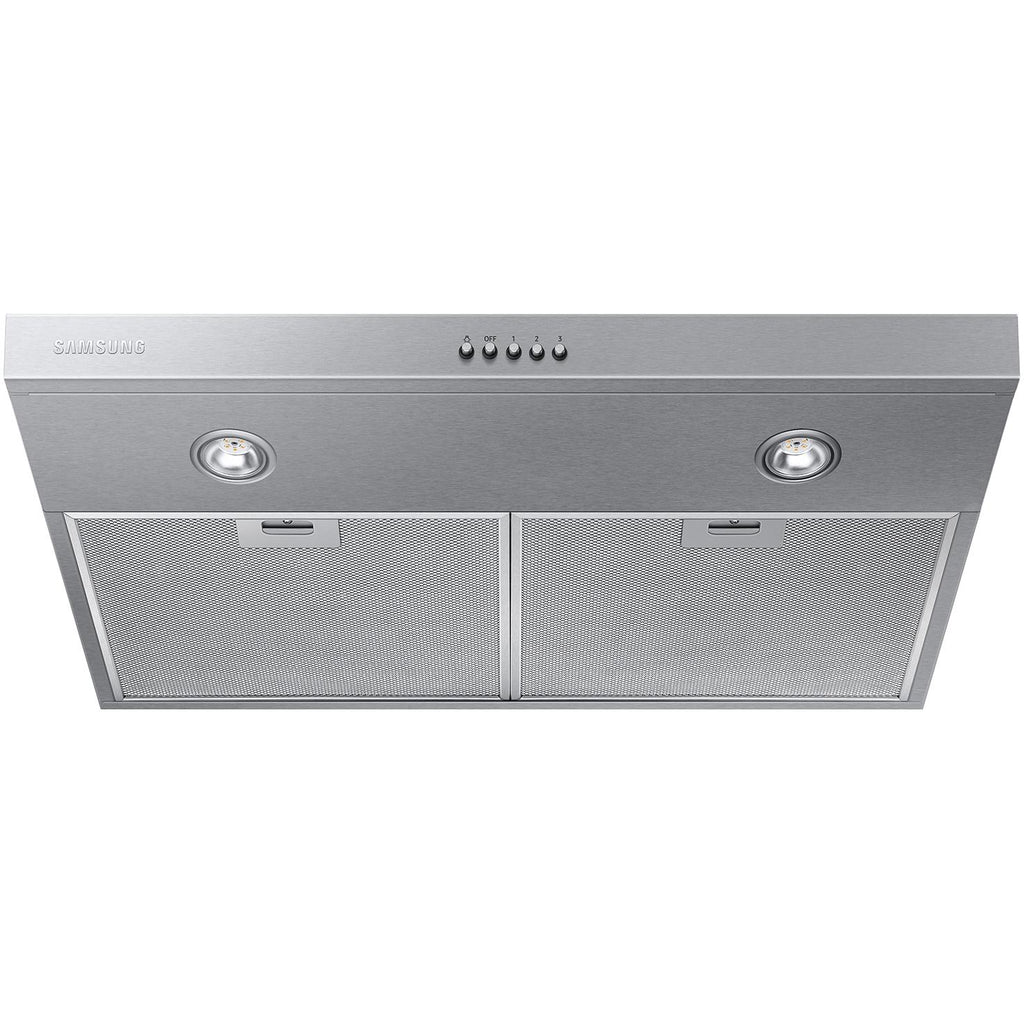

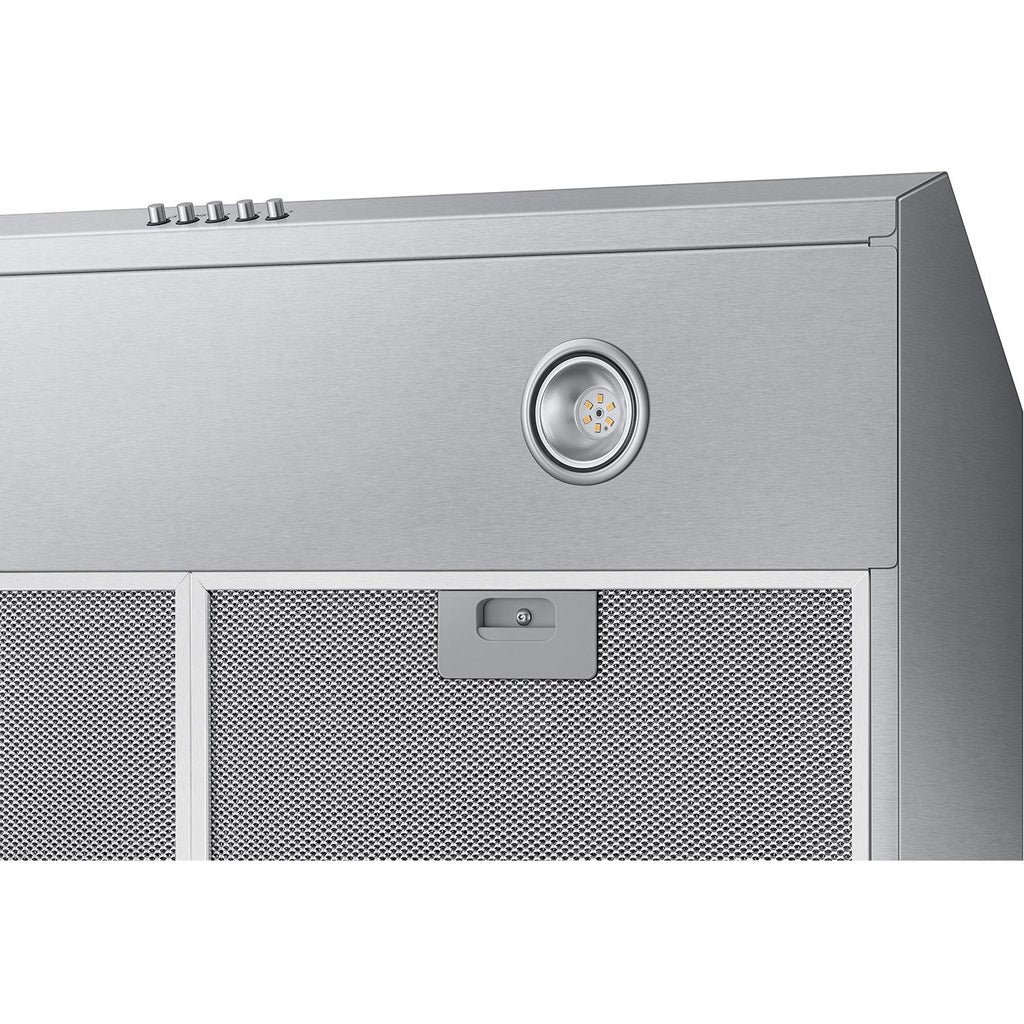

BRIGHTEN YOUR COOKTOP
LED lights illuminate the cooktop and are brighter and more energy efficient.*
* Than incandescent or halogen lights.

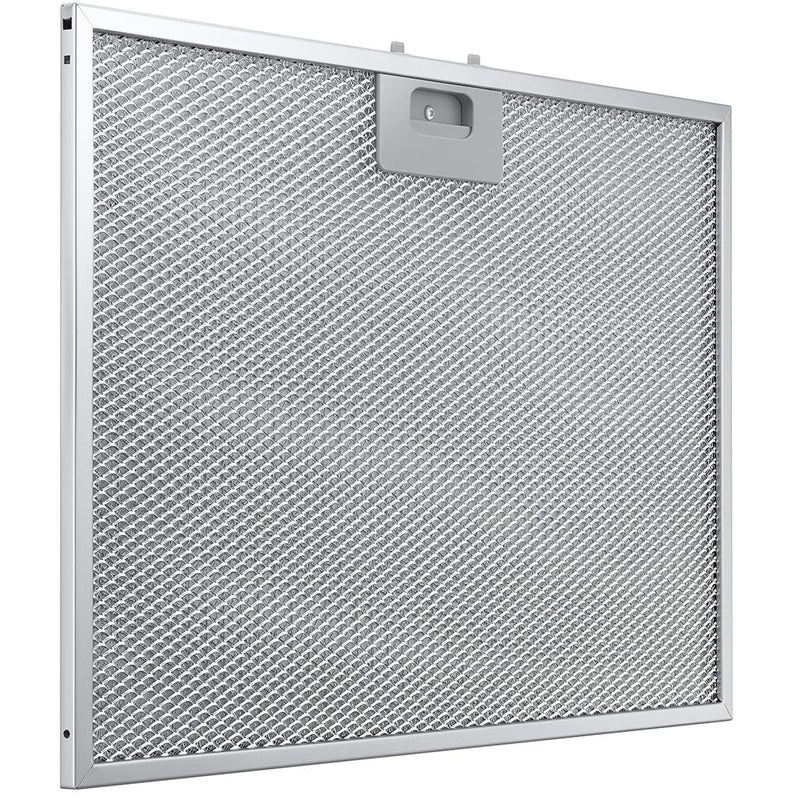

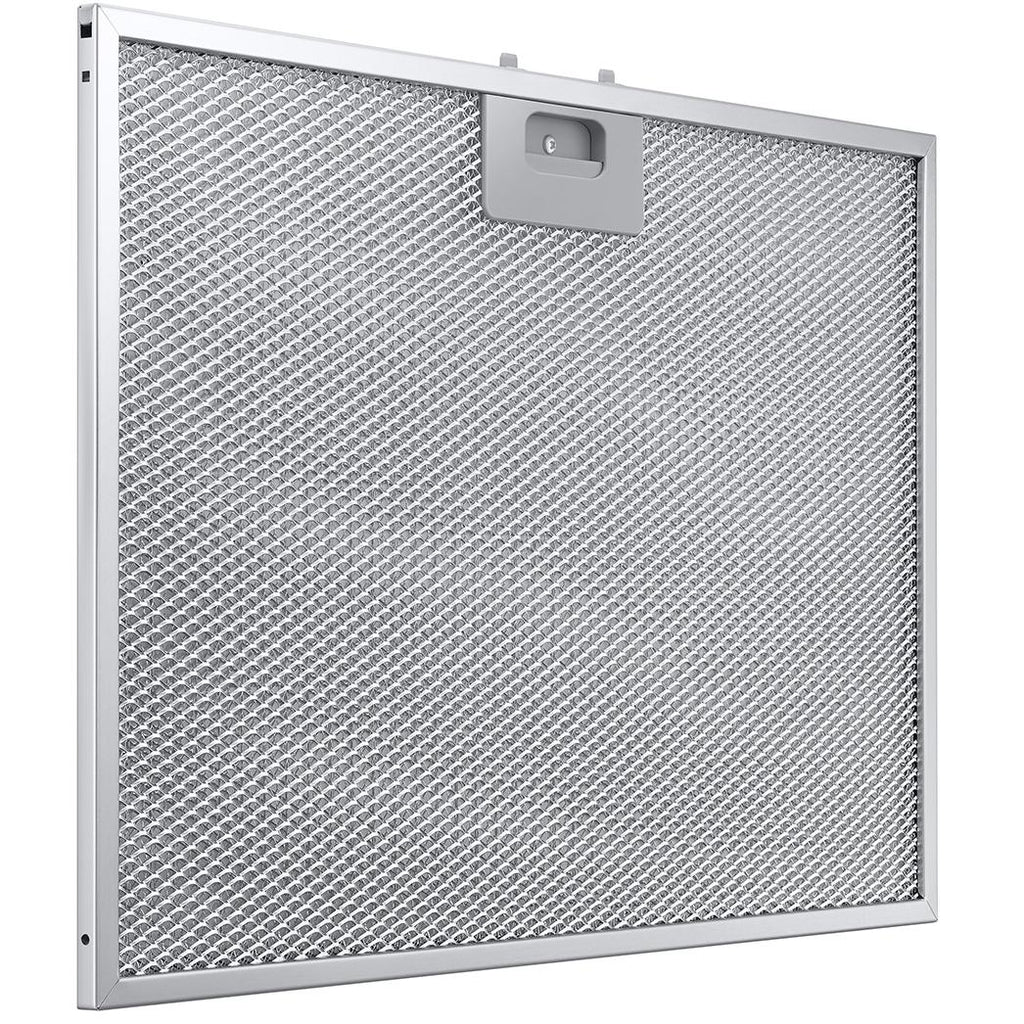

WASHABLE ALUMINUM MESH FILTERS
Durable aluminum filters protect the exhaust fan and trap oil and dust before it clogs the motor or slows air flow. They're dishwasher safe and super easy to clean.
Specifications
General
Blower Included
Yes
Airflow
350 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel

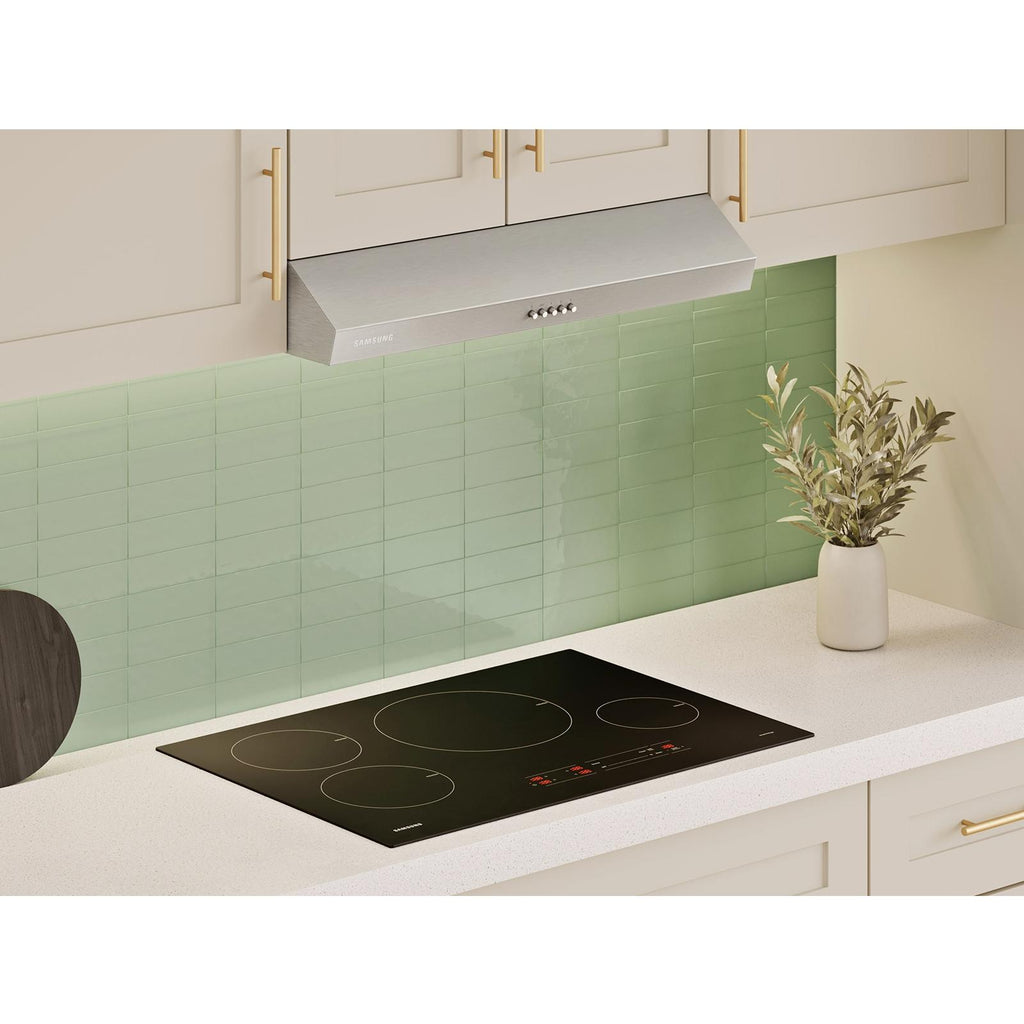

Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Speeds
3
Additional Information

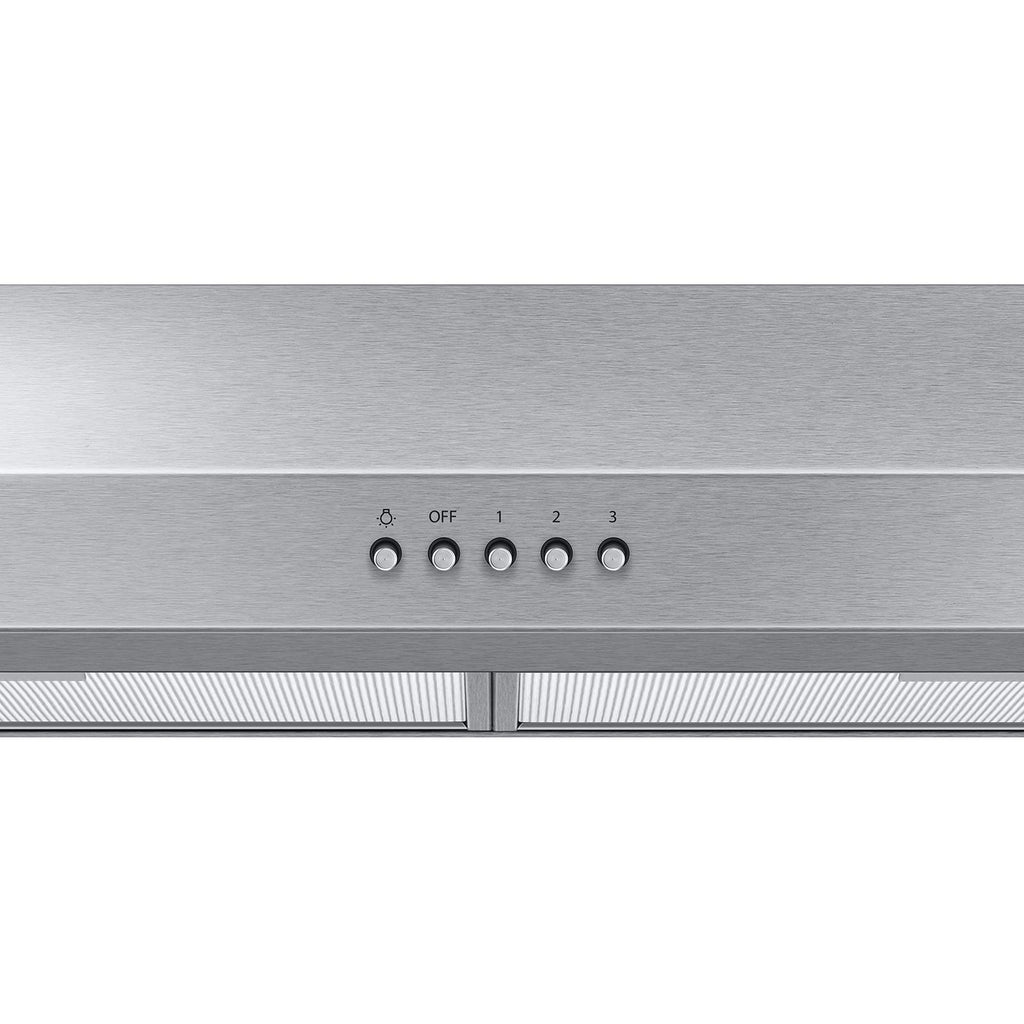

• Control Type: Mechanical Buttons
• LED lighting
• Washable Aluminum Mesh Filters
• Noise Level: 44 min. and 60 max. dBA (3 min. / 8.5 max. Sones)
• Venting Type: Exterior and Recirculating Capable
• LED lighting
• Washable Aluminum Mesh Filters
• Noise Level: 44 min. and 60 max. dBA (3 min. / 8.5 max. Sones)
• Venting Type: Exterior and Recirculating Capable
Electrical Information
Information
• 120V / 60 Hz
• 15 A
• 46W
• 15 A
• 46W
Certifications and Approvals
Information
ADA Compliant
Accessories
Optional
Charcoal Filter: DG81-03613A
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
4.94 inch(es) / 12.54 cm
Depth
18.87 inch(es) / 47.94 cm
Weight
19.8 lb(s) / 8.98 kg
Shipping Dimensions
Width
31.31 inch(es) / 79.53 cm
Height
6.81 inch(es) / 17.3 cm
Depth
22 inch(es) / 55.88 cm
Weight
22 lb(s) / 9.98 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
887276632704
