Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
PrintProof™ Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
39 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Auto
• Heavy
• Normal
• 1-Hour
• Download Cycle
• Heavy
• Normal
• 1-Hour
• Download Cycle
Options
• Steam
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Remote
• Wi-Fi AP Mode
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Remote
• Wi-Fi AP Mode
Features
Technologies

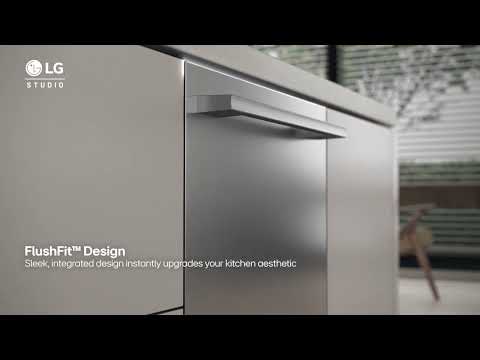

• FlushFit™ Design
• QuadWash® Pro
• Dynamic Heat Dry™ with AutoVent™ Dry
• BlastZone™ Bottle Wash
• Direct Drive Motor™
• Wi-Fi Enabled
• QuadWash® Pro
• Dynamic Heat Dry™ with AutoVent™ Dry
• BlastZone™ Bottle Wash
• Direct Drive Motor™
• Wi-Fi Enabled
3rd Rack System
Yes
Control Lock
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Maximum Height of Upper Rack: 7.1" (180 mm)
• Maximum Height of Lower Rack: 12.5" (320 mm)
• Easy Rack Plus
• Fold Down Tines Upper: All Foldable
• Fold Down Tines Lower: Half Smart FD & Half Normal FD
• Rack Handle / Deco
• Rack Color (Handle / Tine): Dark Grey
• Cup Rack
• Cup Rack Color: Cup Rack (Dark Grey), Rubber (Noble Gray)
• Height Adjustable Easy One Touch (3 Levels)
• Cutlery Baskets
• 3rd Rack: Normal Rail
• Gliding Type Upper: Gliding Rail
• Gliding Type Lower: Gliding Wheel
• 1-Hour Wash & Dry
• End of Cycle Indicator: Beeper + END Indication on Display
• Hidden Water Heater
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor
• BPA-Free Nylon Coated Racks and Tines
• Anti-Bacterial Treatment (Drain Hose)
• Balance Door
• Maximum Height of Lower Rack: 12.5" (320 mm)
• Easy Rack Plus
• Fold Down Tines Upper: All Foldable
• Fold Down Tines Lower: Half Smart FD & Half Normal FD
• Rack Handle / Deco
• Rack Color (Handle / Tine): Dark Grey
• Cup Rack
• Cup Rack Color: Cup Rack (Dark Grey), Rubber (Noble Gray)
• Height Adjustable Easy One Touch (3 Levels)
• Cutlery Baskets
• 3rd Rack: Normal Rail
• Gliding Type Upper: Gliding Rail
• Gliding Type Lower: Gliding Wheel
• 1-Hour Wash & Dry
• End of Cycle Indicator: Beeper + END Indication on Display
• Hidden Water Heater
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor
• BPA-Free Nylon Coated Racks and Tines
• Anti-Bacterial Treatment (Drain Hose)
• Balance Door
Electrical Information
Information
Energy Use (kWh/Year): 220 kWh/Year
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.63 inch(es) / 85.41 cm
Depth (Without Handle)
23.75 inch(es) / 60.33 cm
Weight
92.99 lb(s) / 42.18 kg
Additional Dimensions
• Depth with Door Closed (Handle): 23 3/4" (603 mm) / 26 1/8" (664 mm)
• Depth with Door Open: 48 1/2"
• Clearance (W x H x D): 24" x 24" x 33 5/8"
• Depth with Door Open: 48 1/2"
• Clearance (W x H x D): 24" x 24" x 33 5/8"
Shipping Dimensions
Width
28 inch(es) / 71.12 cm
Height
29.63 inch(es) / 75.25 cm
Depth
34.87 inch(es) / 88.58 cm
Weight
103.99 lb(s) / 47.17 kg
Warranty
Warranty
• Parts and Labor: 2 Years
• Main Control Board and Rack Parts: 5 Year Limited
• Stainless Steel Door Liner and Tub: 5 Years
• Direct Drive Motor: 10 Years
• Main Control Board and Rack Parts: 5 Year Limited
• Stainless Steel Door Liner and Tub: 5 Years
• Direct Drive Motor: 10 Years
