Features
PROBAKE CONVECTION™

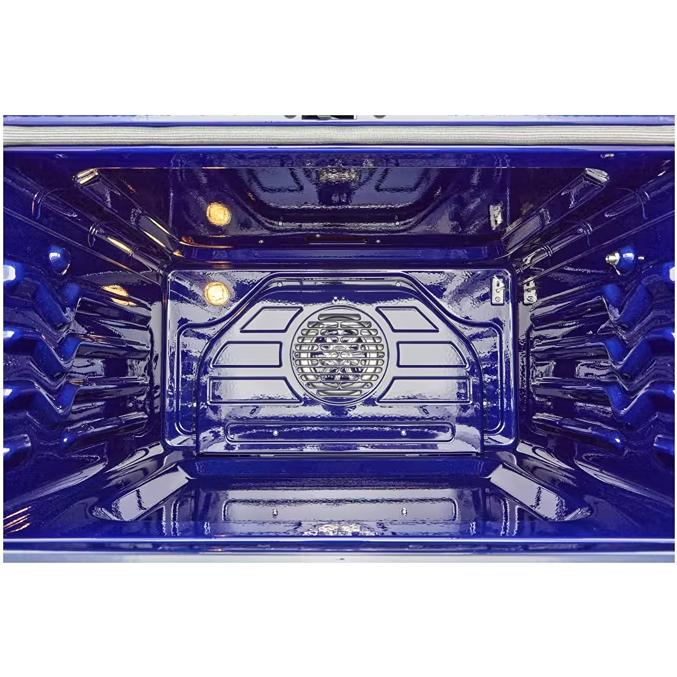

No more getting burned by inconsistent baking. LG ProBake Convection™ delivers even, precise heat on every rack, every time. Inspired by pro ranges, it’s the first freestanding range with the heating element moved from the bottom of the oven to the back, so your cookies, cakes, roasts and more are perfectly browned every time.
AIR FRY
With huge capacity and no preheat needed, make enough crunchy favorites like wings, fries and more to feed a crowd while saving time and counter space—Air Fry basket included.
SMOOTHTOUCH™ CONTROLS
Activate and control temperature settings with the touch of a finger.
SMARTTHINQ®
With the LG SmartThinQ® app, you can control your smart oven from anywhere so you don’t have to get up to check how much time is remaining. You can also start preheating and turn the oven on or off from your smartphone, or with voice commands—it even works with the Google Assistant.
Additional Features
ULTRAHEAT™
UltraHeat™ is one of the most powerful burners available in a freestanding range. It enables you to bring large amounts of water to a rapid boil resulting in faster cooking time.
AIR SOUS VIDE
Mirror the traditional French water-based cooking method right in your oven—LG Air Sous Vide uses precise, low temperatures and airflow around vacuum sealed meat, fish and poultry so they’re tender, juicy and never overcooked.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop

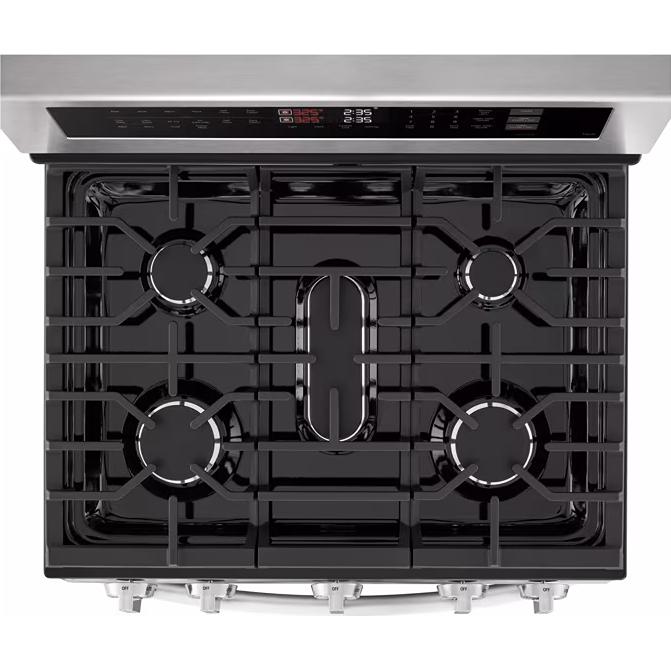

Burners/Elements
5
Burners/Elements Output
• Burner Simmer / BTU - Left Front: 670
• Burner Simmer / BTU - Right Front: 1500
• Burner Simmer / BTU - Right Rear: 1270
• Burner/BTU - Center (LNG/LPG): 10,000 / 10,000
• Burner/BTU - Left Front: 17,000 / 12,000 (SuperBoil™)
• Burner/BTU - Left Rear: 9,100 / 7,500
• Burner/BTU - Right Front: 20,000 / 12,500 (UltraHeat™)
• Burner/BTU - Right Rear: 5,000 / 4,000
• Burner Simmer / BTU - Right Front: 1500
• Burner Simmer / BTU - Right Rear: 1270
• Burner/BTU - Center (LNG/LPG): 10,000 / 10,000
• Burner/BTU - Left Front: 17,000 / 12,000 (SuperBoil™)
• Burner/BTU - Left Rear: 9,100 / 7,500
• Burner/BTU - Right Front: 20,000 / 12,500 (UltraHeat™)
• Burner/BTU - Right Rear: 5,000 / 4,000
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 6.9 cu.ft.
• Lower Oven Capacity (cu. ft.): 4.3 cu.ft.
• Upper Oven Capacity (cu. ft.): 2.6 cu.ft.
• Lower Oven Capacity (cu. ft.): 4.3 cu.ft.
• Upper Oven Capacity (cu. ft.): 2.6 cu.ft.
Number of Ovens
Double
Programs
Bake, Convection Bake, Convection Roast, Proof, Warm, Keep Warm, Frozen meal, Air Sous-vide, Air Fry, EasyClean®, Self Clean, Delayed Timed Cook, Timed Cook
Features
Technologies
• ProBake Convection®
• Oven Door Feature: WideView™ Window
• Oven Control Type: SmoothTouch™ Glass Controls
• ThinQ® Smart Technology
• Hood / OTR / Cooktop Sync
• Voice Control
• 3rd Party Recipe App: Sidechef
• Check & Control
• SmartDiagnosis™
• ThinQ Care™
• ThinQ UP™
• Oven Door Feature: WideView™ Window
• Oven Control Type: SmoothTouch™ Glass Controls
• ThinQ® Smart Technology
• Hood / OTR / Cooktop Sync
• Voice Control
• 3rd Party Recipe App: Sidechef
• Check & Control
• SmartDiagnosis™
• ThinQ Care™
• ThinQ UP™
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Handle Type: Curved Bar
• Automatic Safety Shut-Off: 12 hrs
• Clock: 12hr or 24hr
• Display: LED Display
• Language: English
• Temperature Unit of Measure: Fahrenheit / Celcius
• Timed Cook
• Automatic Safety Shut-Off: 12 hrs
• Clock: 12hr or 24hr
• Display: LED Display
• Language: English
• Temperature Unit of Measure: Fahrenheit / Celcius
• Timed Cook
Electrical Information
Information
• Amp at 120V: 8.5A
• KW & Amp Rating at 120V: 8.5A
• kW at 120V: 996W
• Required Power Supply (amp): 120VAC
• KW & Amp Rating at 120V: 8.5A
• kW at 120V: 996W
• Required Power Supply (amp): 120VAC
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
Conversion Kit
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
46.47 inch(es) / 118.03 cm
Depth (Without Handles)
26.84 inch(es) / 68.18 cm
Depth (Including Handles)
29.25 inch(es) / 74.3 cm
Weight
198.86 lb(s) / 90.2 kg
Additional Dimensions
• Oven Interior Dimensions (Upper) (in) (W x H x D): 24 13/16" x 10 13/16" x 19 13/16"
• Oven Interior Dimensions (Lower) (in) (W x H x D): 24 13/16" x 14 1/4" x 19 15/16"
• Height to Cooking Surface: 36"
• Oven Interior Dimensions (Lower) (in) (W x H x D): 24 13/16" x 14 1/4" x 19 15/16"
• Height to Cooking Surface: 36"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
51 inch(es) / 129.54 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
245.15 lb(s) / 111.2 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
048231344159
