Features
HYBRID STAINLESS STEEL INTERIOR
Enjoy the combination of stainless steel on the inner door and a durable plastic tub.
DRY BOOST™
Dry Boost™ Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry.
STEAM + SANI
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes.
AUTO SENSE CYCLE
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.
HIGH WASH PERFORMANCE
Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time.

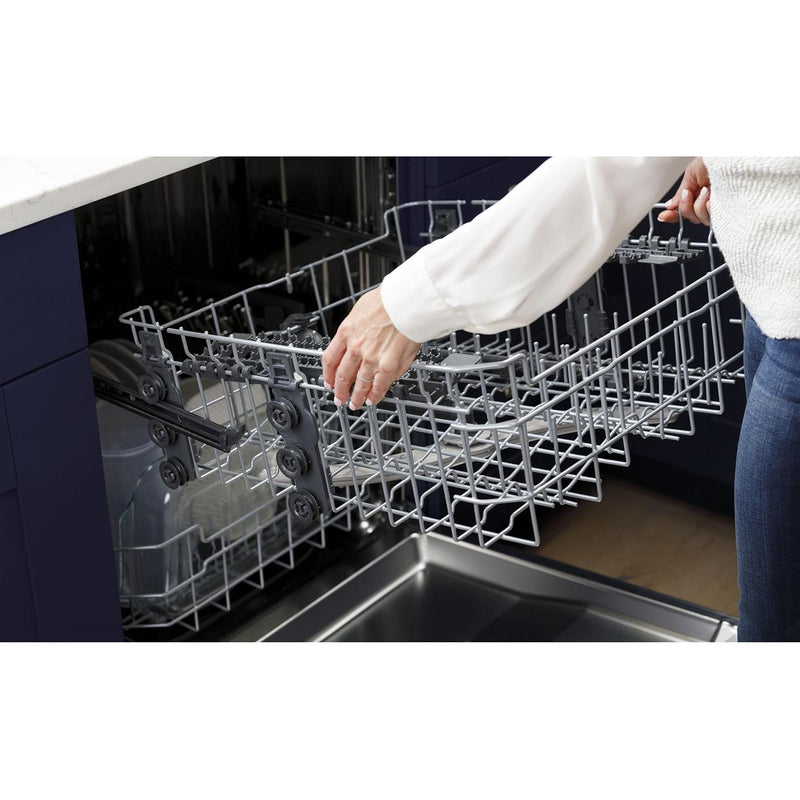

ADJUSTABLE UPPER RACK
Lift or lower the adjustable top rack of the dishwasher to accommodate bottles, large platters, or any items as tall as 10.5" thanks to flexible loading capabilities.
HARD FOOD DISPOSER
The Piranha Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate at 3,600 RPM to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
Additional Features
CHOOSE YOUR CYCLE
This dishwasher offers a heavy wash, normal wash, and a 1-hour wash cycle for outstanding wash performance and clean dishes every time, every load size.
WATER LEAK SENSOR
This dishwasher features Active Flood Protect, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
52 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• AutoSense
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Heavy Wash
• Normal Wash
• 1 Hour Wash
Options
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Steam + Sani (Certified to NSF Standard 184)
• Start/Reset
• Lock Controls
• Delay Start 1-12 Hr. with Countdown
• Steam PreWash
• Dry Boost™ (Normal)
• Wash TempBoost
• Steam + Sani (Certified to NSF Standard 184)
• Start/Reset
• Lock Controls
• Delay Start 1-12 Hr. with Countdown
• Steam PreWash
Features
Technologies
• Piranha™ Hard Food Disposer with removable filter
• Automatic Temperature Control
• Automatic HotStart
• Fill Level Pressure Sensor
• Active Flood Protect
• Automatic Temperature Control
• Automatic HotStart
• Fill Level Pressure Sensor
• Active Flood Protect
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Handle: Towel Bar
• Control Type: Fully Integrated Inlaid Electronic Buttons, 6 Touchpads
• Dishwasher Control Features: 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Calrod Heater
• Dispenser: Detergent, Rinse Aid
• Door Liner: Clean Design with Stainless Steel
• Exterior Style: Traditional
• Latch: Center Pull
• Leveling System: 4 Leveling Legs
• 1 Piece Silverware Basket with 3 Cell Covers
• 1 Utility Shelf with Stem Safe
• Chop stick slots
• Ball-Tipped Tines
• Racking Material: Nylon
• Sensor: Clean Sensor
• Showroom Power Mode
• Tub and Door Liner: Hybrid Stainless Steel Interior
• Tub Liner: Gray Plastic
• Tub Type: Tall Tub
• Wash System: 3-Level
• Water Filtration System: 100% Filtration with Piranha Hard Food Disposer and Removable Filter
• Control Type: Fully Integrated Inlaid Electronic Buttons, 6 Touchpads
• Dishwasher Control Features: 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Calrod Heater
• Dispenser: Detergent, Rinse Aid
• Door Liner: Clean Design with Stainless Steel
• Exterior Style: Traditional
• Latch: Center Pull
• Leveling System: 4 Leveling Legs
• 1 Piece Silverware Basket with 3 Cell Covers
• 1 Utility Shelf with Stem Safe
• Chop stick slots
• Ball-Tipped Tines
• Racking Material: Nylon
• Sensor: Clean Sensor
• Showroom Power Mode
• Tub and Door Liner: Hybrid Stainless Steel Interior
• Tub Liner: Gray Plastic
• Tub Type: Tall Tub
• Wash System: 3-Level
• Water Filtration System: 100% Filtration with Piranha Hard Food Disposer and Removable Filter
Electrical Information
Information
• Calrod Heater Watts: 800/500
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Energy Consumption (kWh/year): 240
• Hertz: 60
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Energy Consumption (kWh/year): 240
• Hertz: 60
Certifications and Approvals
Energy Star Certified
Yes
Information
Sabbath Mode
Accessories
Optional
• Optional 3rd rack (GPF3RACK)
• Optional cord kit (GPFCORD)
• Optional 12' drain hose kit (WD24X10065)
• Optional cord kit (GPFCORD)
• Optional 12' drain hose kit (WD24X10065)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
20 inch(es) / 50.8 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
60.01 lb(s) / 27.22 kg
Additional Dimensions
• Cutout Depth (in): 24 in
• Cutout Height (in): 33 1/2 in
• Cutout Width (in): 24 in
• Depth with Door Open: 27 1/2 in
• Height w/ Legs Retracted - Minimum Height: 33.375 in
• Height w/Legs Extended - Maximum Height: 34.625 in
• Cutout Height (in): 33 1/2 in
• Cutout Width (in): 24 in
• Depth with Door Open: 27 1/2 in
• Height w/ Legs Retracted - Minimum Height: 33.375 in
• Height w/Legs Extended - Maximum Height: 34.625 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.5 inch(es) / 90.17 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
75 lb(s) / 34.02 kg
Warranty
Warranty
• Labor Warranty: Limited 1-year entire appliance
• Parts Warranty: Limited 1-year entire appliance
• Warranty Notes: See written warranty for full details
• Parts Warranty: Limited 1-year entire appliance
• Warranty Notes: See written warranty for full details
UPC
UPC#
084691973911
