Features
FIT GUARANTEE
Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit to make replacement easy.

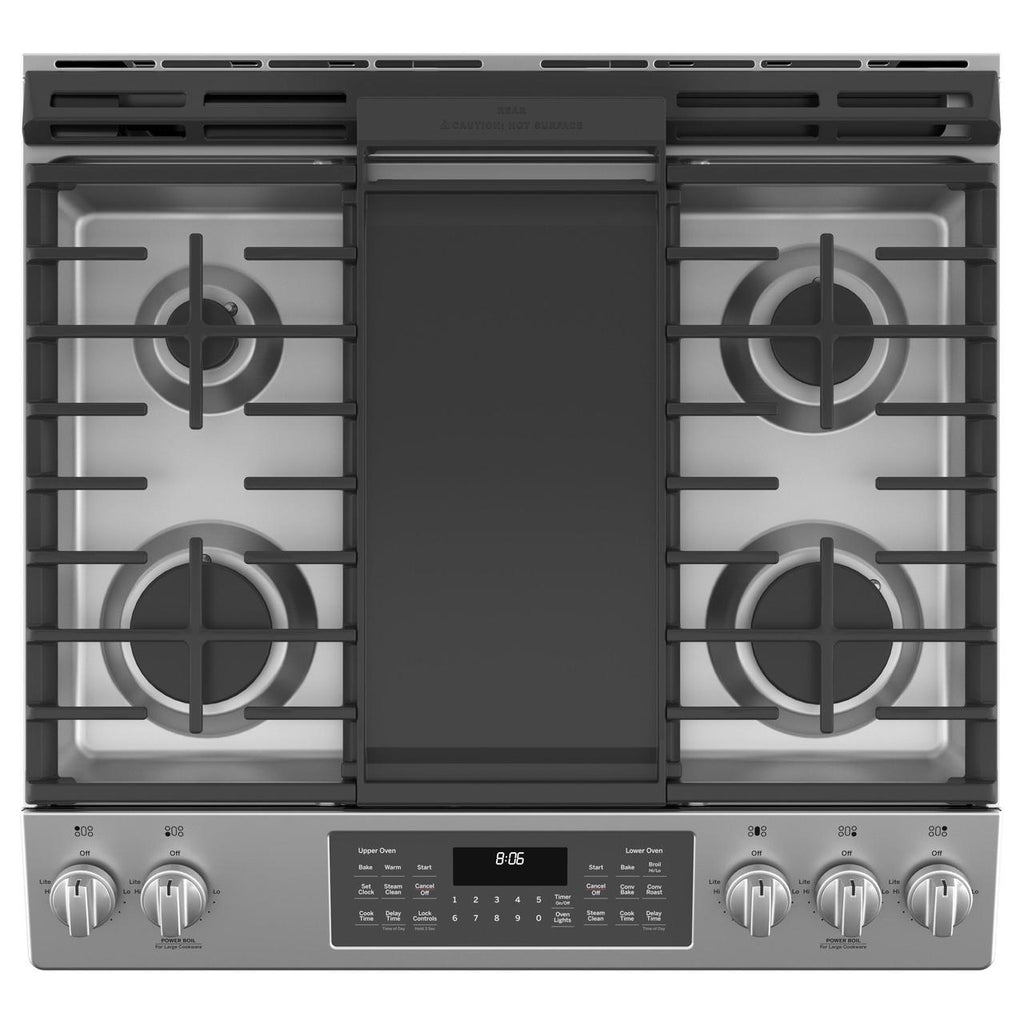

EDGE-TO-EDGE COOKTOP
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
INTEGRATED GRIDDLE
This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once.
STEAM CLEAN
Fill the resevoir with water and set your oven to "Steam Clean". After 30 minutes you're able to wipe clean all grime and residue.
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Power Boil Burner: 18,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 9,500 BTU
• Center Oval Burner: 10,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 9,500 BTU
• Center Oval Burner: 10,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 6.7 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Features
Technologies
Convection Technology
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Big View Oven Window
• 2 Oven Racks
• Electronic Ignition System
• Audible Preheat Signal
• Electronic Clock and Kitchen Timer
• Continuous Grates Dishwasher Safe
• Heavy Cast Iron Grates
• 1 Auto Incandescent Light
• 2 Oven Racks
• Electronic Ignition System
• Audible Preheat Signal
• Electronic Clock and Kitchen Timer
• Continuous Grates Dishwasher Safe
• Heavy Cast Iron Grates
• 1 Auto Incandescent Light
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Aluminum Griddle
• Aluminum Griddle
Optional
• Trim Kit JXFILLR1DD
• Grill JXCGRILL1
• Grill JXCGRILL1
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
36.25 inch(es) / 92.08 cm
Depth (Without Handles)
26.75 inch(es) / 67.94 cm
Depth (Including Handles)
29.25 inch(es) / 74.30 cm
Weight
270.99 lb(s) / 122.92 kg
Additional Dimensions
Oven Interior Dimensions (W x H x D): 24"x 19-1/2" x 19-1/2"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
291.01 lb(s) / 132.00 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691853541
