Features

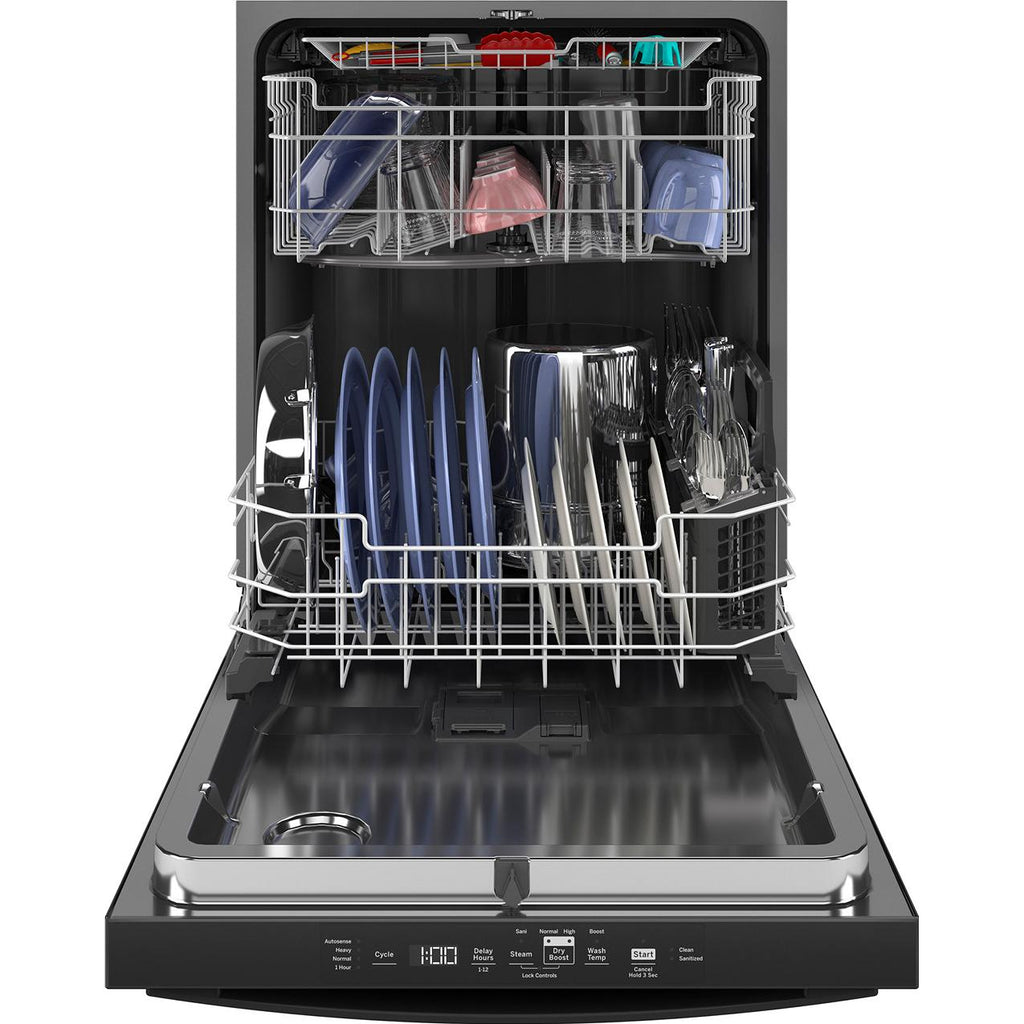

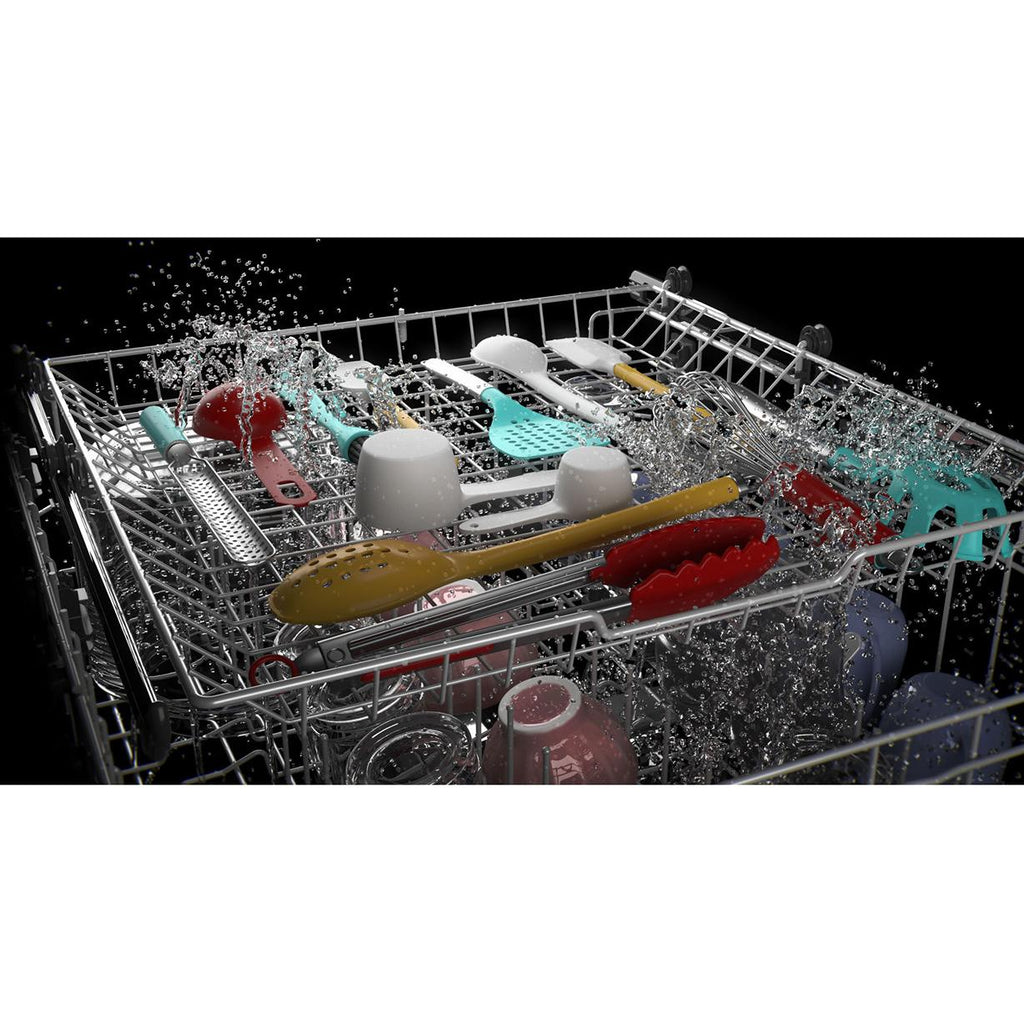

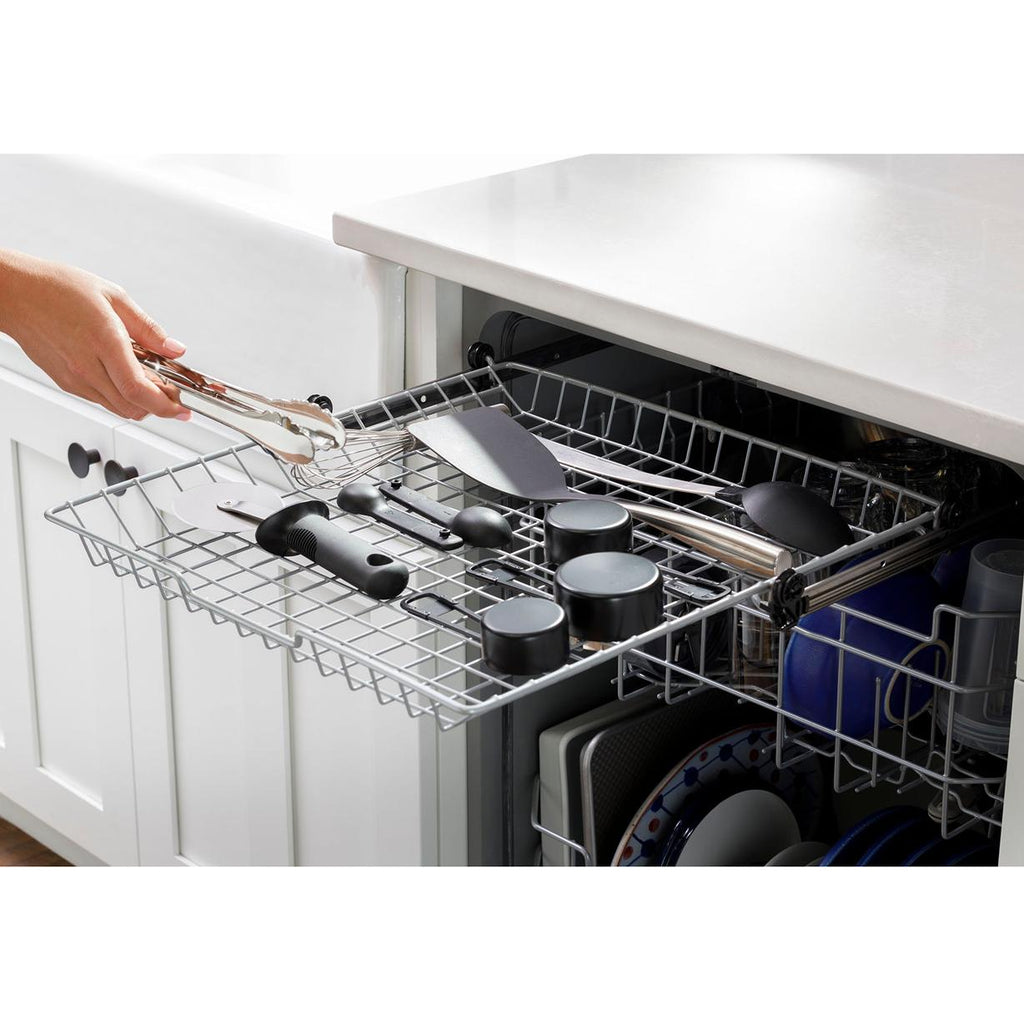

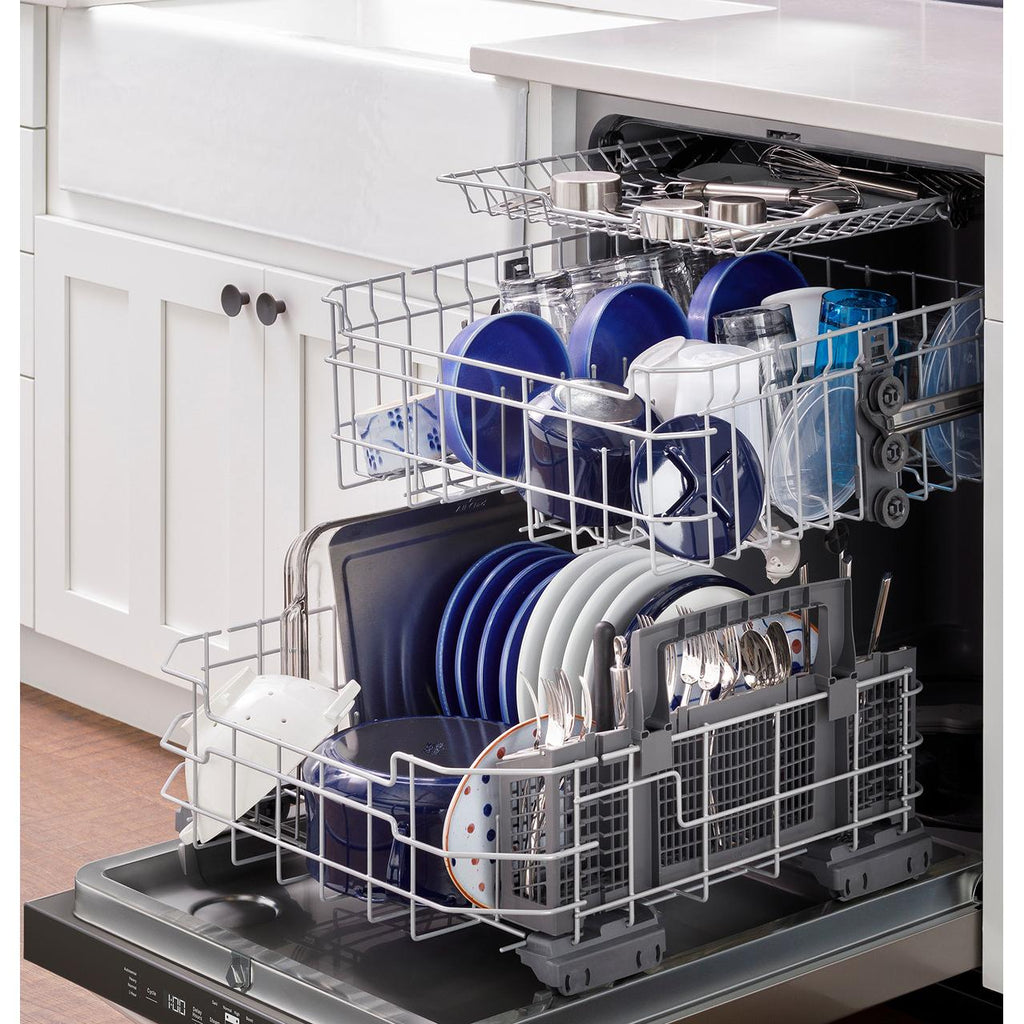

3 RACK DISHWASHER
This dishwasher has a third rack without dedicated compartments, giving you extra capacity and flexibility to store everything from lids and serving utensils to small bowls
DRY BOOST™
Dry Boost gets hard-to-dry items like plastics up to 3x drier compared to heated dry
STEAM + SANI
Save time with a Steam option that loosens tough soils before the wash cycle begins, so you get a complete clean with no pre-rinsing or soaking necessary. Plus, a Sanitization cycle reduces 99.999% of bacteria on dishes
AUTOSENSE WASH CYCLE
This energy efficient dishwasher has an AutoSense cycle that detects the soil level and amount of dishes, then automatically adjusts wash settings for the ultimate clean

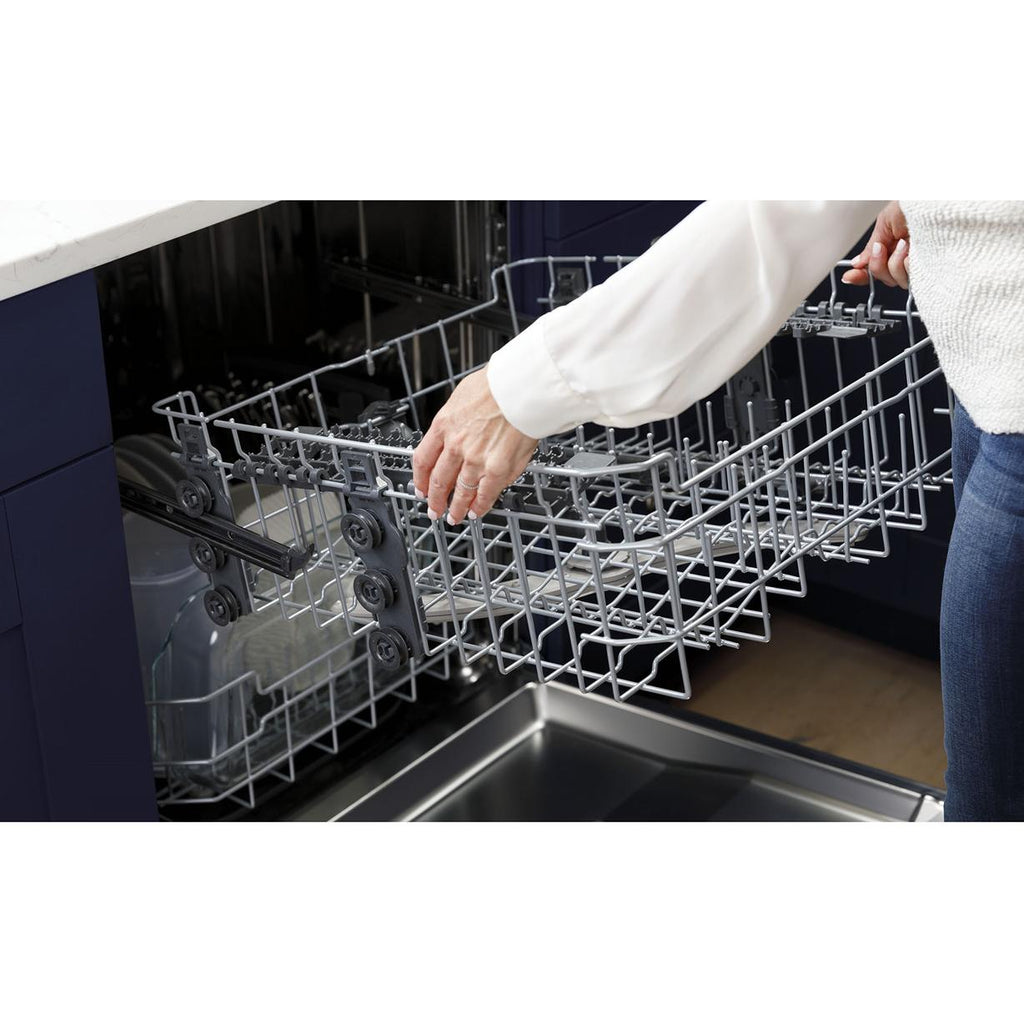

ADJUSTABLE UPPER RACK
Lift or lower the adjustable top rack of the dishwasher to accommodate bottles, large platters, or any items as tall as 10.5" thanks to flexible loading capabilities.
WATER LEAK SENSOR
This dishwasher features Active Flood Protect, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone.
HARD FOOD DISPOSER
The Piranha™ hard food disposer with a removable filter has a stainless steel blade that rotates at 3,600 RPM, preventing large particles from clogging the wash arms and ensuring consistently clean dishes

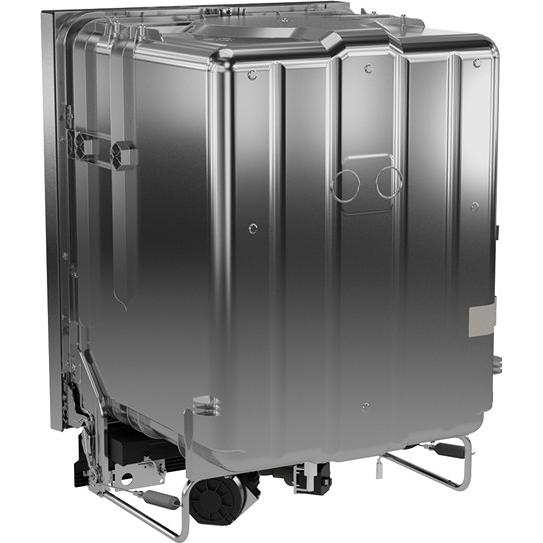

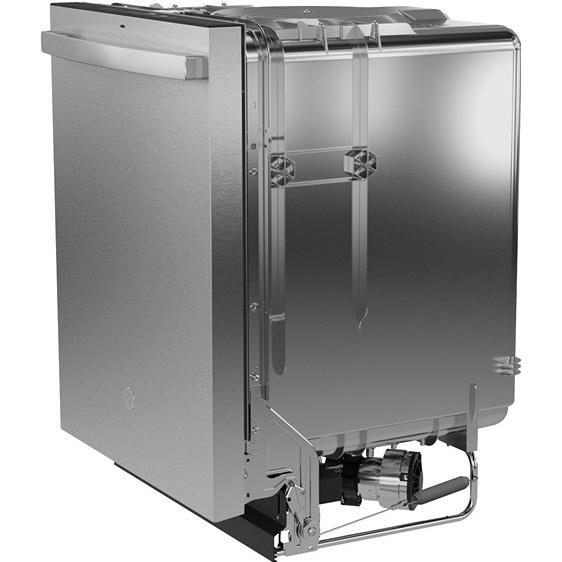

HYBRID TUB DISHWASHER
Experience the perfect blend of sleek stainless steel and lasting durability. The hybrid design combines a stainless steel inner door with a durable plastic tub, ensuring reliability with every wash.
Additional Features
HIGH WASH PERFORMANCE
Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time
CHOOSE YOUR CYCLE
This dishwasher offers a heavy wash, normal wash, and a 1-hour wash cycle for outstanding wash performance and clean dishes every time, every load size.
Specifications
General
Series Name
GDT585
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Fingerprint-Resistant Stainless Steel
Place Settings
16
Silence Rating
50 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• AutoSense
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Heavy Wash
• Normal Wash
• 1 Hour Wash
Options
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Steam + Sani (Certified to NSF Standard 184)
• Start/Reset
• Lock Controls
• Delay Start 1-12 Hr. with Countdown
• Steam PreWash
• Sabbath Mode
• Dry Boost™ (Normal)
• Wash TempBoost
• Steam + Sani (Certified to NSF Standard 184)
• Start/Reset
• Lock Controls
• Delay Start 1-12 Hr. with Countdown
• Steam PreWash
• Sabbath Mode
Features
Technologies
• Active Flood Protect
• Dry Boost™
• Dry Boost™
3rd Rack System
Yes
Filtration System
Yes
Wi-Fi
Yes
Additional Information

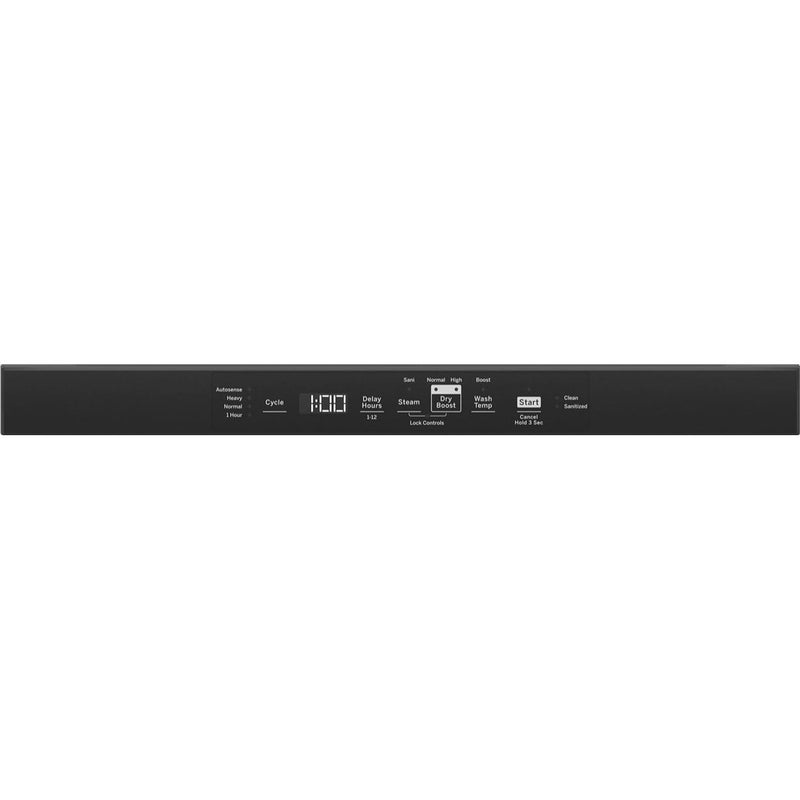

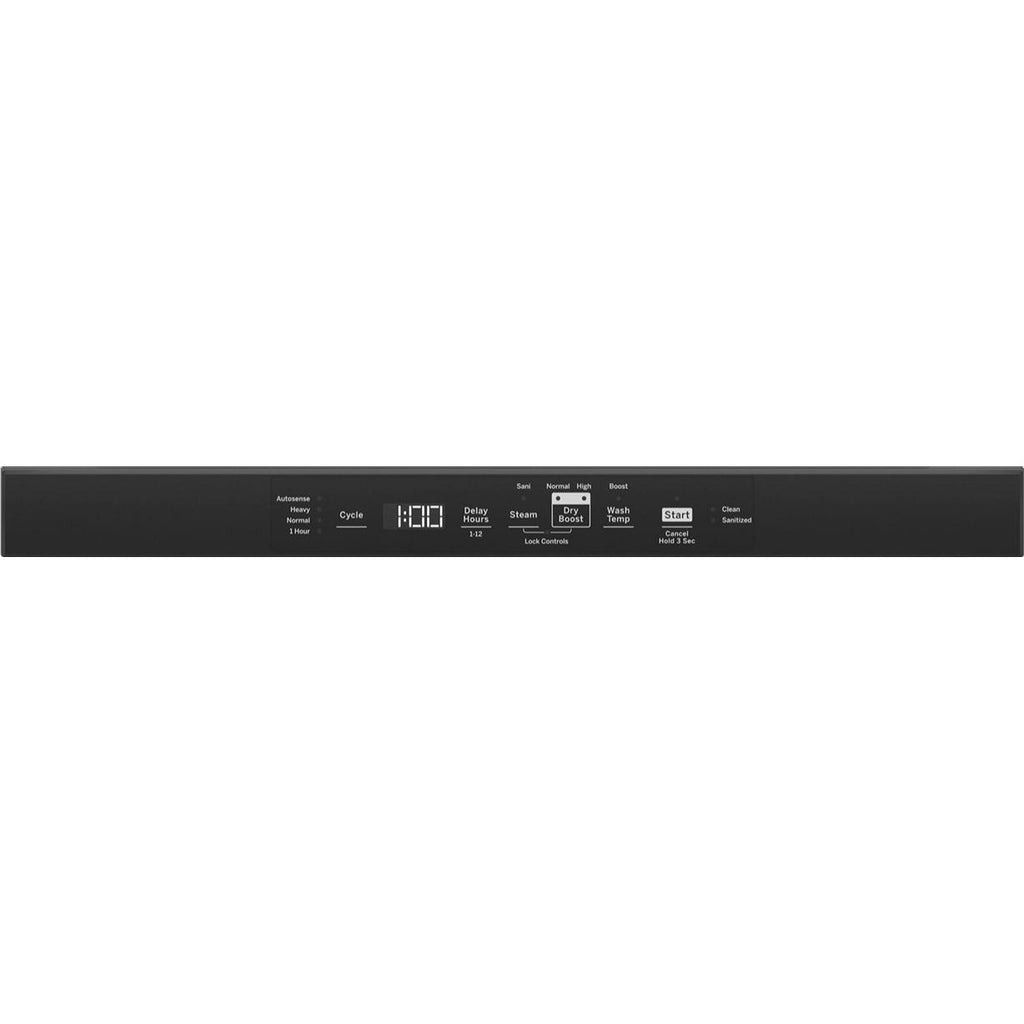

• Fully Integrated Inlaid Electronic Buttons
• 6 Touchpads
• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• 1 Piece Silverware Basket with 3 Cell Covers
• Ball-Tipped Tines
• Racking Material: Nylon
• Sensor: Clean Sensor
• Showroom Power Mode
• Style: Built-In Top Control
• Tub and Door Liner: Hybrid Stainless Steel Interior
• Tub Liner: Gray Plastic
• Tub Type: Tall Tub
• Upper Rack: Removable, Adjustable
• Wash Arms: Upper, Middle, Lower
• Wash System: 3-Level
• Wash System Features: Piranha™ Hard Food Disposer with removable filter, Automatic Temperature Control, Automatic HotStart, Fill Level Pressure Sensor, Active Flood Protect
• Water Filtration System: 100% Filtration with Piranha Hard Food Disposer and Removable Filter
• WiFi Connect: Optional (Requires part no. PBX23W00Y1)
• 6 Touchpads
• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• 1 Piece Silverware Basket with 3 Cell Covers
• Ball-Tipped Tines
• Racking Material: Nylon
• Sensor: Clean Sensor
• Showroom Power Mode
• Style: Built-In Top Control
• Tub and Door Liner: Hybrid Stainless Steel Interior
• Tub Liner: Gray Plastic
• Tub Type: Tall Tub
• Upper Rack: Removable, Adjustable
• Wash Arms: Upper, Middle, Lower
• Wash System: 3-Level
• Wash System Features: Piranha™ Hard Food Disposer with removable filter, Automatic Temperature Control, Automatic HotStart, Fill Level Pressure Sensor, Active Flood Protect
• Water Filtration System: 100% Filtration with Piranha Hard Food Disposer and Removable Filter
• WiFi Connect: Optional (Requires part no. PBX23W00Y1)
Electrical Information
Information
• Calrod Heater Watts: 800/500
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Energy Consumption (kWh/year): 240
• Hertz: 60
• Power Connection: Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
• Watts: 792
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Energy Consumption (kWh/year): 240
• Hertz: 60
• Power Connection: Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
• Watts: 792
Certifications and Approvals
Energy Star Certified
Yes
UL Listed
Yes
Information
Sabbath Mode
Accessories
Optional
• Optional cord kit (GPFCORD)
• Optional 12' drain hose kit (WD24X10065)
• Optional 12' drain hose kit (WD24X10065)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Weight
60.01 lb(s) / 27.22 kg
Additional Dimensions
• Cutout Depth: 24 in
• Cutout Height: 33 1/2 in
• Cutout Width: 24 in
• Depth with Door Open: 27 1/2 in
• Height with Legs Retracted (Minimum Height): 33.375 in
• Height with Legs Extended (Maximum Height): 34.625 in
• Cutout Height: 33 1/2 in
• Cutout Width: 24 in
• Depth with Door Open: 27 1/2 in
• Height with Legs Retracted (Minimum Height): 33.375 in
• Height with Legs Extended (Maximum Height): 34.625 in
Shipping Dimensions
Weight
75 lb(s) / 34.02 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
084691973935
