Features
THREE SPEED VENTILATION FAN
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 340 cubic feet per minute (CFM).
QUIETER OPERATION
When using the fans to circulate air, the sound level is equivalent to 52.6 dBA similar to a quiet conversation, or background music.

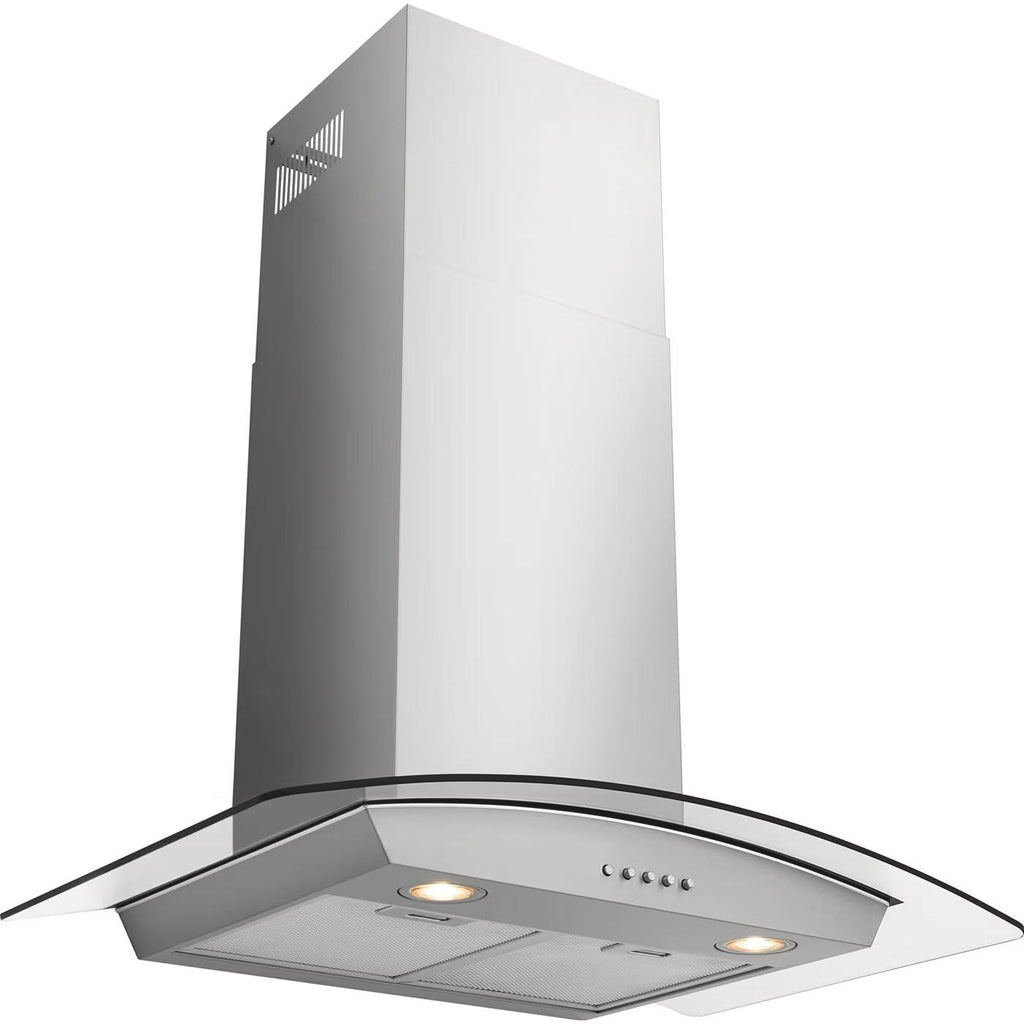

LED LIGHTING
Get a clearer view of your cooktop with two LED lights that illuminate the cooking surface.
CHARCOAL FILTER
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
DISHWASHER SAFE GREASE FILTER
Easy to remove, dishwasher safe aluminum mesh filters help trap particles and helps reduce odors.

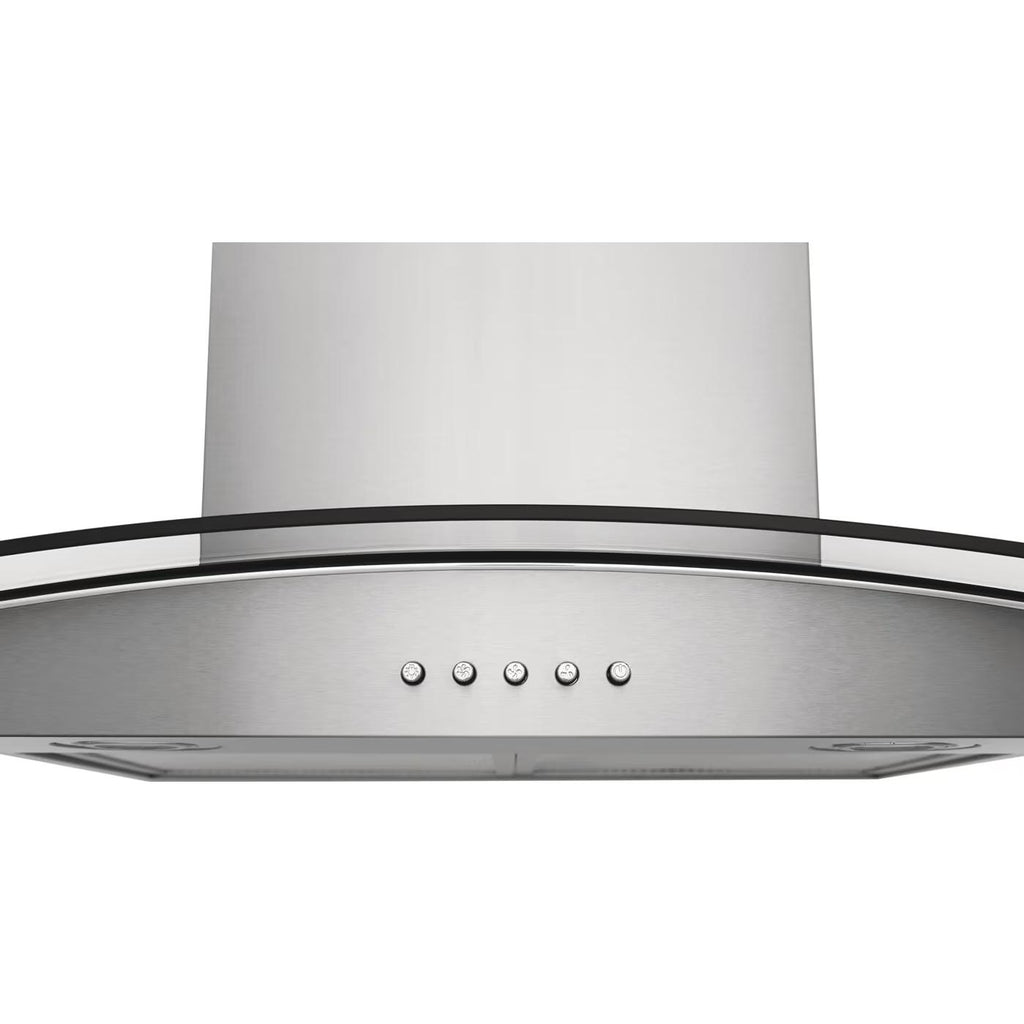

PUSH BUTTON CONTROLS
Easily select fan speed or lighting level with simple push button controls.
CHIMNEY EXTENSION AVAILABLE
For kitchens that require more height, you can purchase an additional chimney extension that accommodates ceiling heights of 10 feet. (Part Number FHW10X70LS).
Specifications
General
Blower Included
Yes
Airflow
340 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Duct Diameter: 6"
• Duct Exit Location: Top
• Duct Exit Location: Top
Speeds
• Exhaust Fan Speeds: 3
• Maximum Air Flow Capacity: 340 CFM
• Minimum Air Flow Capacity: 220 CFM
• Maximum Air Flow Capacity: 340 CFM
• Minimum Air Flow Capacity: 220 CFM
Additional Information
• Glass Canopy Hood
• Ducted Vent
• Maximum Sones Rating: 5.5 sone
• Minimum Sones Rating: 2.5 sone
• Grease Filter Quantity: 2
• Grease Filter Type: Aluminum Mesh
• Grease Filter Dishwasher Safe
• Charcoal Filter Quantity: 2
• Lighting Type: LED
• Number of Lights: 2
• Number of Light Settings: 2
• Control Type: Push Button
• Power Supply Connection Type: Hard Wired
• Sound level: 52.6 dBA
• Ducted Vent
• Maximum Sones Rating: 5.5 sone
• Minimum Sones Rating: 2.5 sone
• Grease Filter Quantity: 2
• Grease Filter Type: Aluminum Mesh
• Grease Filter Dishwasher Safe
• Charcoal Filter Quantity: 2
• Lighting Type: LED
• Number of Lights: 2
• Number of Light Settings: 2
• Control Type: Push Button
• Power Supply Connection Type: Hard Wired
• Sound level: 52.6 dBA
Electrical Information
Information
Voltage Rating: 120 V
Certifications and Approvals
Hvi Certified
Yes
Information
ETL
Accessories
Included
• Grease Filter
• Charcoal Filter
• Charcoal Filter
Optional
FHW10X70LS
Dimensions
Class Width
30"
Width
29.81 inch(es) / 75.72 cm
Height
24 inch(es) / 60.96 cm
Depth
18.94 inch(es) / 48.1 cm
Weight
45.04 lb(s) / 20.43 kg
Additional Dimensions
Height With Flue Extension: 45"
Warranty
Warranty
1-Year parts and labor
