Features

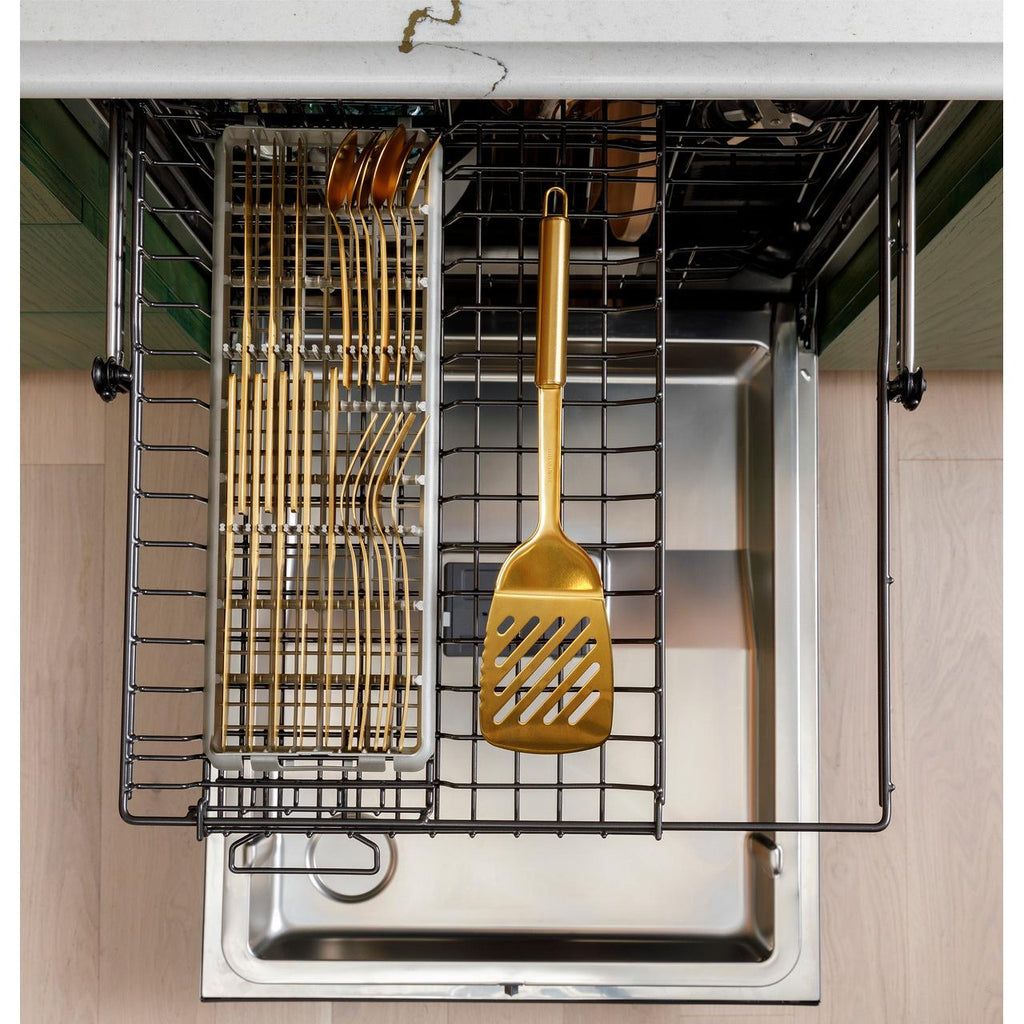

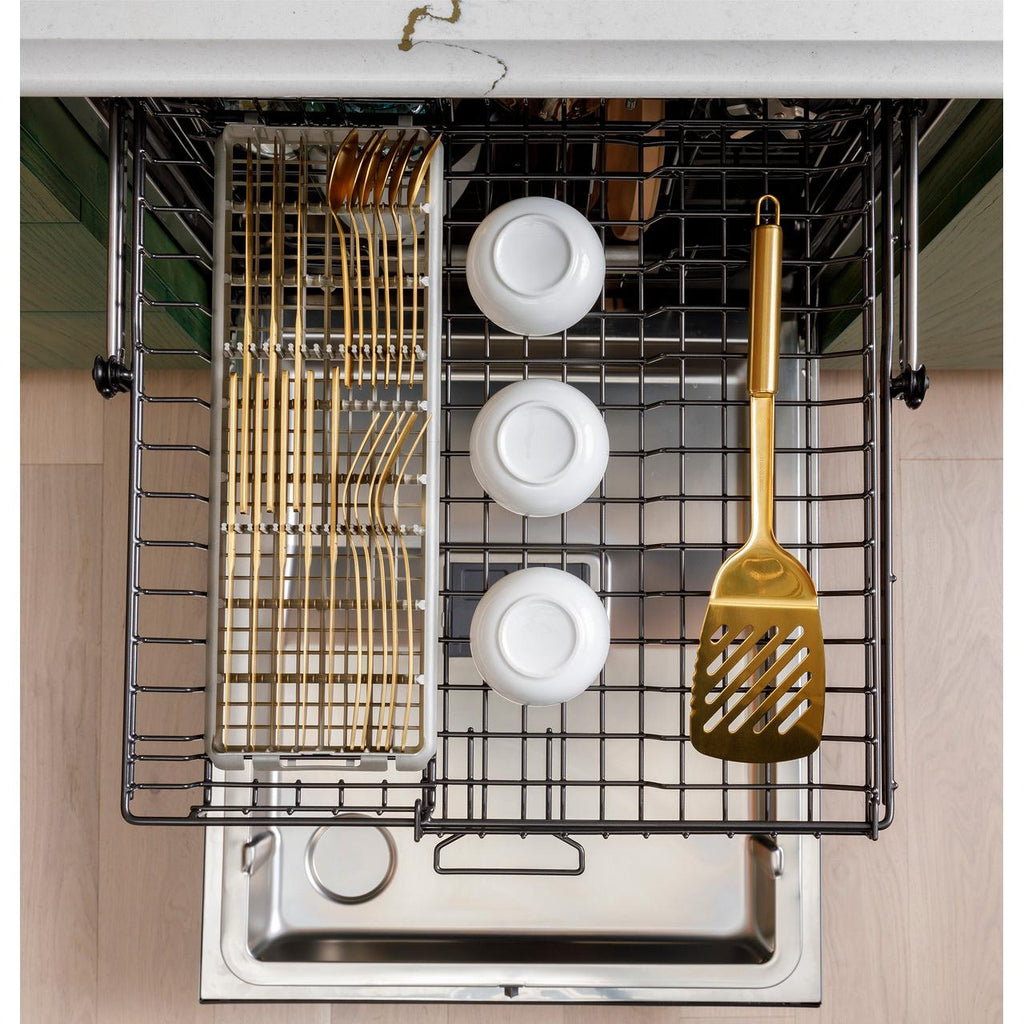

CUSTOMFIT TOP RACK
Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

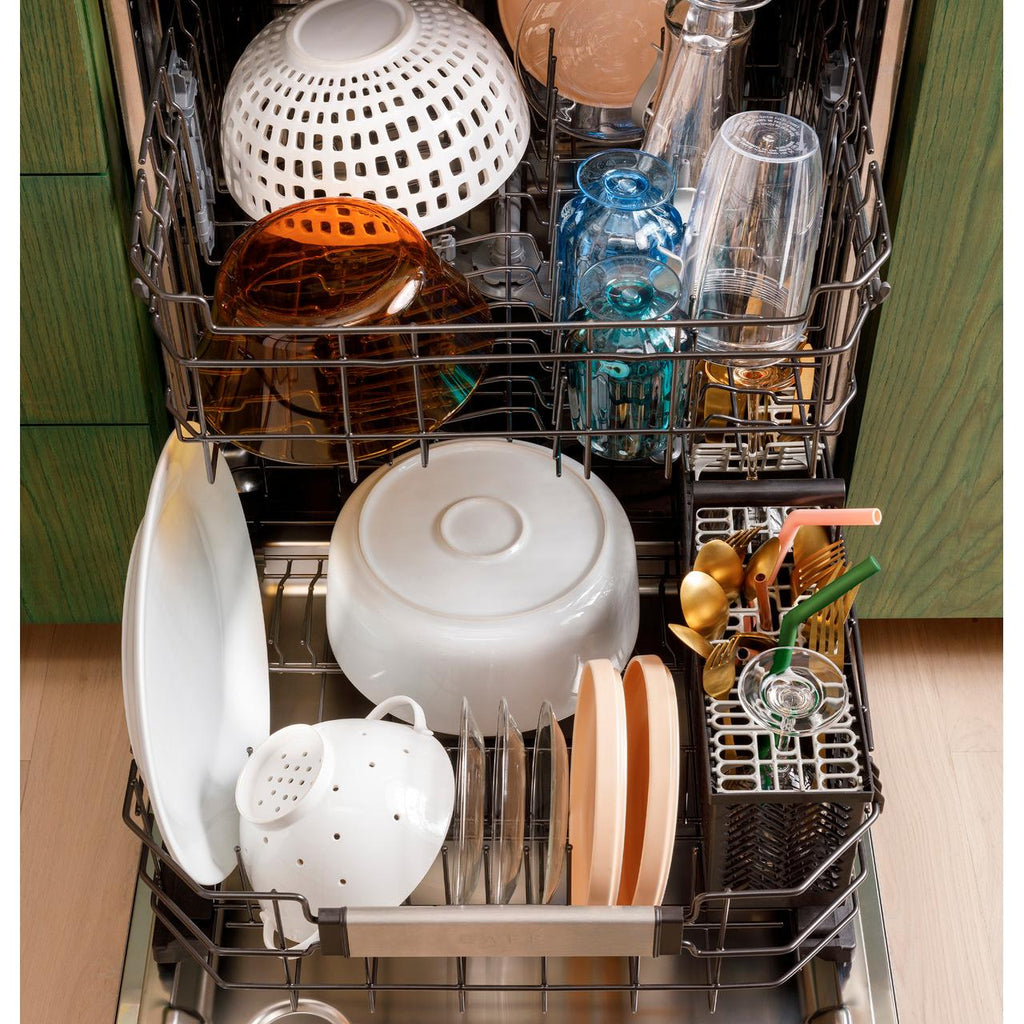

CUSTOMFIT BASKET
Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
ULTRA WASH & DRY
This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

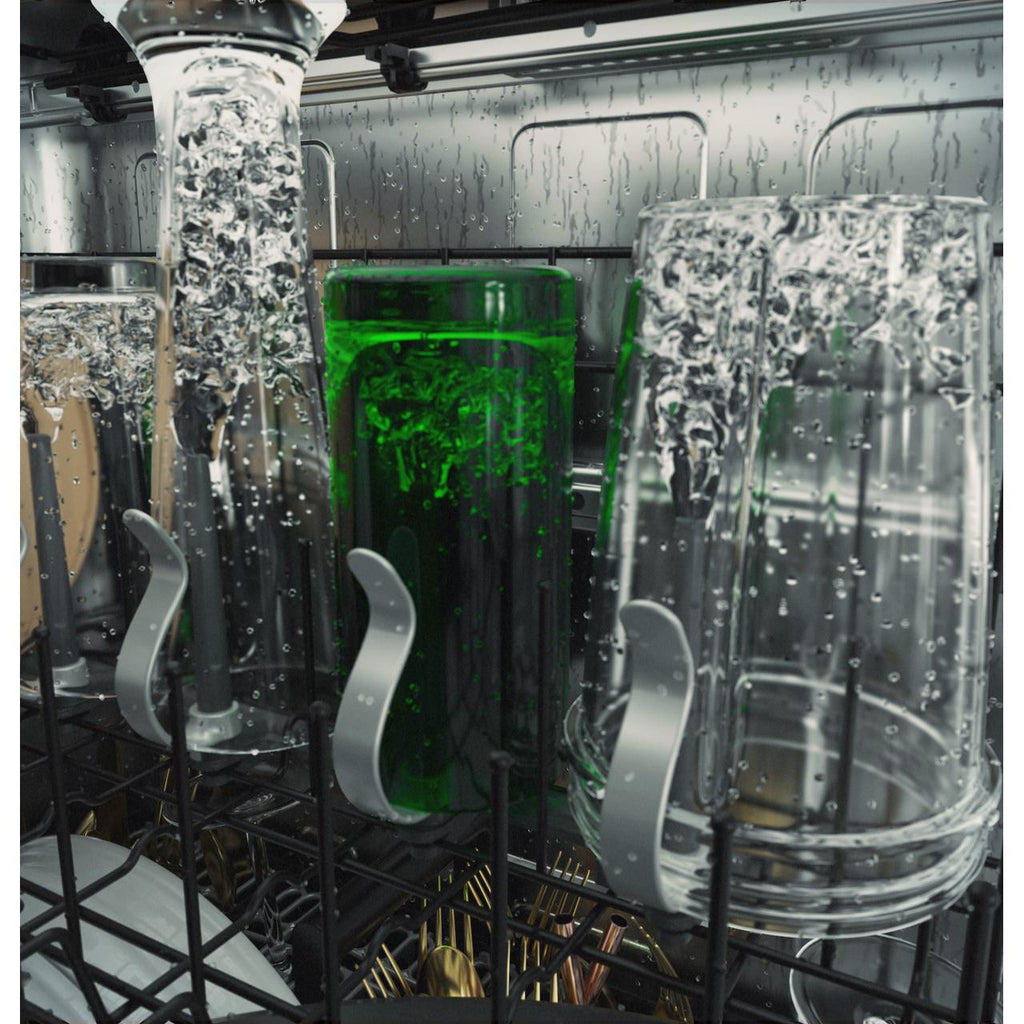

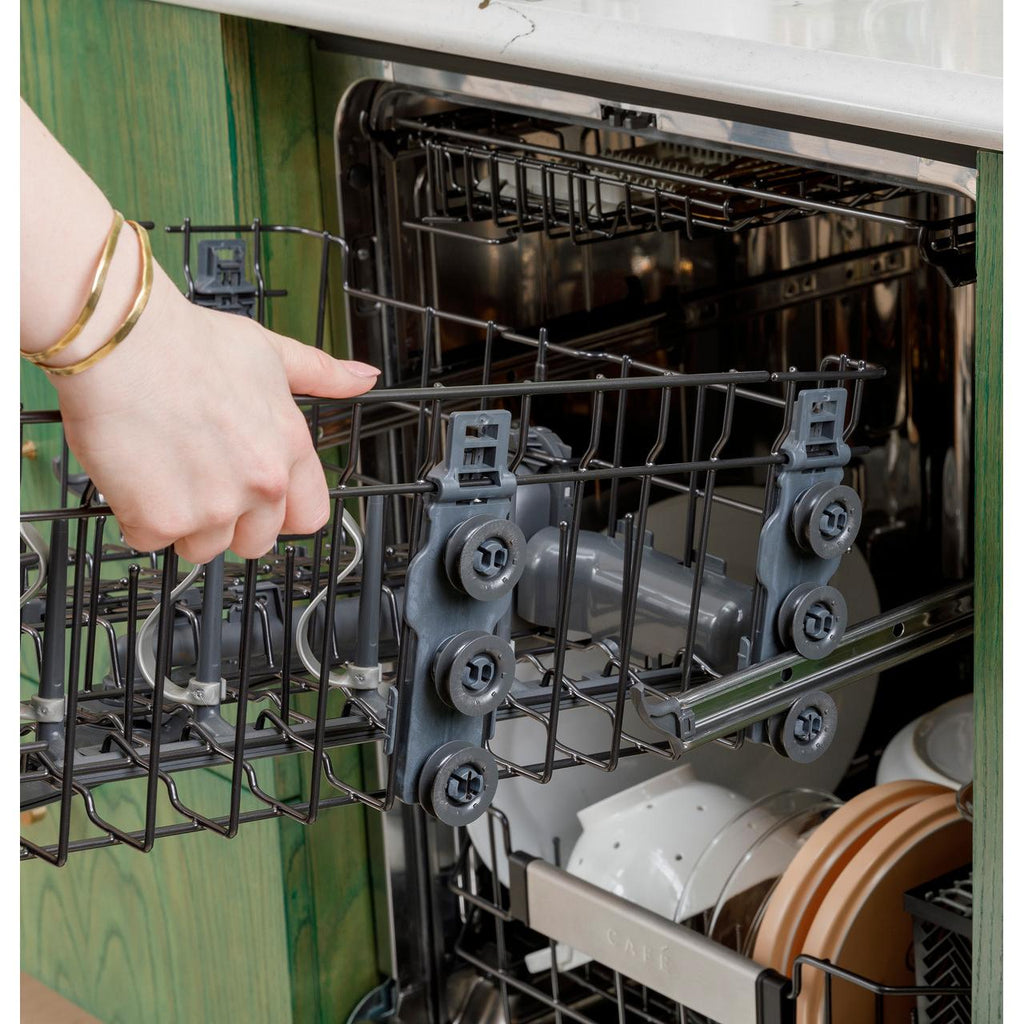

4 BOTTLE WASH JETS
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
CUSTOMIZABLE DISHWASHER HANDLES
Choose from six unique Café handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

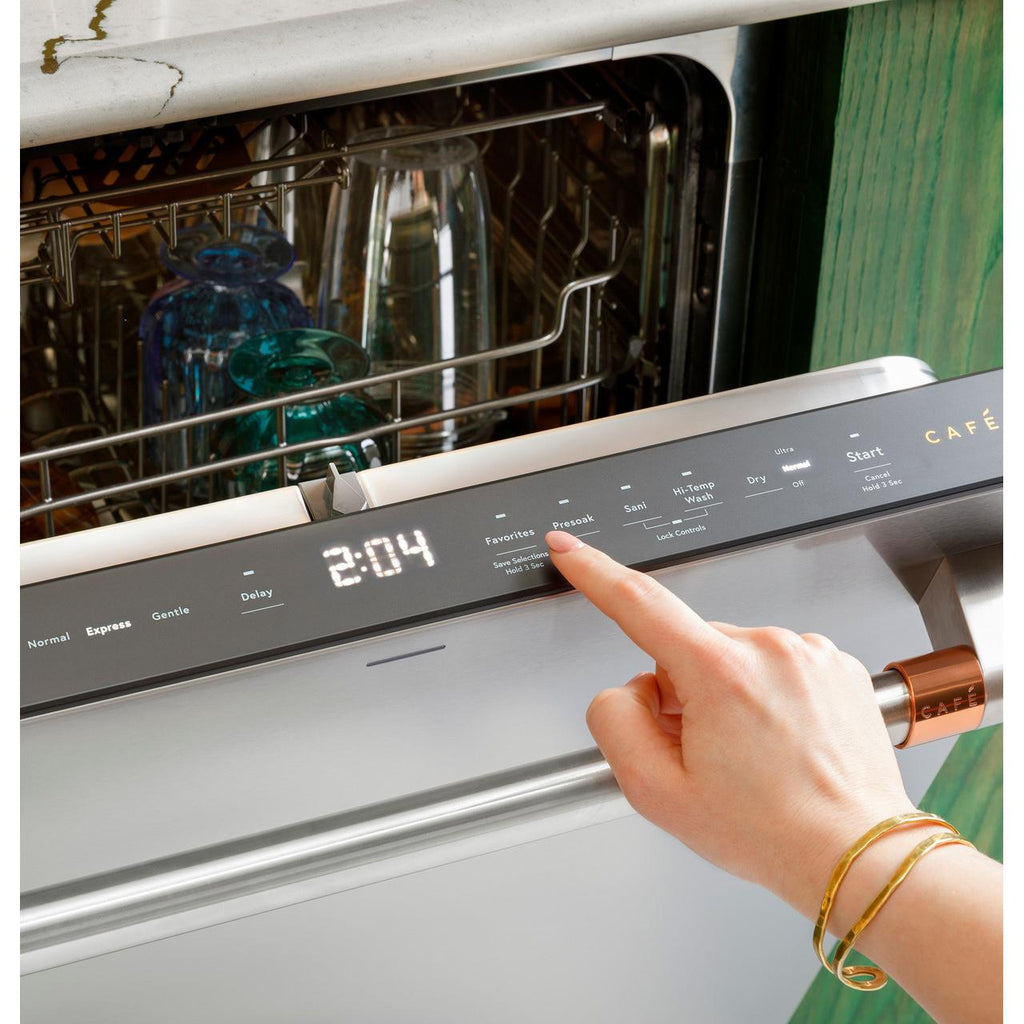

FAVORITES
Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel

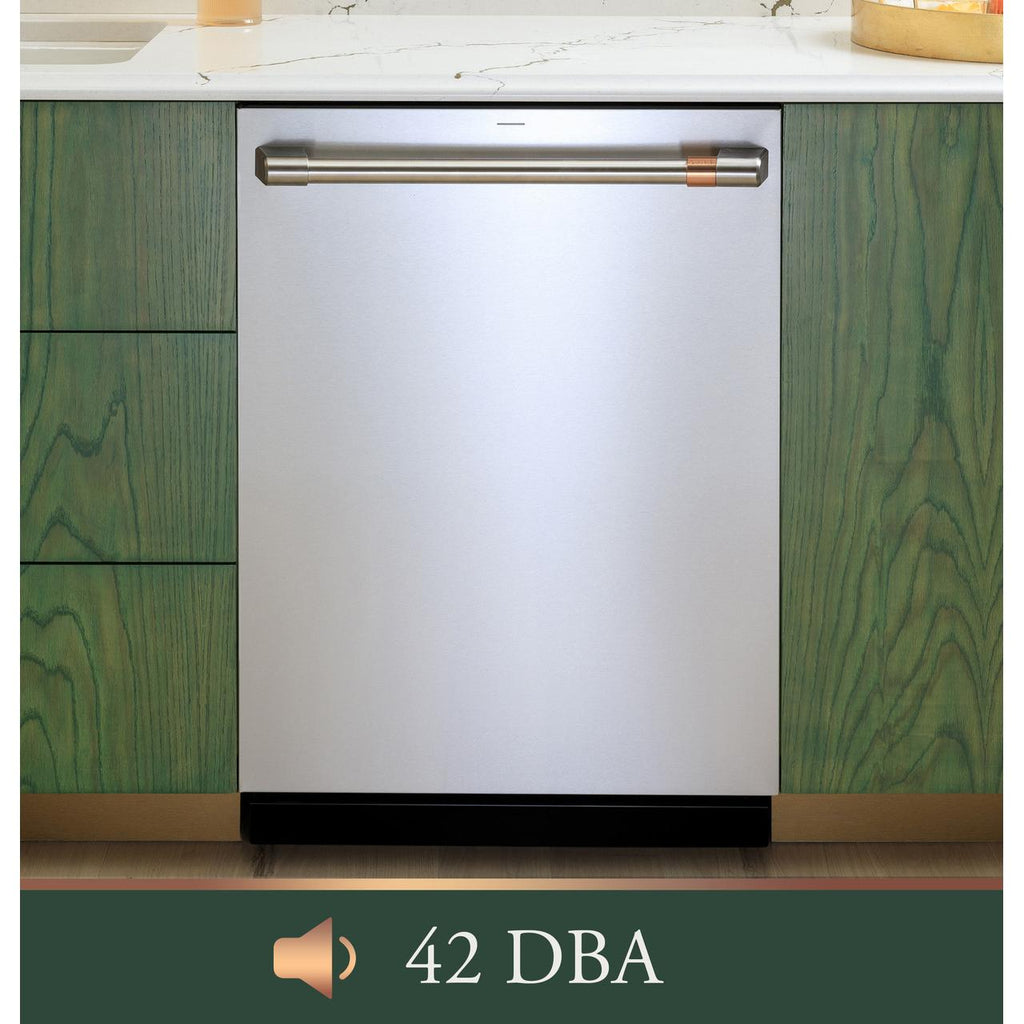

Silence Rating
42 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Auto
• Cookware
• Normal
• Gentle
• Express
• Cookware
• Normal
• Gentle
• Express
Options
• Delay Start 1-12 Hr.
• WiFi/Remote Enabled
• Sabbath Mode
• Start/Cancel
• Wash Zones/Half Load (on app)
• Bottle Wash (on app)
• Favorites (on app)
• Favorites
• Pre Soak
• Sani (Certified to NSF Standard 184)
• Hi-Temp Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
• WiFi/Remote Enabled
• Sabbath Mode
• Start/Cancel
• Wash Zones/Half Load (on app)
• Bottle Wash (on app)
• Favorites (on app)
• Favorites
• Pre Soak
• Sani (Certified to NSF Standard 184)
• Hi-Temp Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
Features
Technologies
WiFi Connect: Optional (Requires part no. PBX23W00Y0)Smart Assist
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information

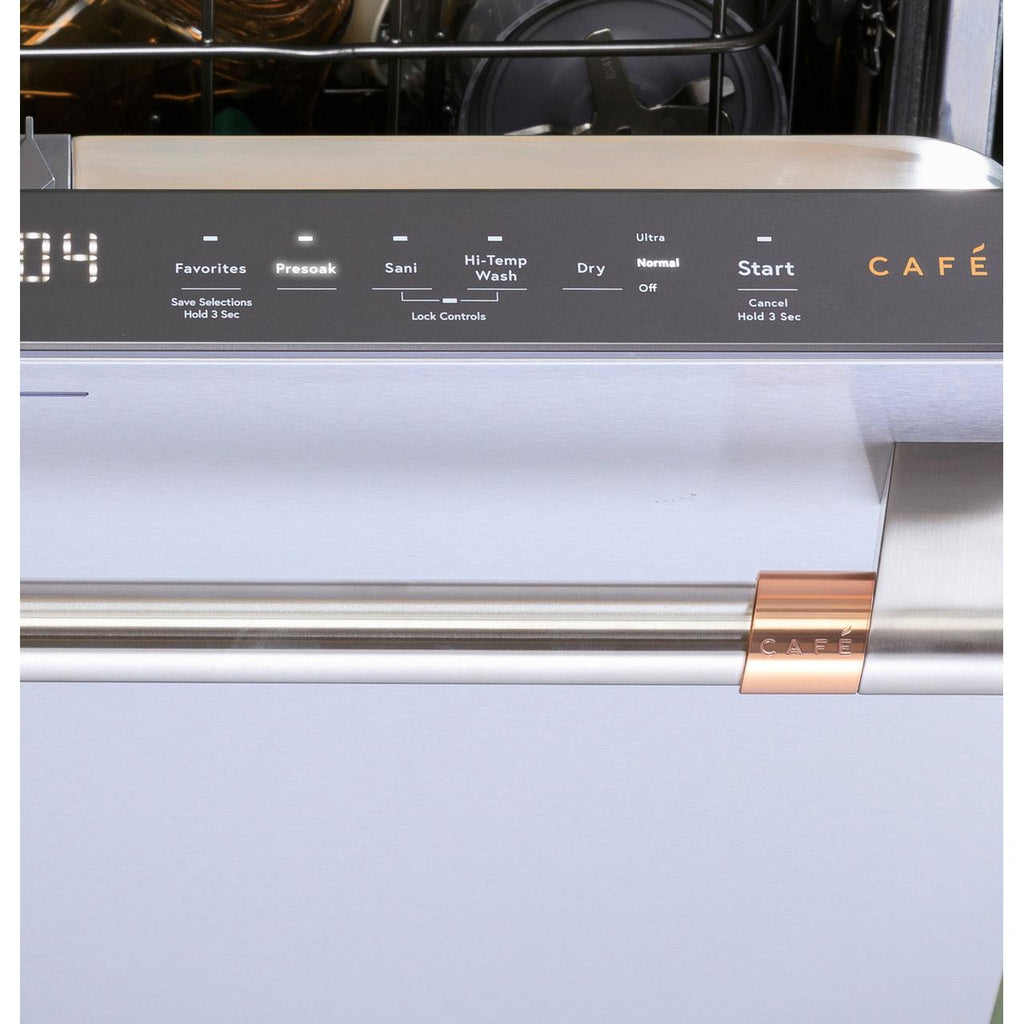

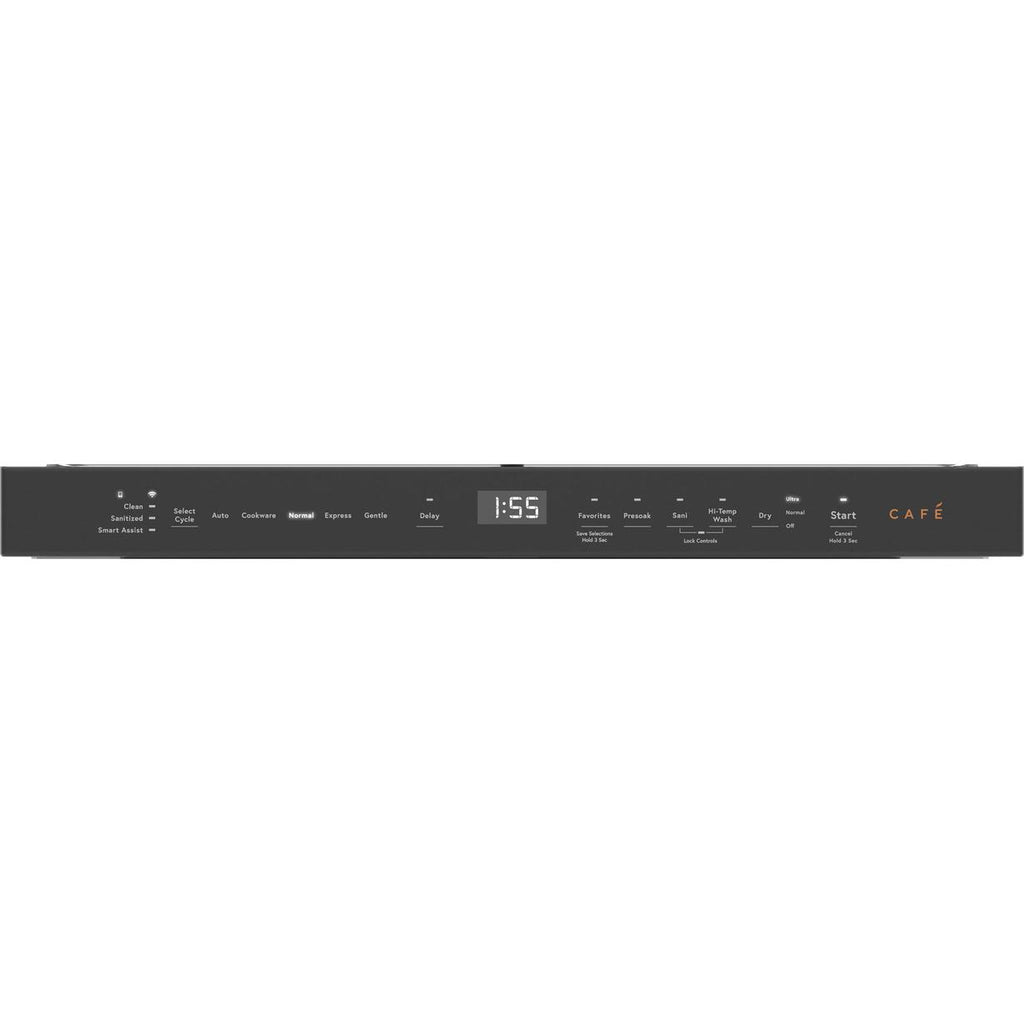

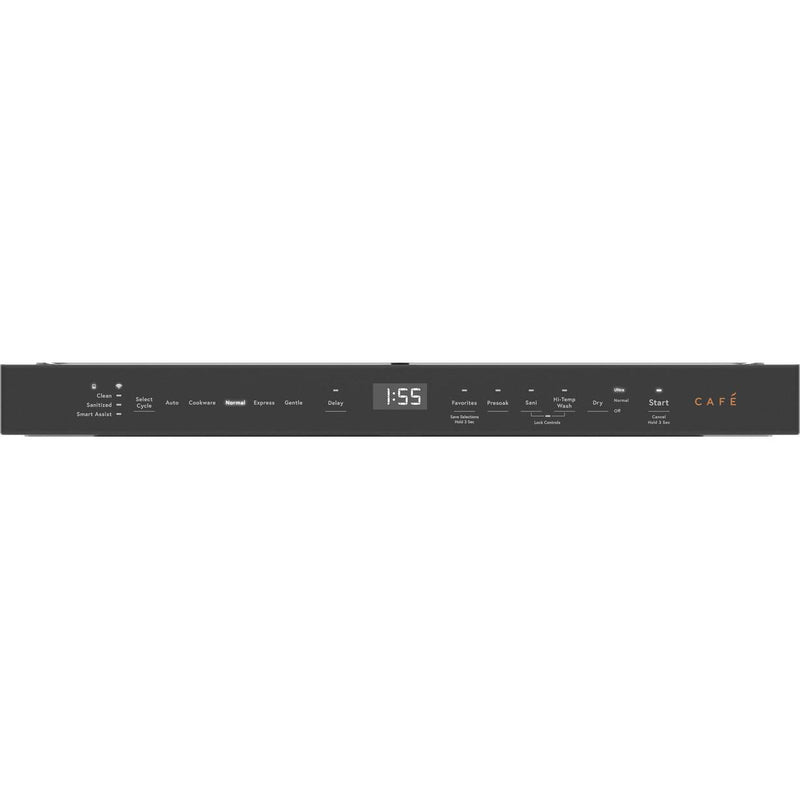

• Top Controls
• Cap Touch Controls
• 8 Touchpads
• One piece removable 3rd rack
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
• Last Cycle Memory
• Audible End-of-Cycle Signal
• UltraDry
• Multi-Wattage Wash & Dry Element
• Heated Dry - Ultra/Normal/Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Customizable Professional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines
• Rack Features: Ball-Tipped Tines, Adjustable Upper Rack, Cafe Flex Silverware Basket
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Slilding 3rd rack + Tray
• 100% Filtration with Hard Food Disposer and Removable Filter
• Upper Rack:
• Adjustable
• Removable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Wash Arms:
• 3 Wash Levels
• Bottle Jets
• Lower
• Middle
• Upper
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control

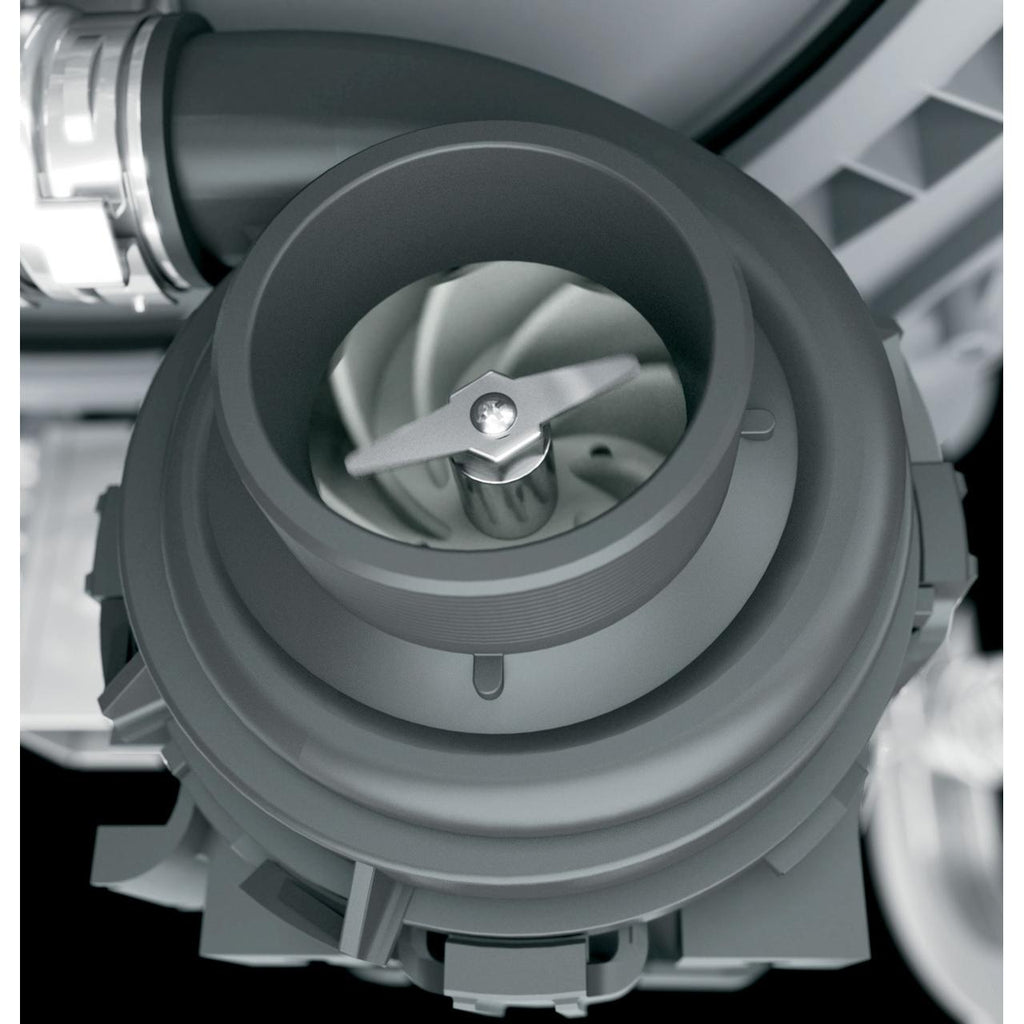

• Hard Food Disposer with removable filter
• Automatic HotStart
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
• Cap Touch Controls
• 8 Touchpads
• One piece removable 3rd rack
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
• Last Cycle Memory
• Audible End-of-Cycle Signal
• UltraDry
• Multi-Wattage Wash & Dry Element
• Heated Dry - Ultra/Normal/Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Customizable Professional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines
• Rack Features: Ball-Tipped Tines, Adjustable Upper Rack, Cafe Flex Silverware Basket
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Slilding 3rd rack + Tray
• 100% Filtration with Hard Food Disposer and Removable Filter
• Upper Rack:
• Adjustable
• Removable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Wash Arms:
• 3 Wash Levels
• Bottle Jets
• Lower
• Middle
• Upper
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control
• Hard Food Disposer with removable filter
• Automatic HotStart
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
Electrical Information
Information
• 120 V
• 60 Hz
• 7.2 A
• 60 Hz
• 7.2 A
Certifications and Approvals
Energy Star Certified
Yes
Information
• OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
• Sabbath
• Sabbath
Accessories
Optional
Cord kit (GPFCORD - WX09X70910, WX09X70911)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
124.01 lb(s) / 56.25 kg
Additional Dimensions
Height w/Legs Extended - Maximum Height: 34-5/8 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
137 lb(s) / 62.14 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691914587
