Features
MATCH YOUR PERSONAL STYLE
Customize this stylish dishwasher with any combination of premium finishes and hardware options for a unique look that matches your personal style.

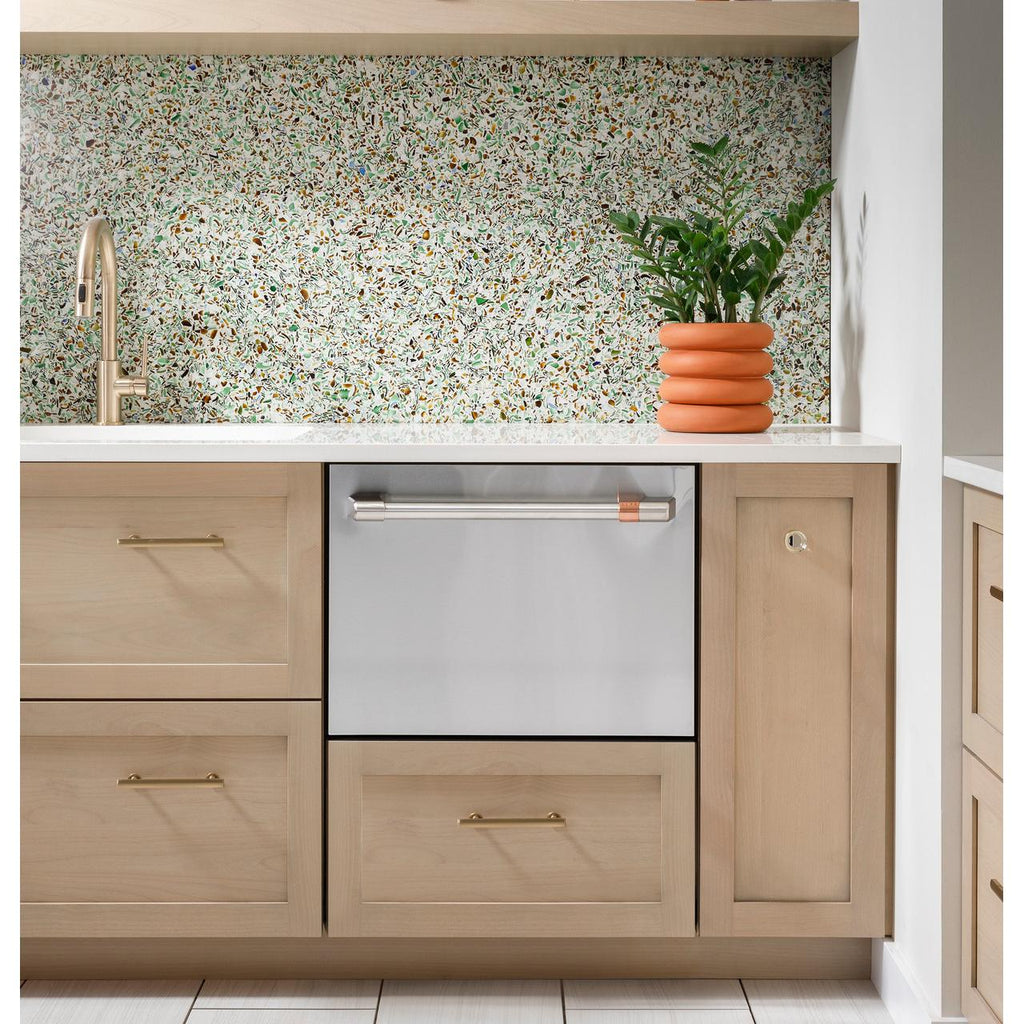

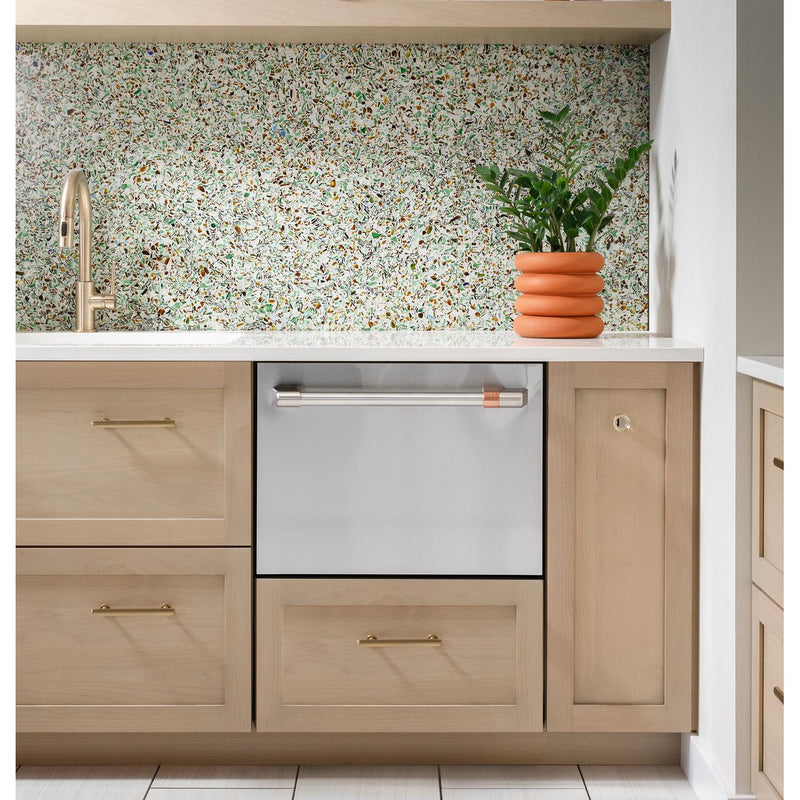

TWO SINGLE DRAWERS
With one drawer on either side of the sink, this single-drawer dishwasher offers a beautiful aesthetic and gives owners the ability to experience the appeal of its ergonomic design with modern functionality.

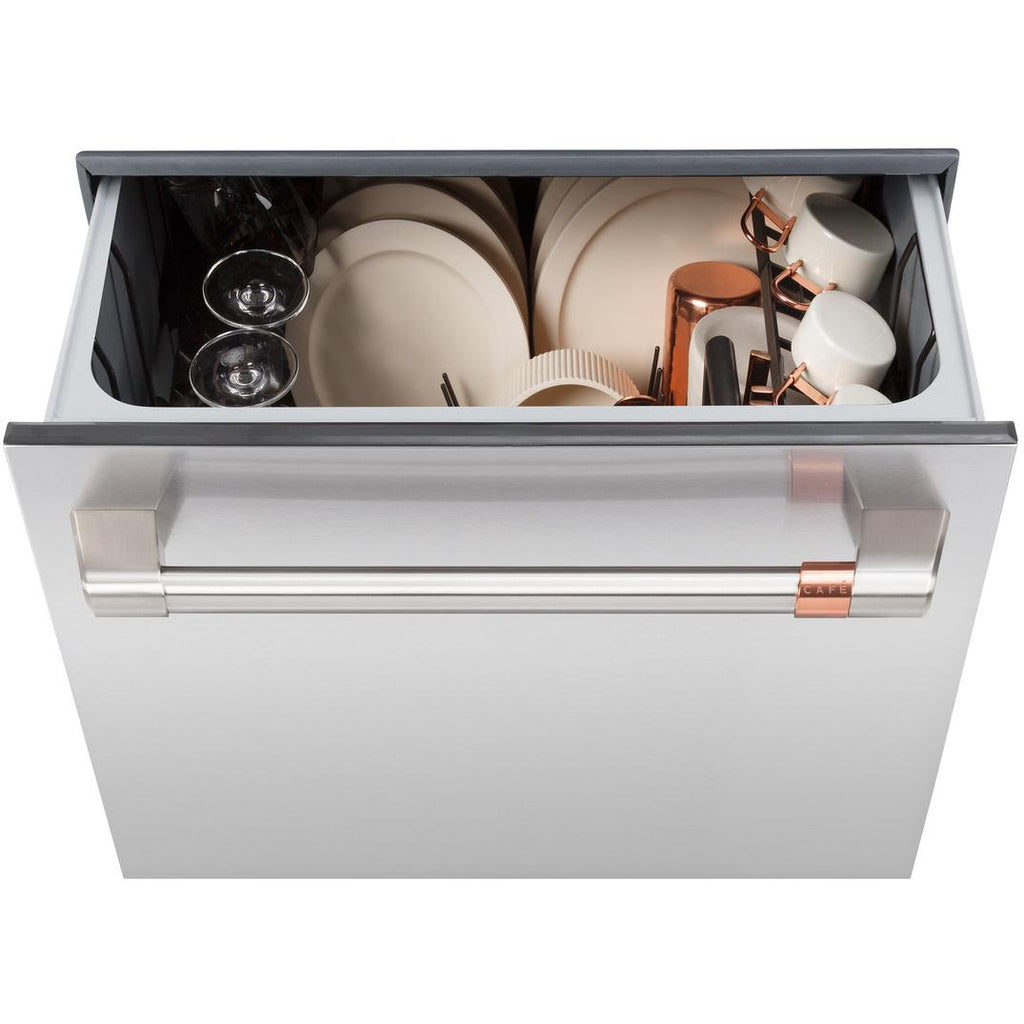

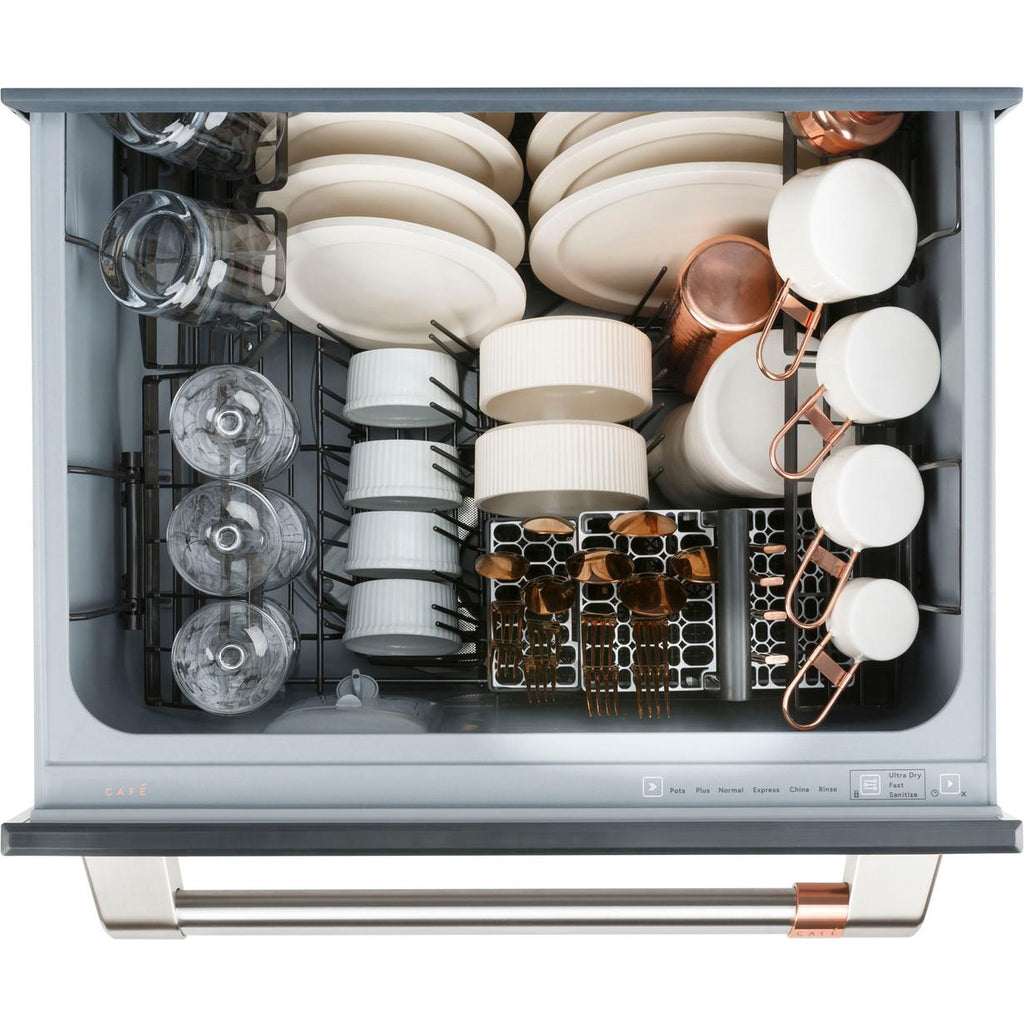

ACCOMMODATES LARGE DISH LOADS (7 PLACE SETTINGS)
Easily accommodate 7 place settings and 13-inch pots in this large-capacity dishwasher that offers a place for everything.

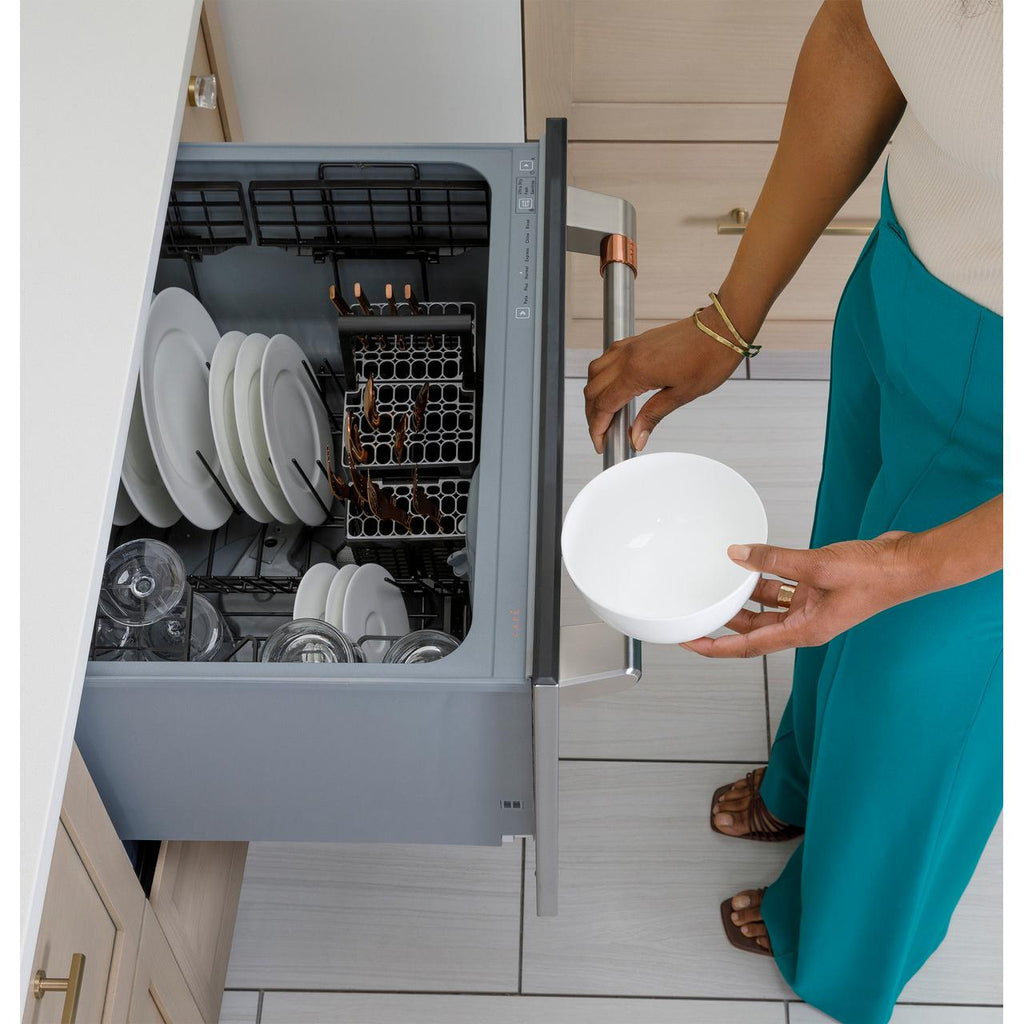

EASY TO LOAD & UNLOAD

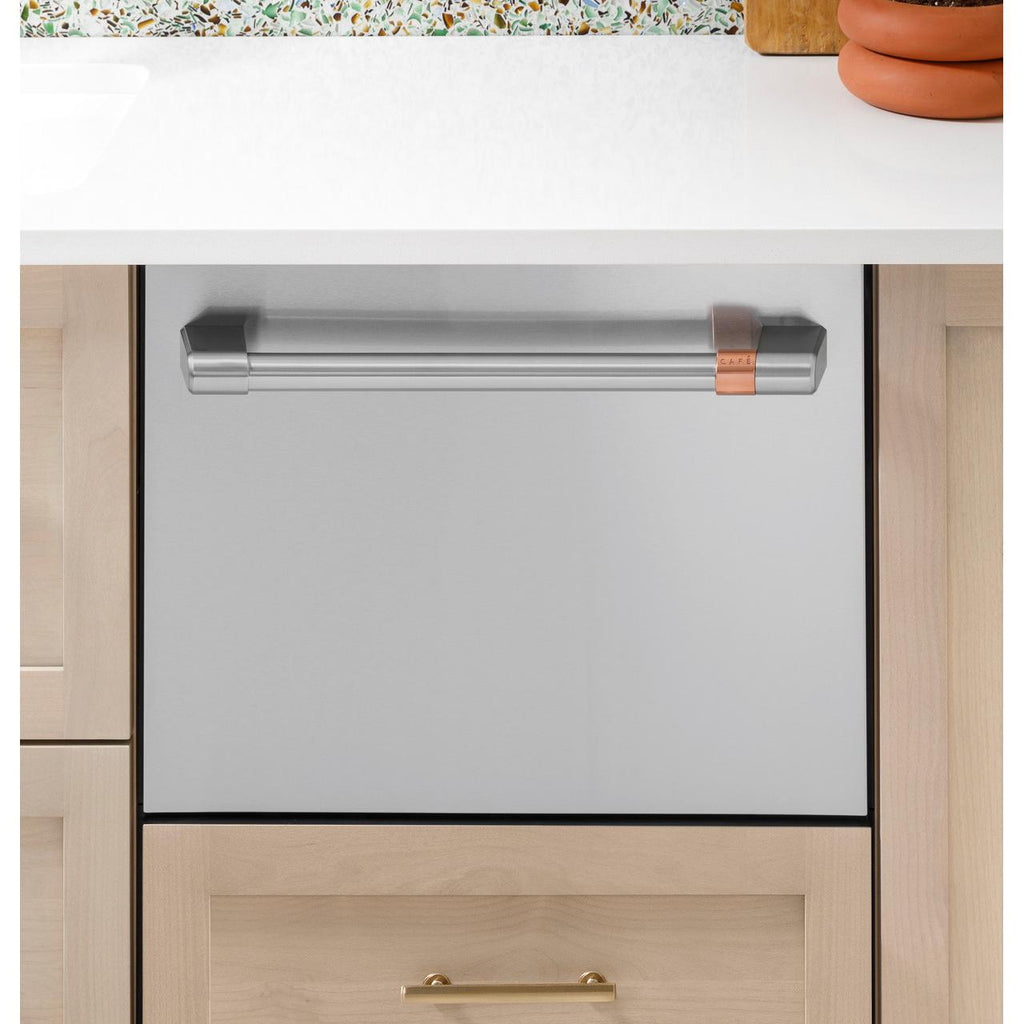

The single-drawer dishwasher is installed at counter height, so owners don’t have to bend over to unload or load, making it the perfect solution for those who seek out ease and accessibility but don't want to sacrifice style.
BUILT-IN WIFI POWERED BY SMARTHQ™
Built-In WiFi and the SmartHQ™ app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including remote status and notifications.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
7
Tub Material
Plastic
Silence Rating
45 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Pots
• Plus
• Normal
• Express
• China
• Rinse
• Plus
• Normal
• Express
• China
• Rinse
Options
• Ultra Dry
• Fast
• Sanitize
• Lock Control
• Delay
• Fast
• Sanitize
• Lock Control
• Delay
Features
Technologies
• Active Flood Protect
• Fan Assist Dry
• Built-in WiFi Connect
• Fan Assist Dry
• Built-in WiFi Connect
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes
Wi-Fi
Yes
Additional Information
• Motor Type: Variable Speed, BLDC

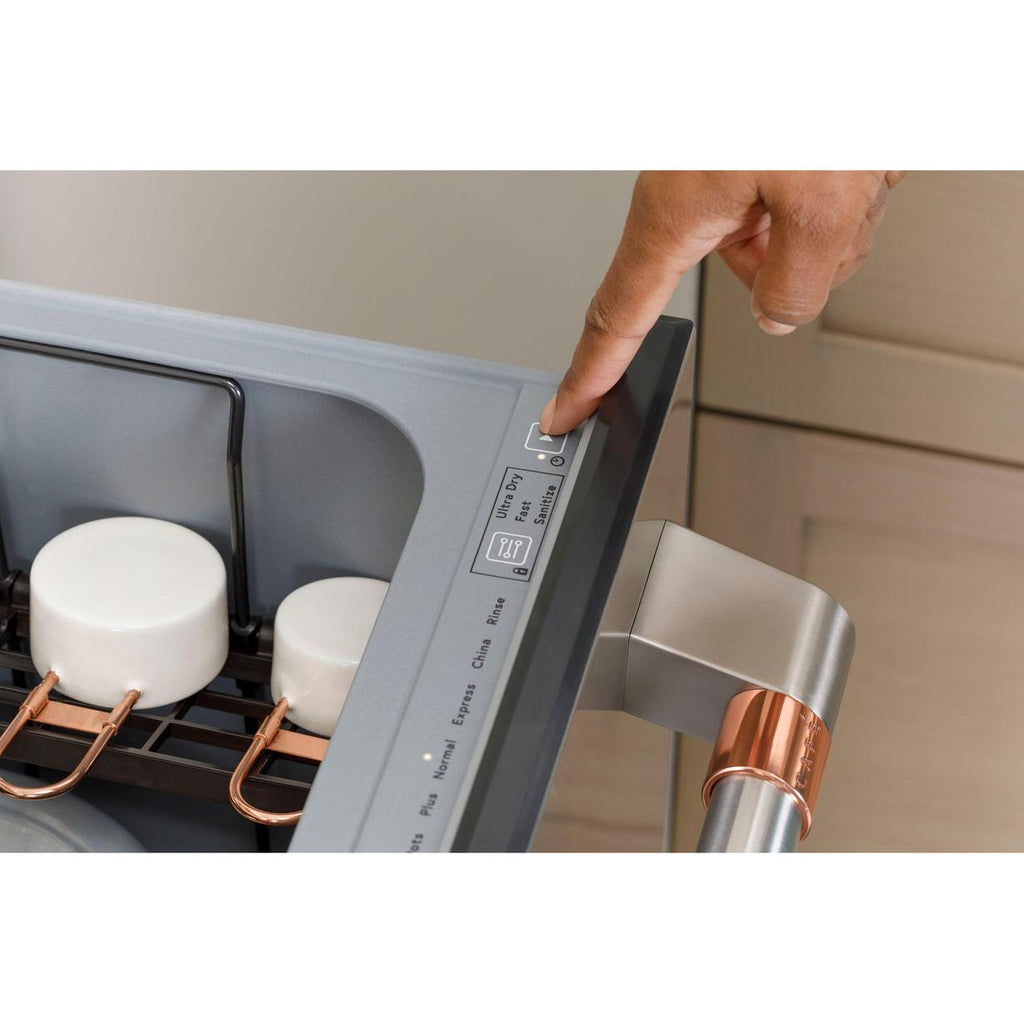

• Control Type: Top Controls, Cap Touch Controls, 3 Touchpads
• Dishwasher Control Features: Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
• Dispenser: Rinse Aid

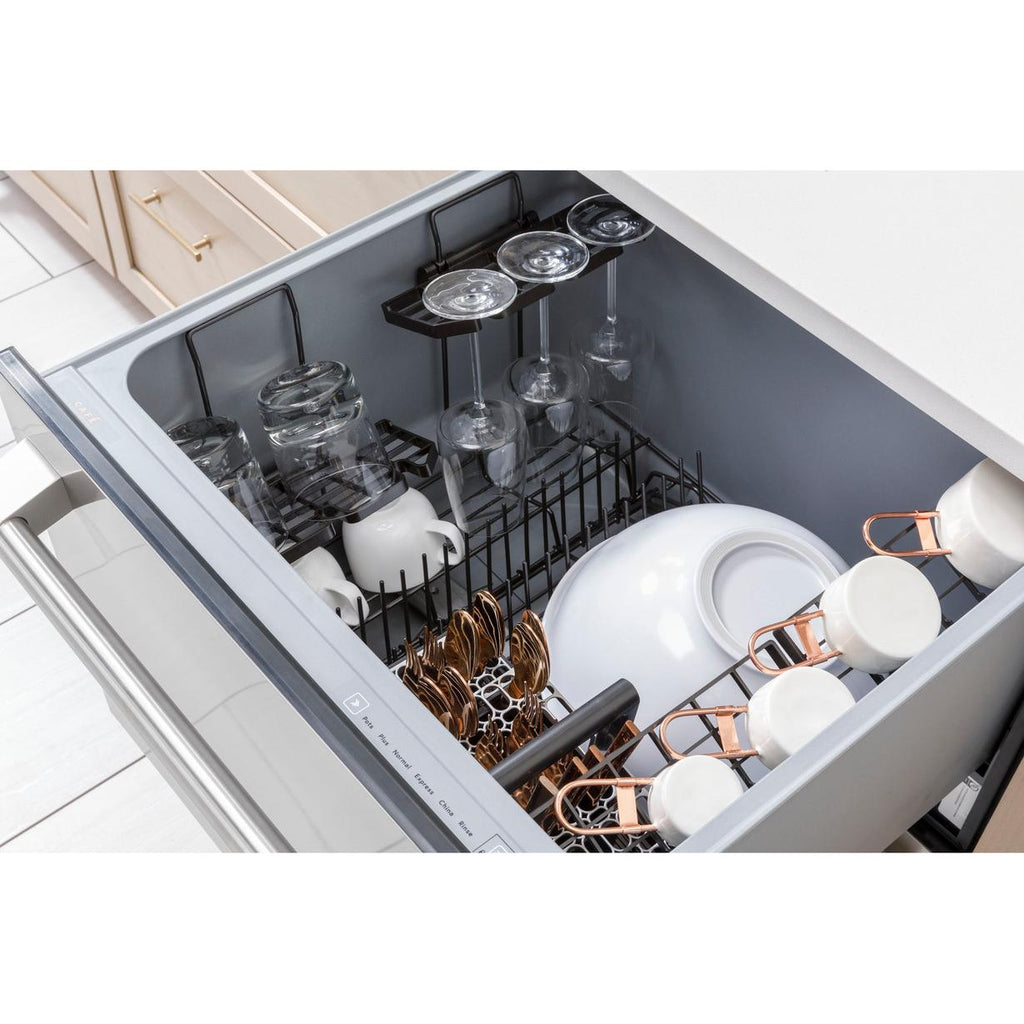

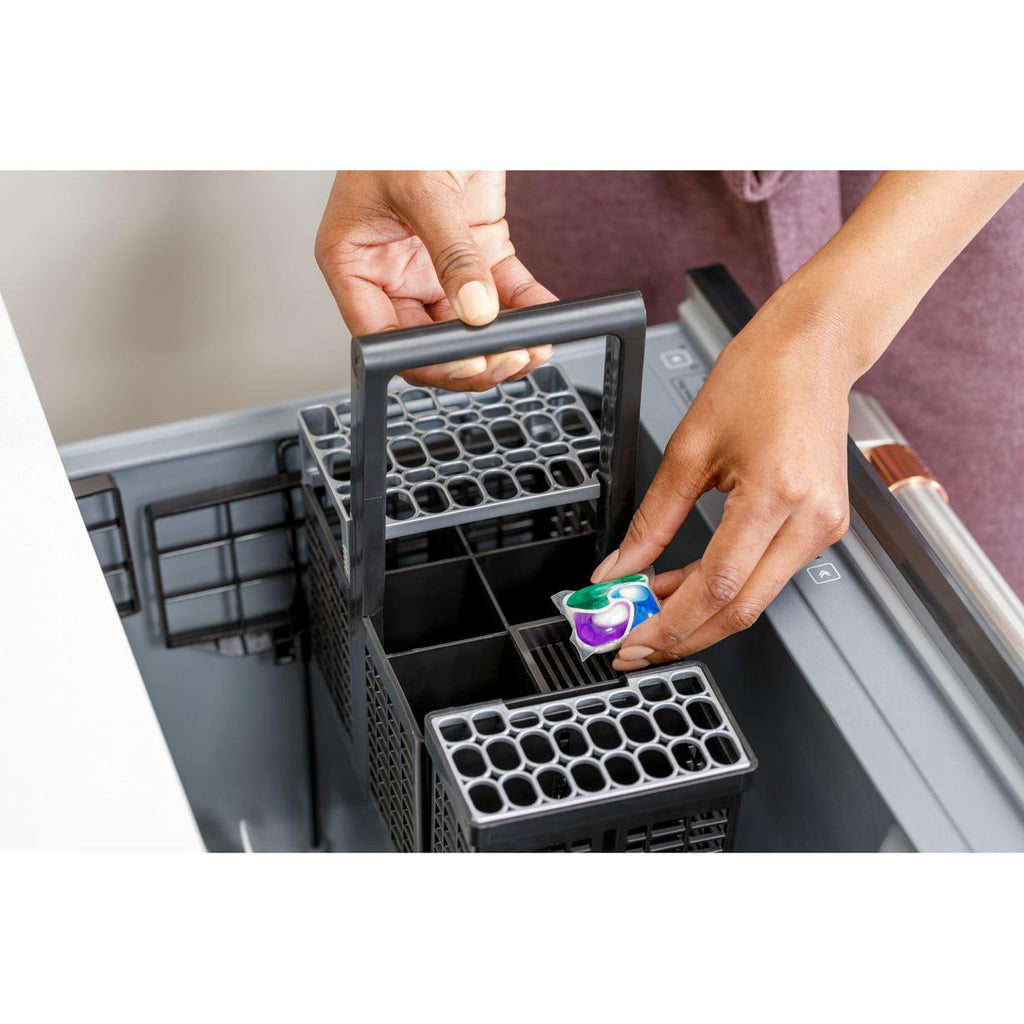

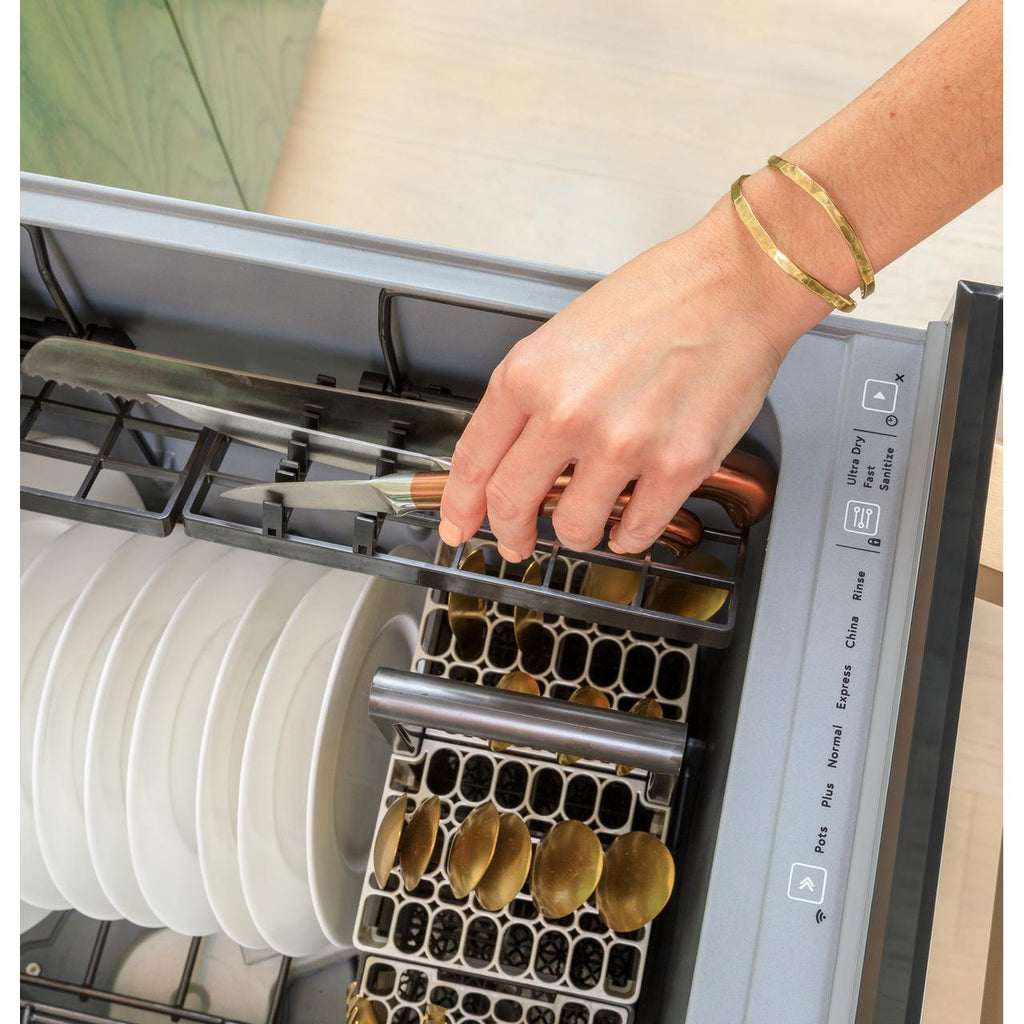

• Rack Features: Ball-Tipped Tines, Full Extension Slides, 2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket
• Racking Material: Nylon

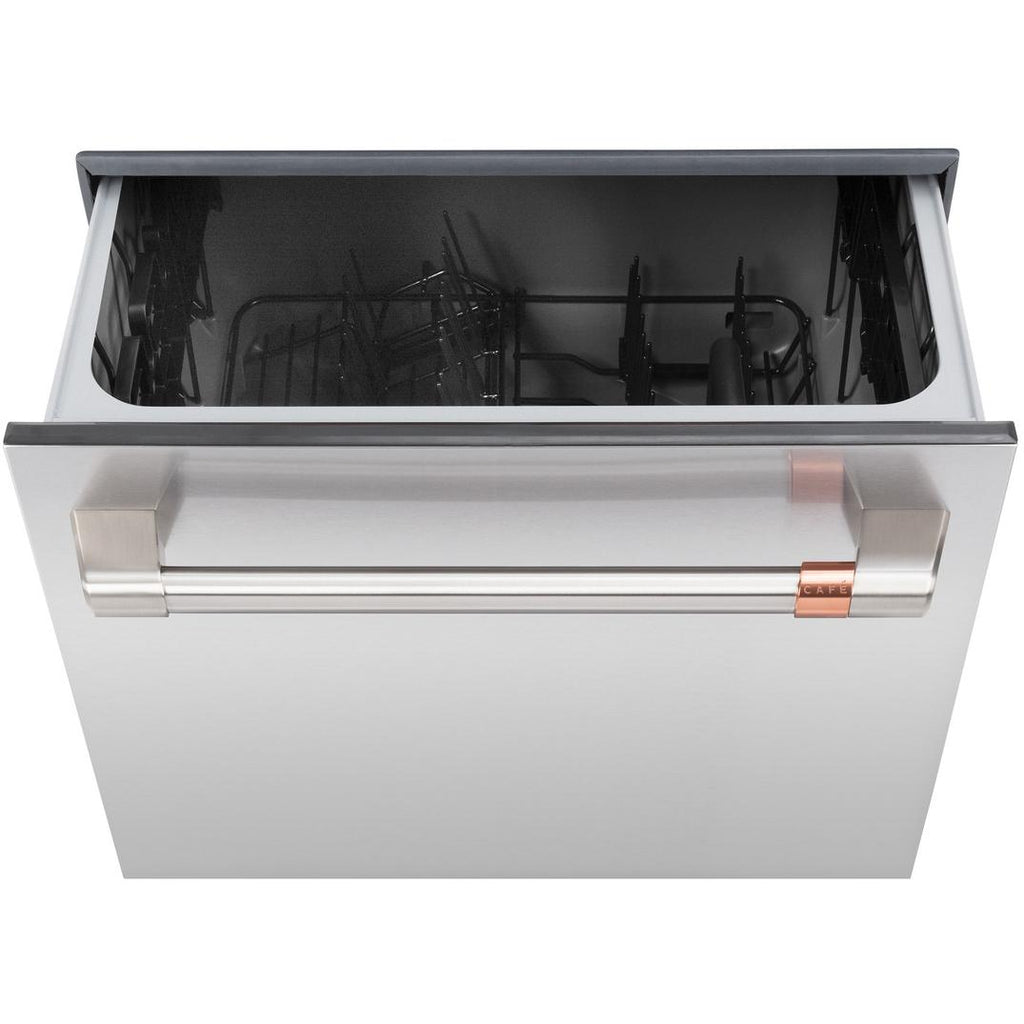

• Racking System: 1 Racks with 2 sets of Cup Shelves
• Upper Drawer: Large, 2 Utility Shelves with StemSafe, Fold Down Tines, Silverware Basket with cell covers, Upper drawer fits 13 inch plates
• Wash Arms: 1
• Wash System: 1 independent wash system
• Wash System Features: Single pump; Water and Prime regulator for efficency, Automatic HotStart, Automatic Temperature Control
• 100% Filtration
• Control Type: Top Controls, Cap Touch Controls, 3 Touchpads
• Dishwasher Control Features: Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
• Dispenser: Rinse Aid
• Rack Features: Ball-Tipped Tines, Full Extension Slides, 2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket
• Racking Material: Nylon
• Racking System: 1 Racks with 2 sets of Cup Shelves
• Upper Drawer: Large, 2 Utility Shelves with StemSafe, Fold Down Tines, Silverware Basket with cell covers, Upper drawer fits 13 inch plates
• Wash Arms: 1
• Wash System: 1 independent wash system
• Wash System Features: Single pump; Water and Prime regulator for efficency, Automatic HotStart, Automatic Temperature Control
• 100% Filtration
Electrical Information
Information
• 120 V
• 60 Hz
• 4.7 A
• 60 Hz
• 4.7 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
• Non-Wood Countertop Kit: GPF65
• CXADTH1PMBT - Brushed Black
• CXADTH1PMBZ - Brushed Bronze
• CXADTH1PMCU - Brushed Copper
• CXADTH1PMSS - Brushed Stainless
• CXADTH1PMCG - Brushed Brass
• CXADTH1PMFB - Flat Black
• CXADTH1PMBT - Brushed Black
• CXADTH1PMBZ - Brushed Bronze
• CXADTH1PMCU - Brushed Copper
• CXADTH1PMSS - Brushed Stainless
• CXADTH1PMCG - Brushed Brass
• CXADTH1PMFB - Flat Black
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height (Min.)
17.81 inch(es) / 45.24 cm
Depth (Without Handle)
25.18 inch(es) / 63.97 cm
Depth (Including Handle)
25.19 inch(es) / 63.98 cm
Weight
50 lb(s) / 22.68 kg
Shipping Dimensions
Width
27 inch(es) / 68.58 cm
Height
21 inch(es) / 53.34 cm
Depth
28 inch(es) / 71.12 cm
Weight
50 lb(s) / 22.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691943730
