Features
A SMARTER CLEAN WITH PRECISIONWASH®
With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.

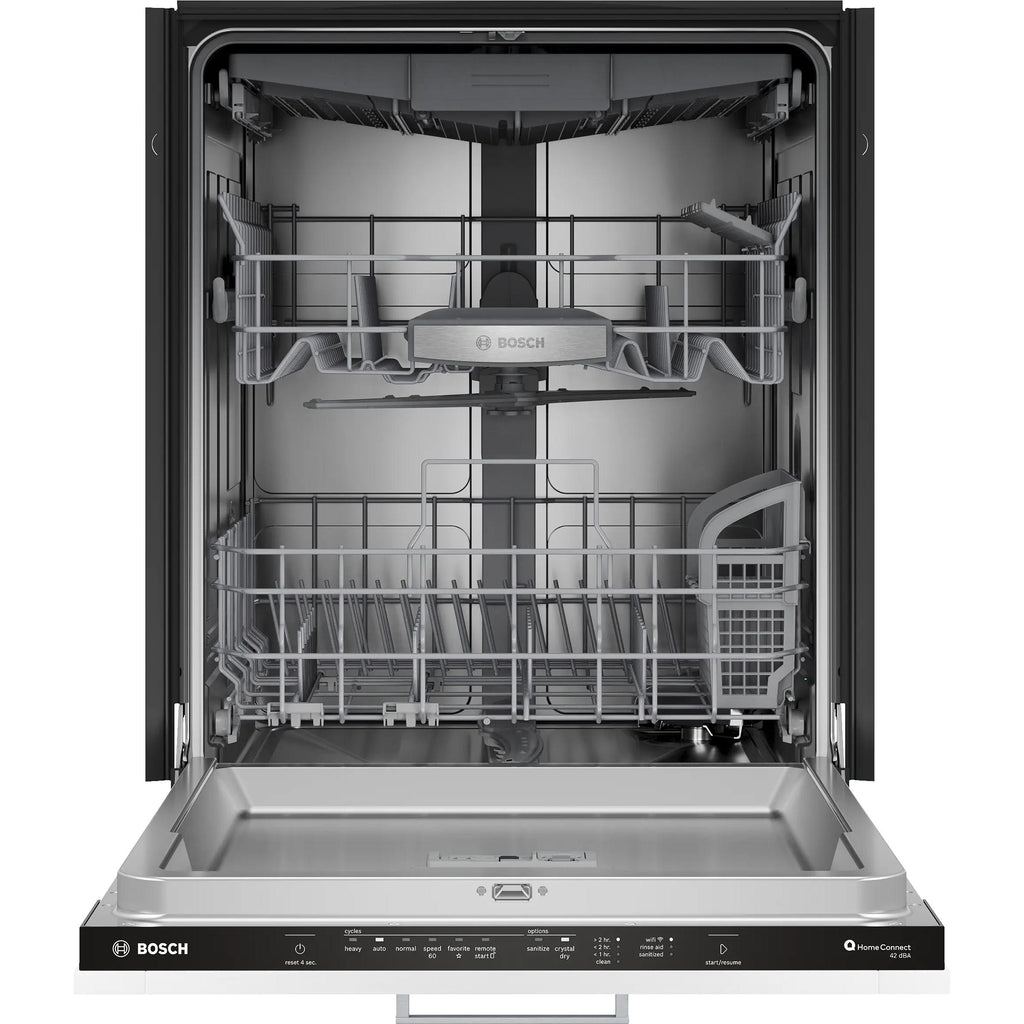

BEAUTIFUL STAINLESS STEEL INTERIOR
Bosch uses quality materials that deliver excellent performance and are built to last.
PREVENT LEAKS WITH AQUASTOP®
An advanced leak prevention and containment system, AquaStop® features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected—even if you’re not at home.
CRYSTALDRY™
Patented CrystalDry™ technology transforms moisture into heat up to 176°F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished.
*Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.
*Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.

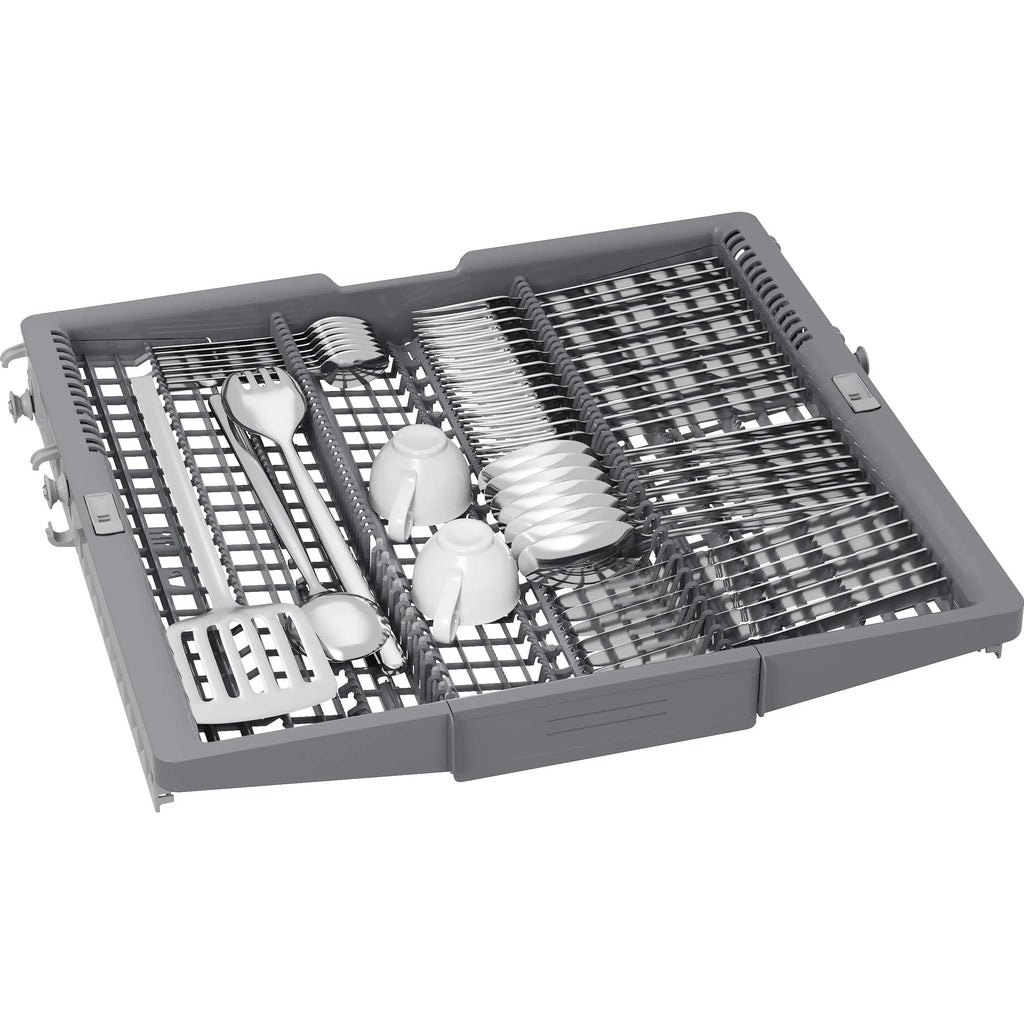

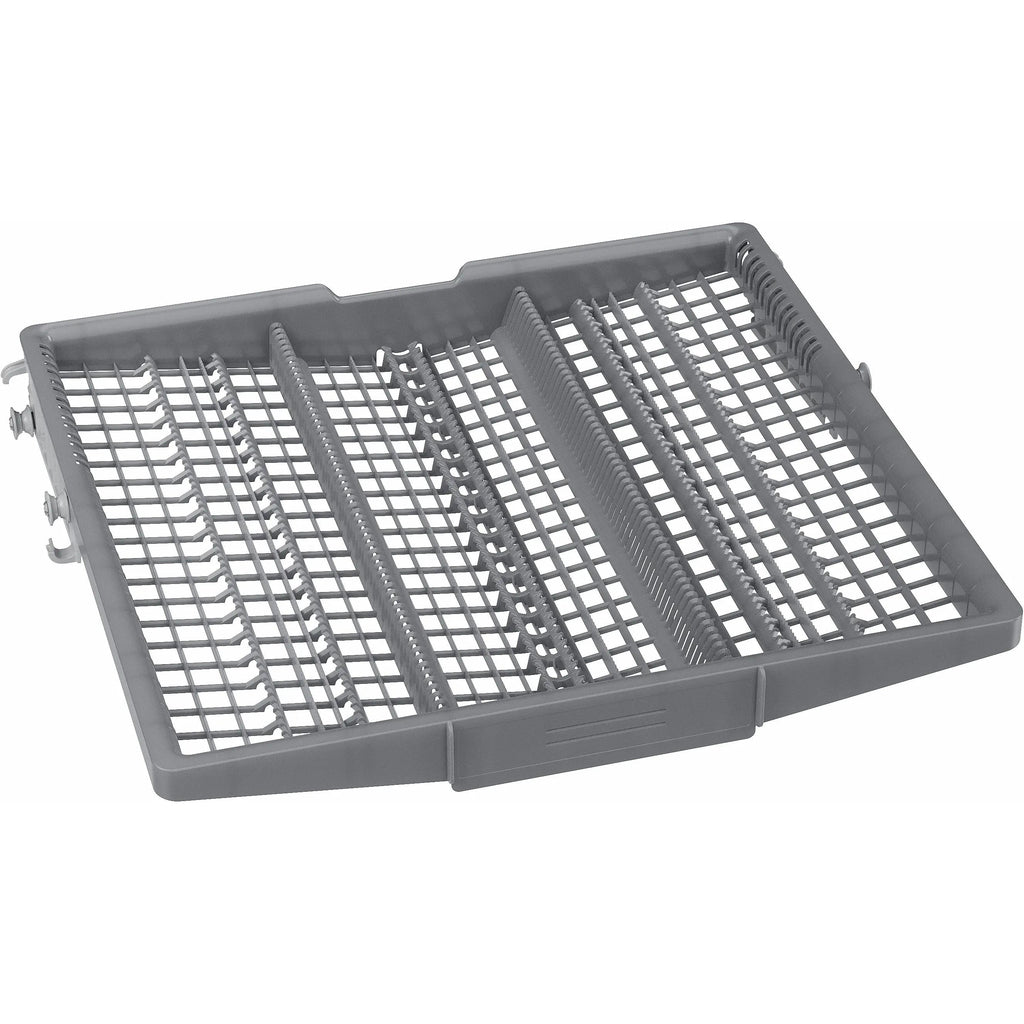

FLEXIBLE 3RD RACK
The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile, adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.
QUALITY IN EVERY DETAIL.
Every dishwasher must pass 485 quality checks--including running every single one with water--before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.
FIT IN TALL ITEMS WITH RACKMATIC®

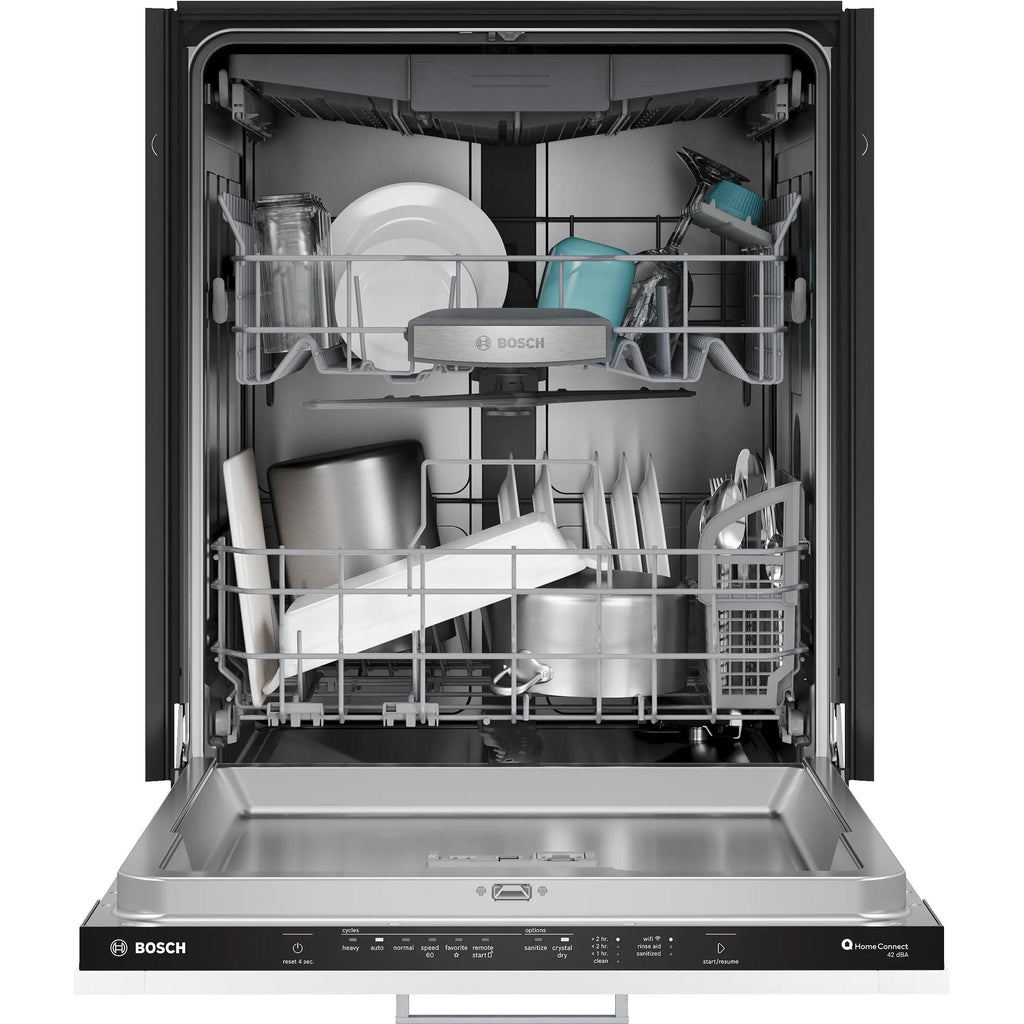

RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
REDESIGNED EASYGLIDE™ RACK SYSTEM
The EasyGlide™ rack system is redesigned to give you a smooth glide on all three racks—even when it’s fully loaded.

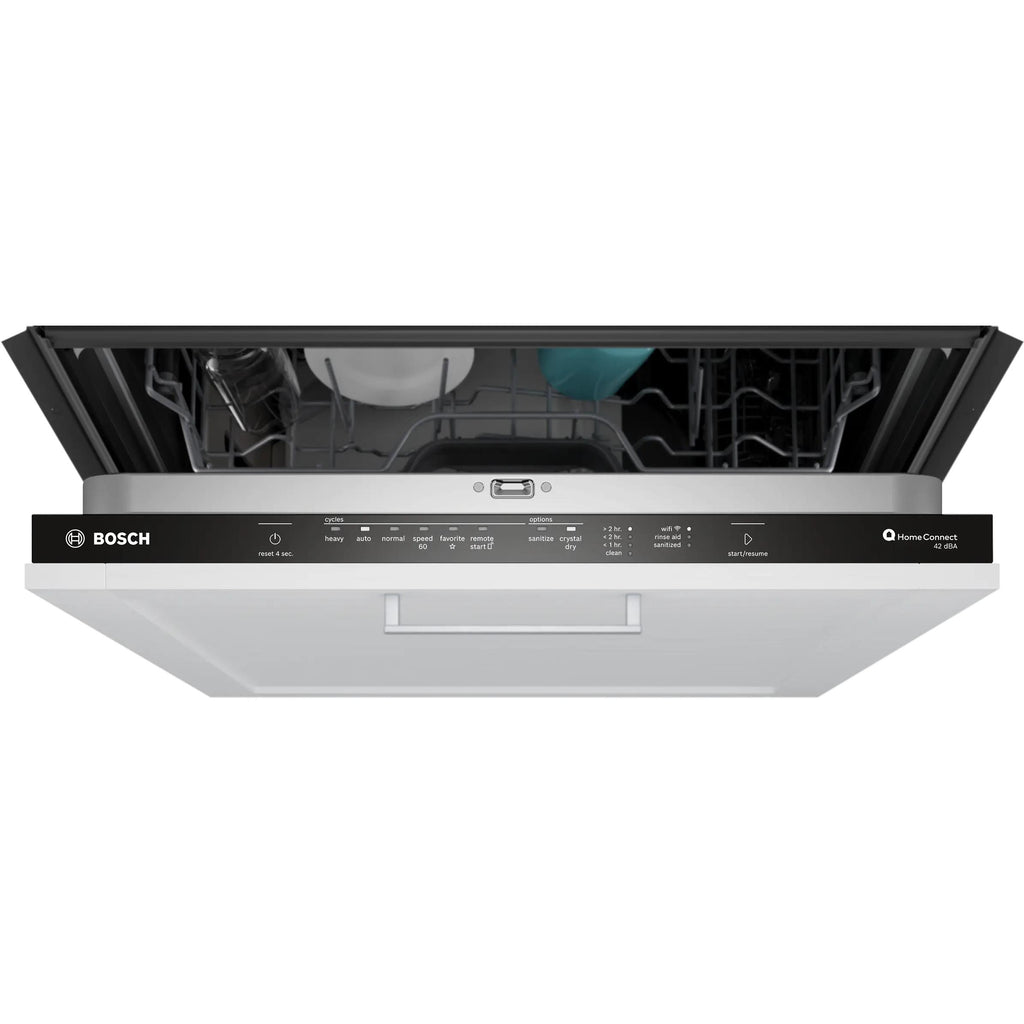

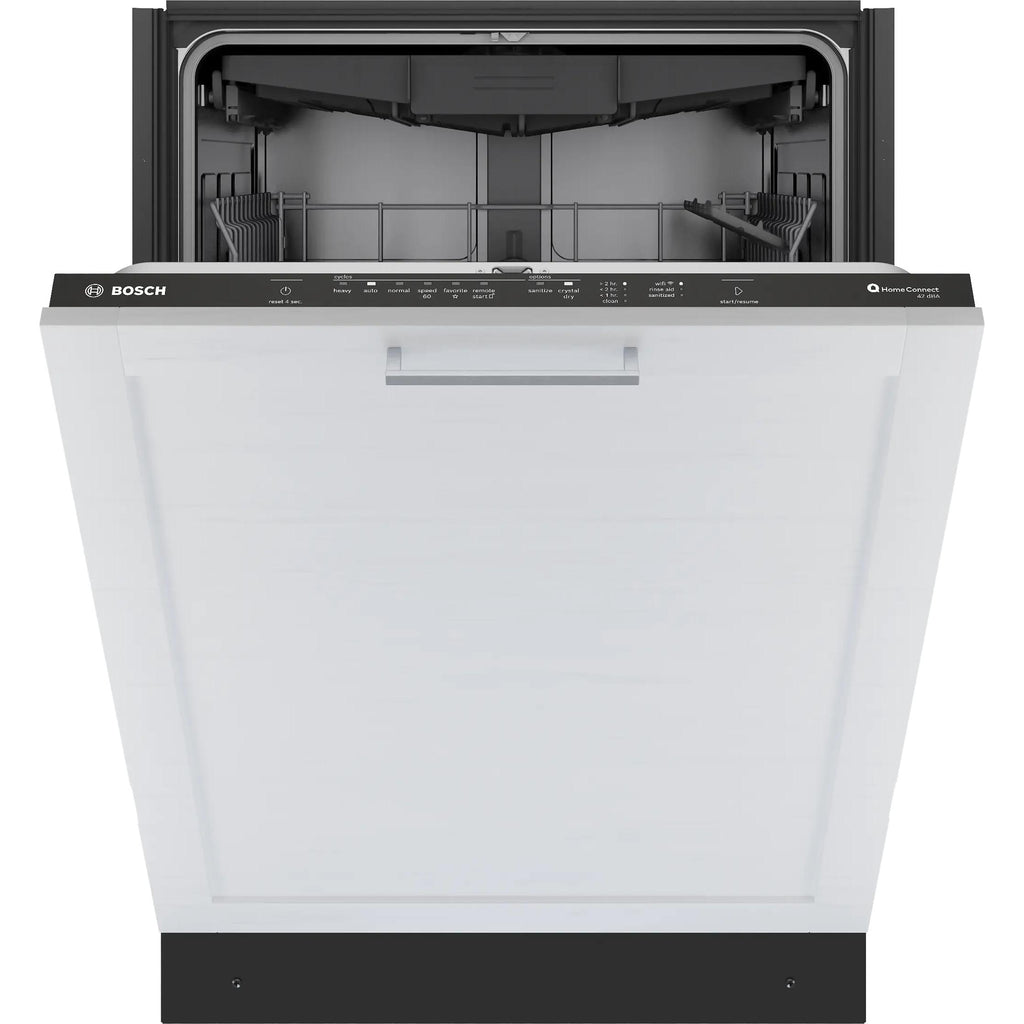

SLEEK AND SIMPLE TOUCH CONTROL PANEL
The touch control panel has been simplified to offer the cycles and options you use most - all at the touch of your fingertips.
Additional Features
HOME CONNECT™.
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
EASYGLIDE™ RACK
EasyGlide™ rack provides a smooth glide for easier loading and unloading.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Heavy
• Auto
• Normal
• Speed60 (1hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Delicate
• Rinse
• MachineCare
• Auto
• Normal
• Speed60 (1hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Delicate
• Rinse
• MachineCare
Options
• Sanitize
• Remote Start
• Crystal Dry
Additional options (in Home Connect®):
• Half Load
• Eco
• Remote Start
• Crystal Dry
Additional options (in Home Connect®):
• Half Load
• Eco
Features
Technologies
• Home Connect™ (Wi-Fi enabled)
• 24/7 AquaStop® Plus
• CrystalDry™
• PrecisionWash®
• RackMatic®
• InfoLight®
• 24/7 AquaStop® Plus
• CrystalDry™
• PrecisionWash®
• RackMatic®
• InfoLight®
3rd Rack System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 gal
• Total annual energy consumption: 240 kWh
• Adjustable feet
• Five-level wash
• Water usage per cycle: 3.2 gal
• Total annual energy consumption: 240 kWh
• Adjustable feet
Electrical Information
Information
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Supply Hose Kit with Elbow: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Supply Hose Kit with Elbow: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Height (Min.)
33.88 inch(es) / 86.06 cm
Depth (Without Handle)
23.06 inch(es) / 58.57 cm
Weight
92.99 lb(s) / 42.18 kg
Additional Dimensions
Power cord install length from the edge of the unit when facing the door:
• Left – 45"
• Right – 56"
• Power cord full length: 67"
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 78 3/4"
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Left – 45"
• Right – 56"
• Power cord full length: 67"
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 78 3/4"
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
