Features
A SMARTER CLEAN WITH PRECISIONWASH®
With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
NOT JUST DRY, BUT PUREDRY®
PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.

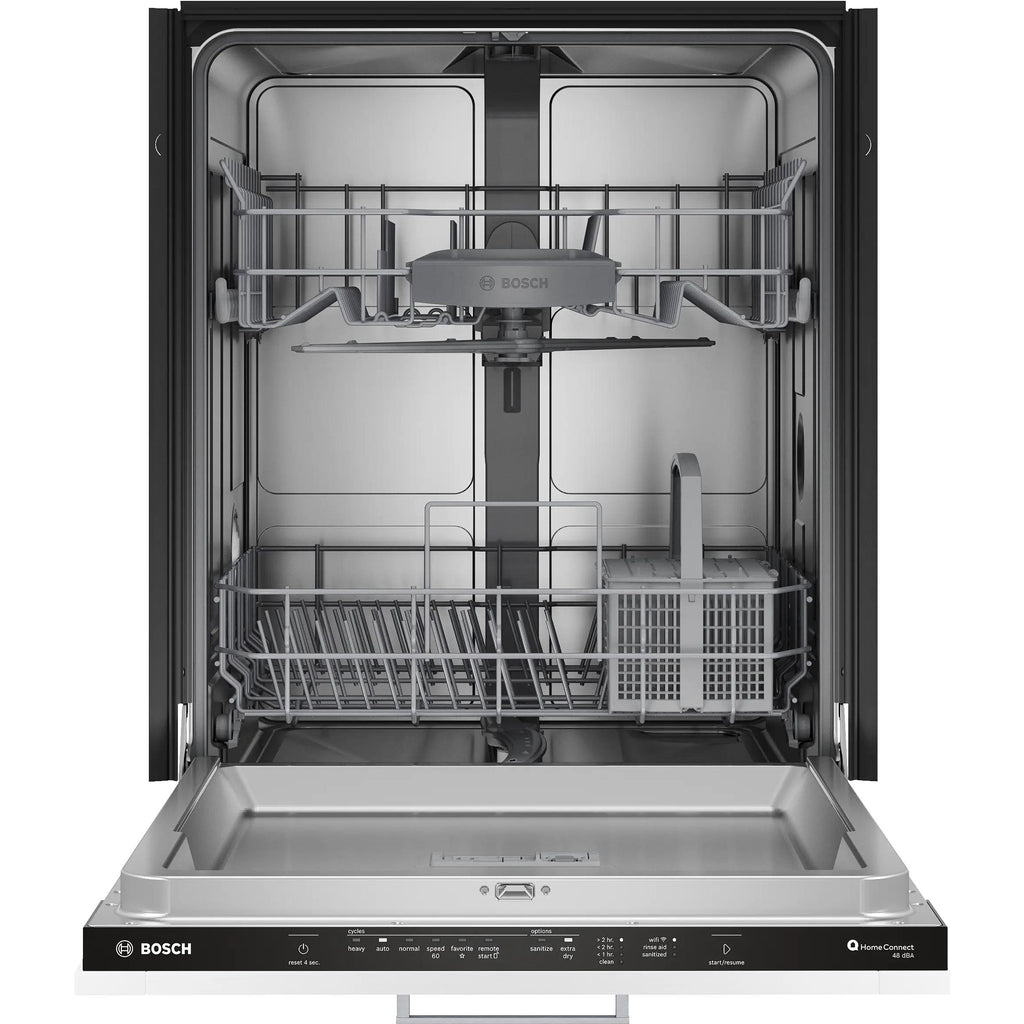

BEAUTIFUL STAINLESS STEEL INTERIOR
Bosch uses quality materials that deliver excellent performance and are built to last.
PREVENT LEAKS WITH AQUASTOP®
An advanced leak prevention and containment system, AquaStop® features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected—even if you’re not at home.
Additional Features
HOME CONNECT™.
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
Specifications
General
Series Name
100 Series
Type
Built-In
Color

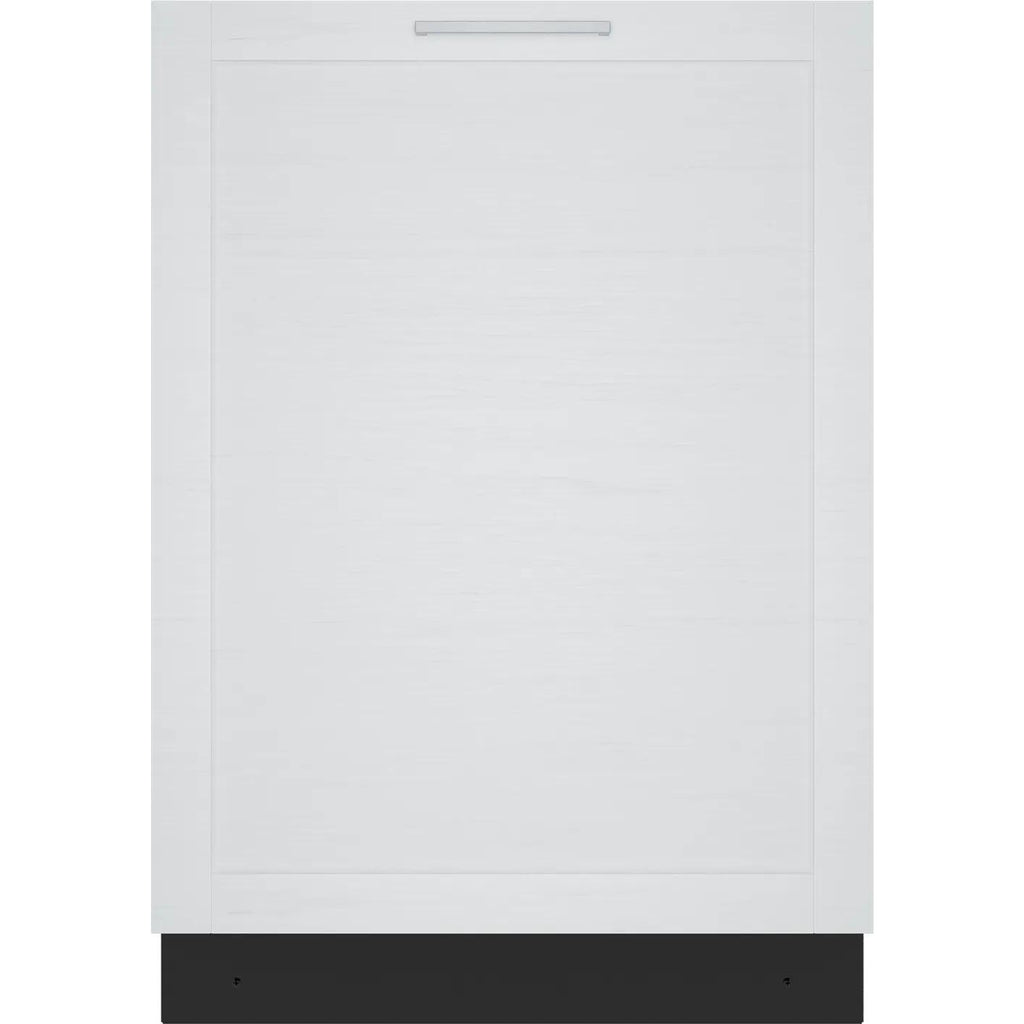

Panel Ready
Manufacturer Color
Panel Ready
Place Settings
12
Tub Material
Stainless Steel
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Heavy
• Auto
• Normal
• Speed60 (1hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Delicate
• Rinse
• MachineCare
• Auto
• Normal
• Speed60 (1hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Delicate
• Rinse
• MachineCare
Options
• Sanitize
• Remote Start
• Extra Dry
Additional options (in Home Connect®):
• Half Load
• Eco
• Remote Start
• Extra Dry
Additional options (in Home Connect®):
• Half Load
• Eco
Features
Technologies
• Home Connect™ (Wi-Fi enabled)
• 24/7 AquaStop® Plus
• PureDry®
• PrecisionWash®
• 24/7 AquaStop® Plus
• PureDry®
• PrecisionWash®
3rd Rack System
Yes

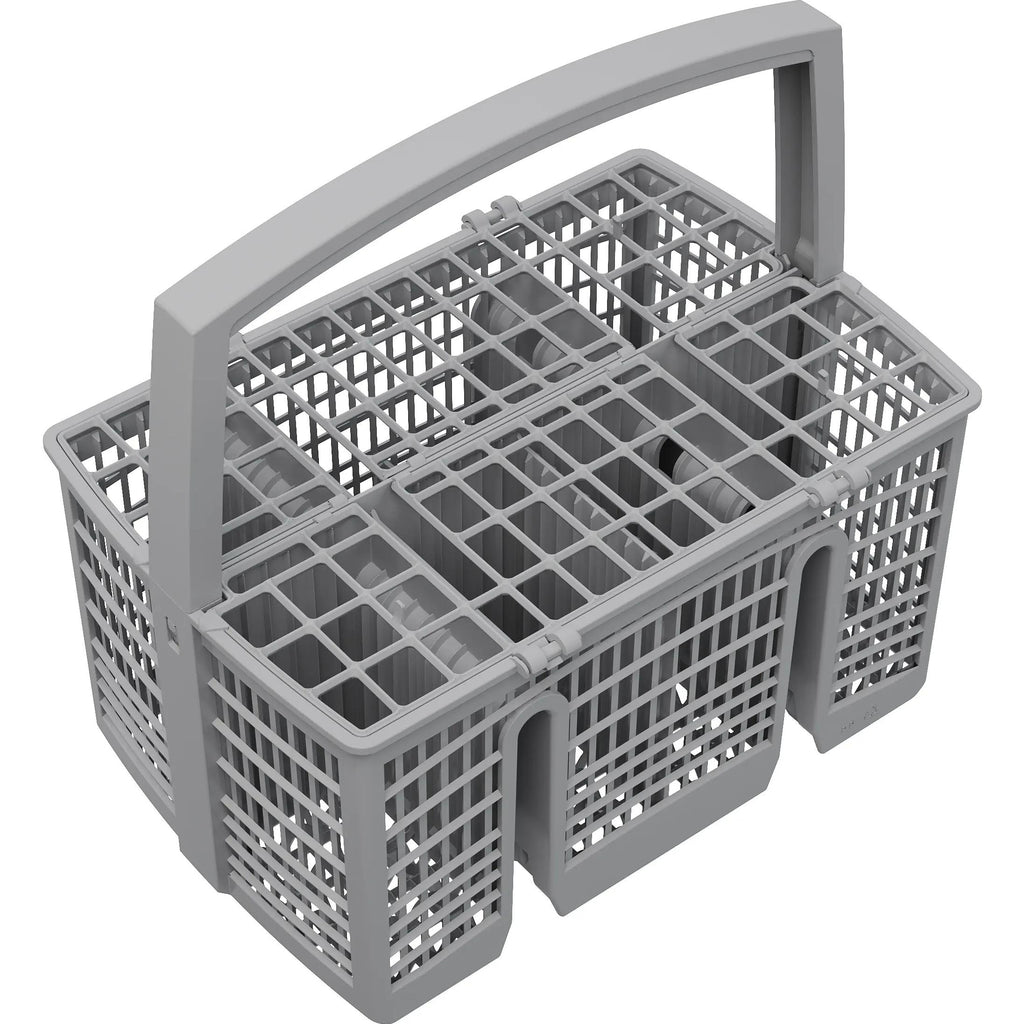

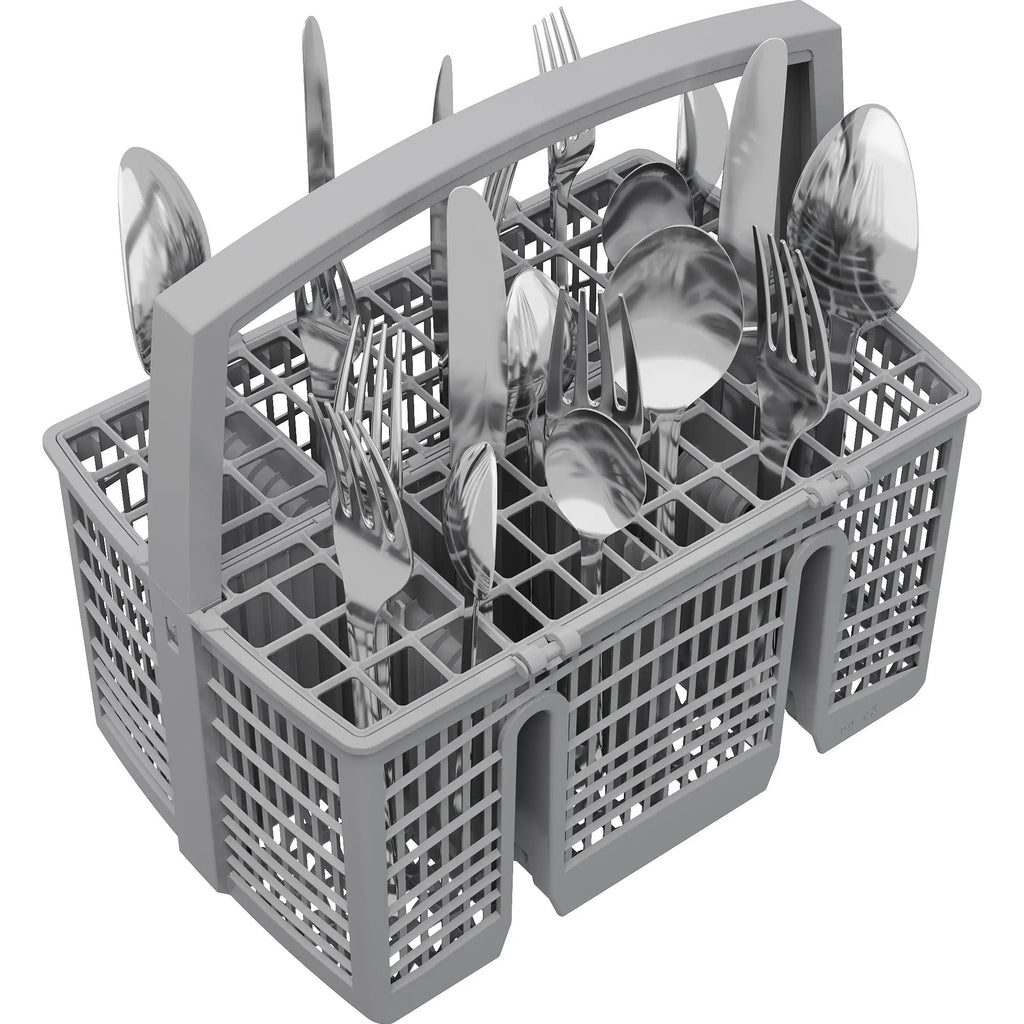

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Concealed water heating element
• Five-level wash
• InfoLight®
• Water usage per cycle: 3.2 gal
• Total annual energy consumption: 240 kWh
• Adjustable feet
• Five-level wash
• InfoLight®
• Water usage per cycle: 3.2 gal
• Total annual energy consumption: 240 kWh
• Adjustable feet
Electrical Information
Information
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Stainless Steel Bar Handle: SMZ1008UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Stainless Steel Bar Handle: SMZ1008UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Height (Min.)
33.88 inch(es) / 86.06 cm
Depth (Without Handle)
23.06 inch(es) / 58.57 cm
Weight
78 lb(s) / 35.38 kg
Additional Dimensions
Power cord install length from the edge of the unit when facing the door:
• Left – 45"
• Right – 56"
• Power cord full length 67"
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 78 3/4"
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Left – 45"
• Right – 56"
• Power cord full length 67"
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 78 3/4"
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
