Features
A SMARTER CLEAN WITH PRECISIONWASH®.
With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
NOT JUST DRY, BUT PUREDRY®.
PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
FIT IN TALL ITEMS WITH RACKMATIC®
RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

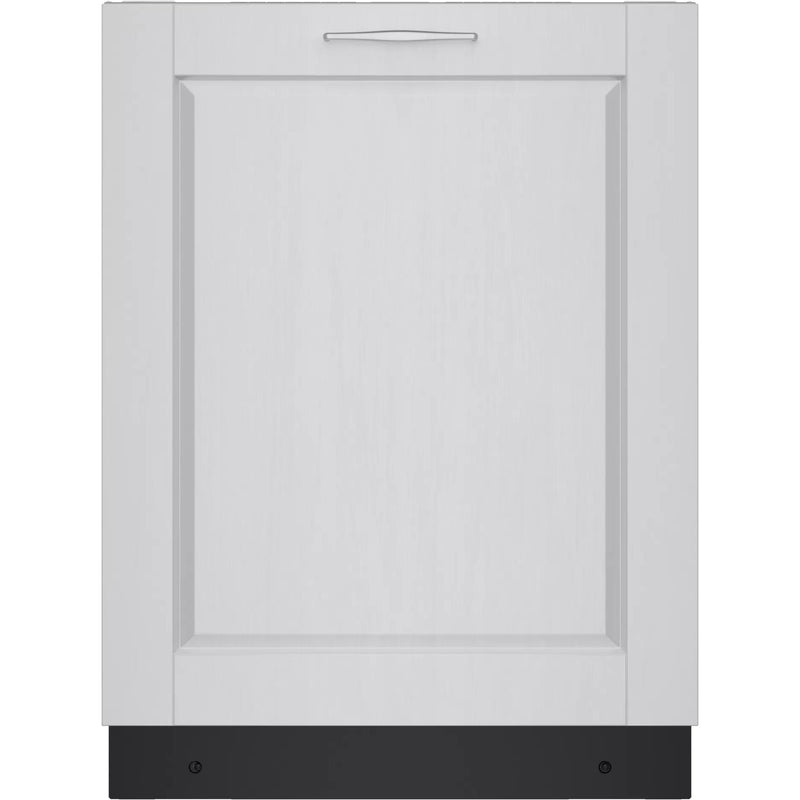

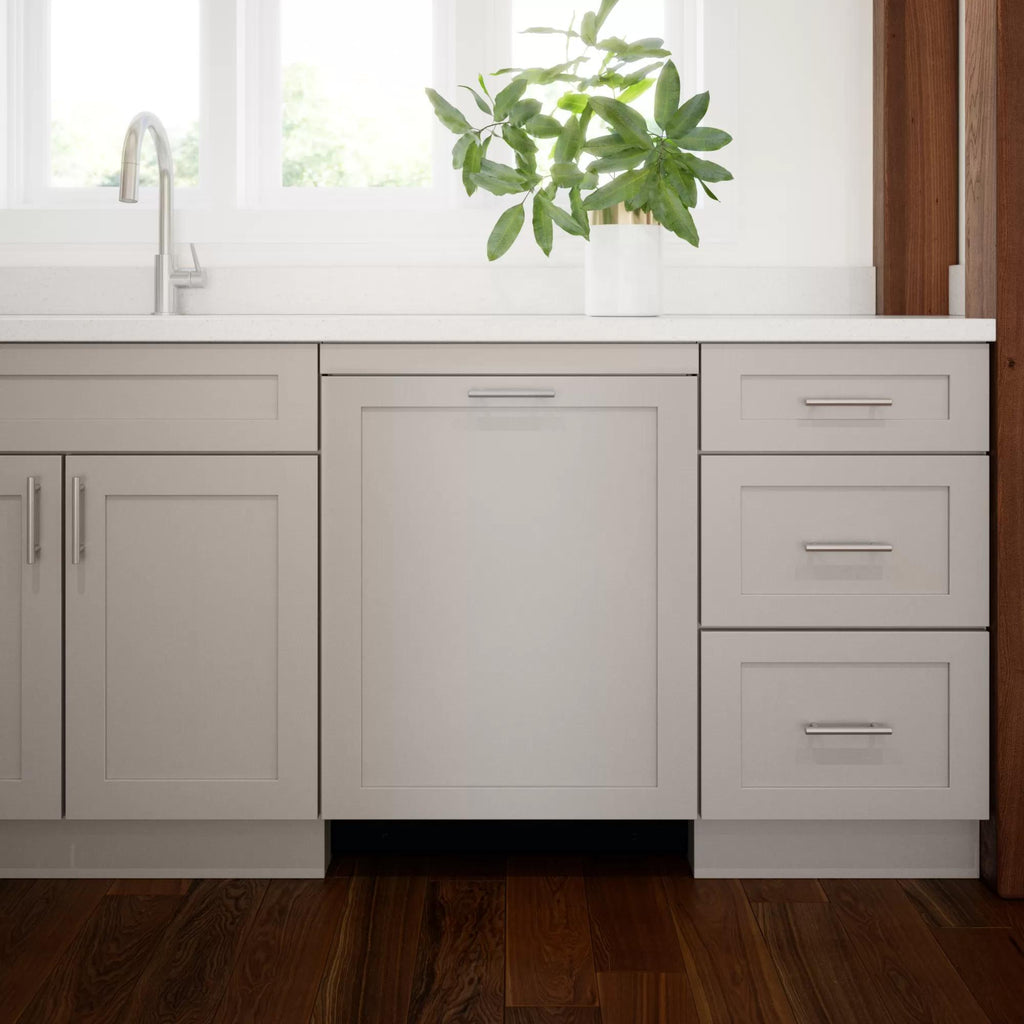

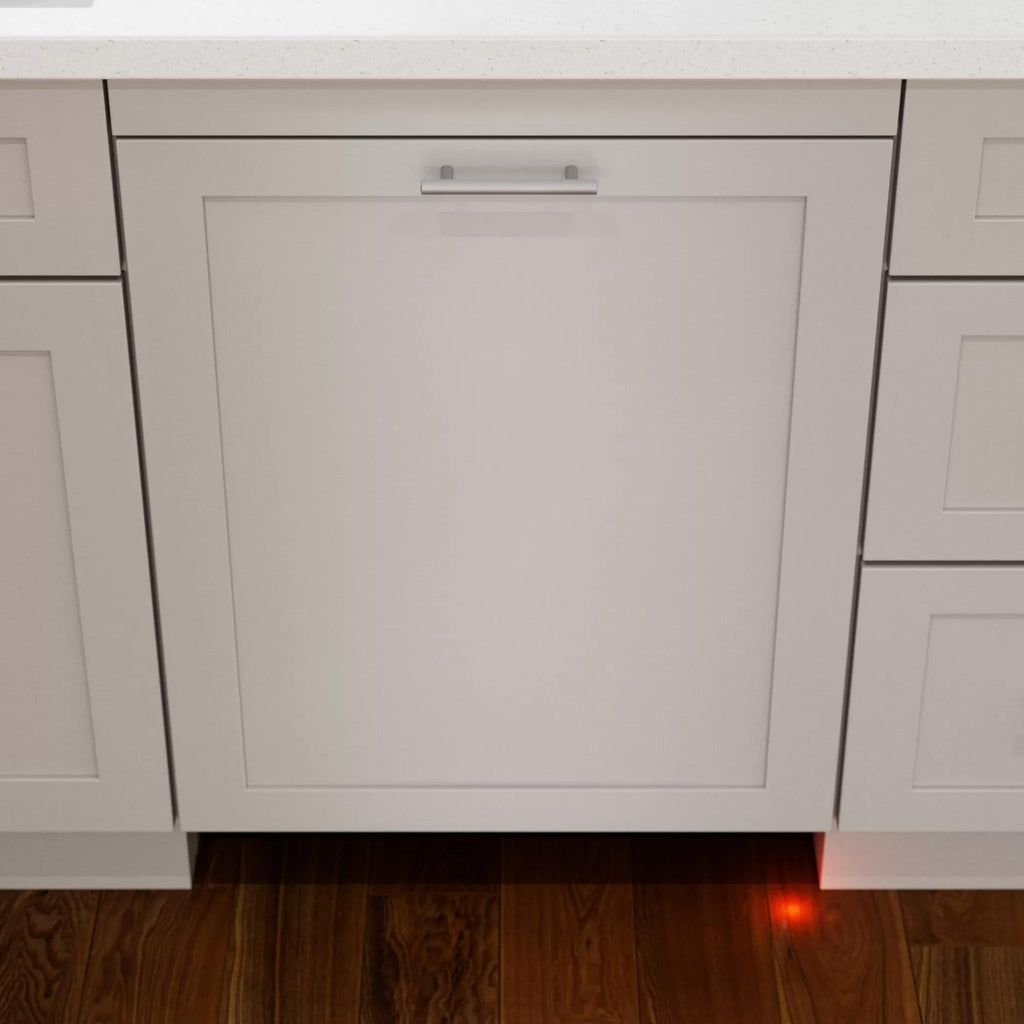

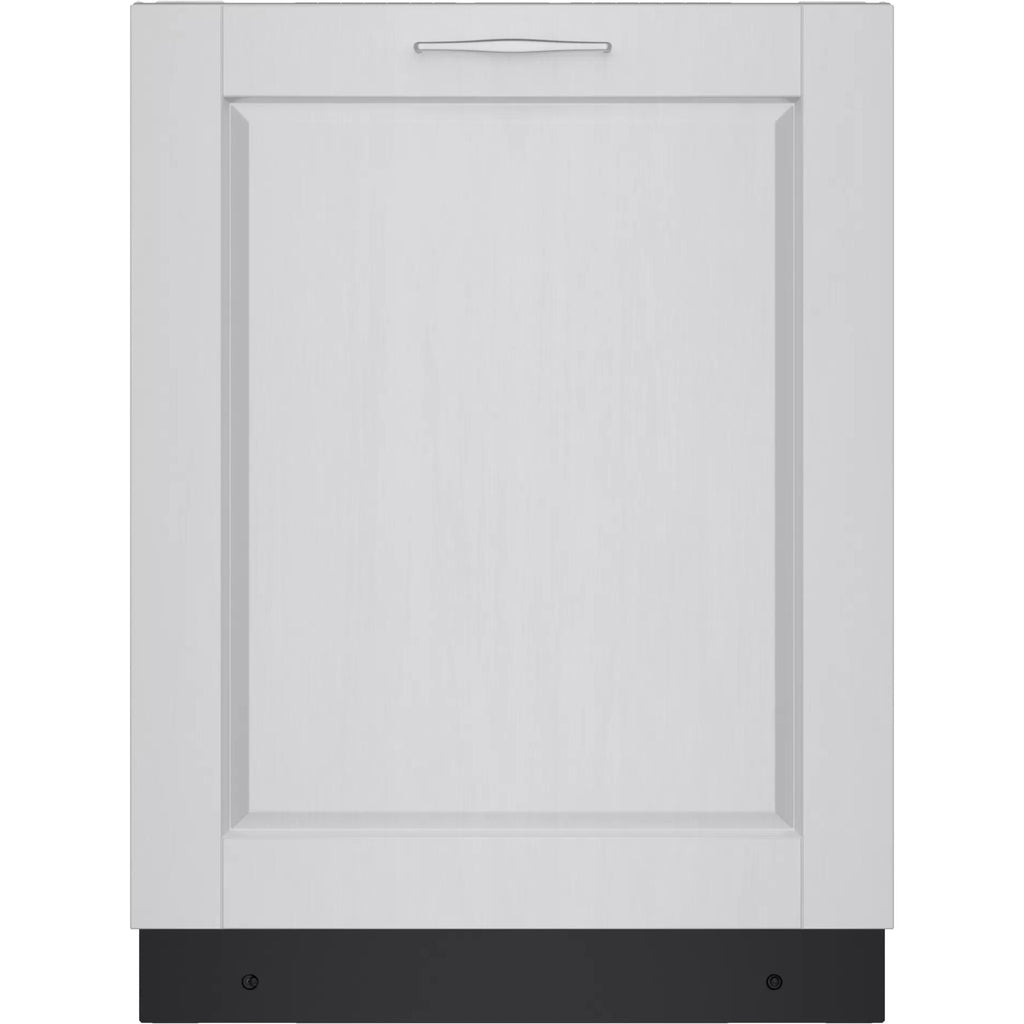

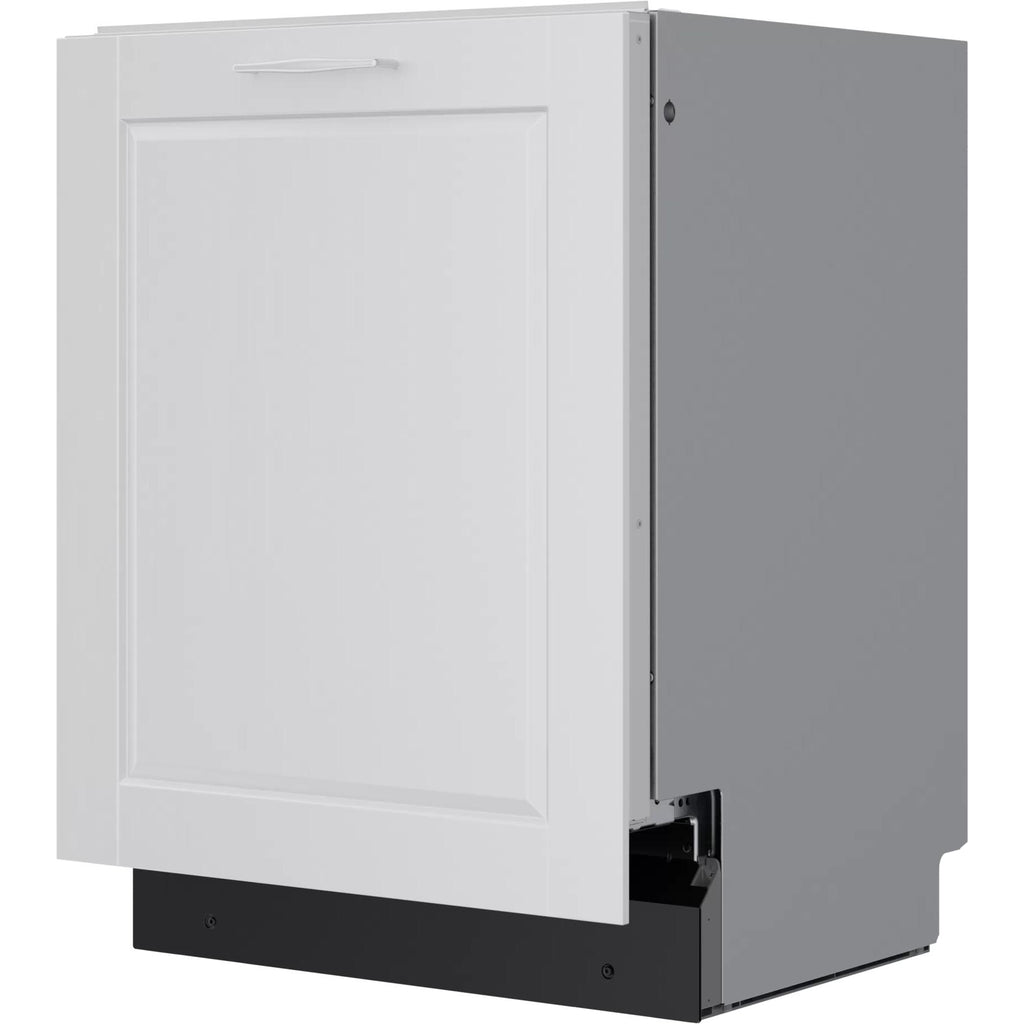

CUSTOM PANEL DISHWASHERS
Seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry. The unique design allows for a fully flush install for a refined level of sophistication. For installation instructions, please refer to the supplemental under the 'manuals' tab.
Specifications
General
Series Name
300 Series
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
13
Tub Material
Stainless Steel
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Options
5
Features
Technologies
• PrecisionWash® Wash System
• PureDry Drying System
• 3-step RackMatic®
• 24/7 AquaStop® Plus Leak Protection System
• Home Connect™ (Wi-Fi Enabled)
• PureDry Drying System
• 3-step RackMatic®
• 24/7 AquaStop® Plus Leak Protection System
• Home Connect™ (Wi-Fi Enabled)
Delay Start Information
24 Hours
Delay Start
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Special Program: Machine Care
• Concealed Water Heating Element
• Water Softener
• Five-Level Wash
• Concealed Water Heating Element
• Water Softener
• Five-Level Wash
Electrical Information
Information
• 240 kWh/Y
• 1440 W
• 12 A
• 120 V
• 60 Hz
• 1440 W
• 12 A
• 120 V
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
32.09 inch(es) / 81.5 cm
Depth (Without Handle)
21.65 inch(es) / 55.0 cm
Weight
83 lb(s) / 37.65 kg
Additional Dimensions
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 7 lb/sin
• Length inlet hose: 65"
• Length outlet hose: 74 3/4"
• Required cutout size (HxWxD): 32 1/8" x 24" x 24"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 7 lb/sin
• Length inlet hose: 65"
• Length outlet hose: 74 3/4"
• Required cutout size (HxWxD): 32 1/8" x 24" x 24"
Warranty
Warranty
• Limited warranty, entire appliance, parts and labor (1 year)
• Limited warranty for microprocessor or printed circuit board; parts only (2nd to 5th year)
• Limited warranty for racks (does not include rack components); parts only (2nd to 5th year)
• Limited warranty for rust-through on inner tub liner; parts only (Lifetime)
• Limited warranty for microprocessor or printed circuit board; parts only (2nd to 5th year)
• Limited warranty for racks (does not include rack components); parts only (2nd to 5th year)
• Limited warranty for rust-through on inner tub liner; parts only (Lifetime)
